32 NFS2-3030 Programming Manual — P/N 52545:K1 03/20/2012
Program Panel Program

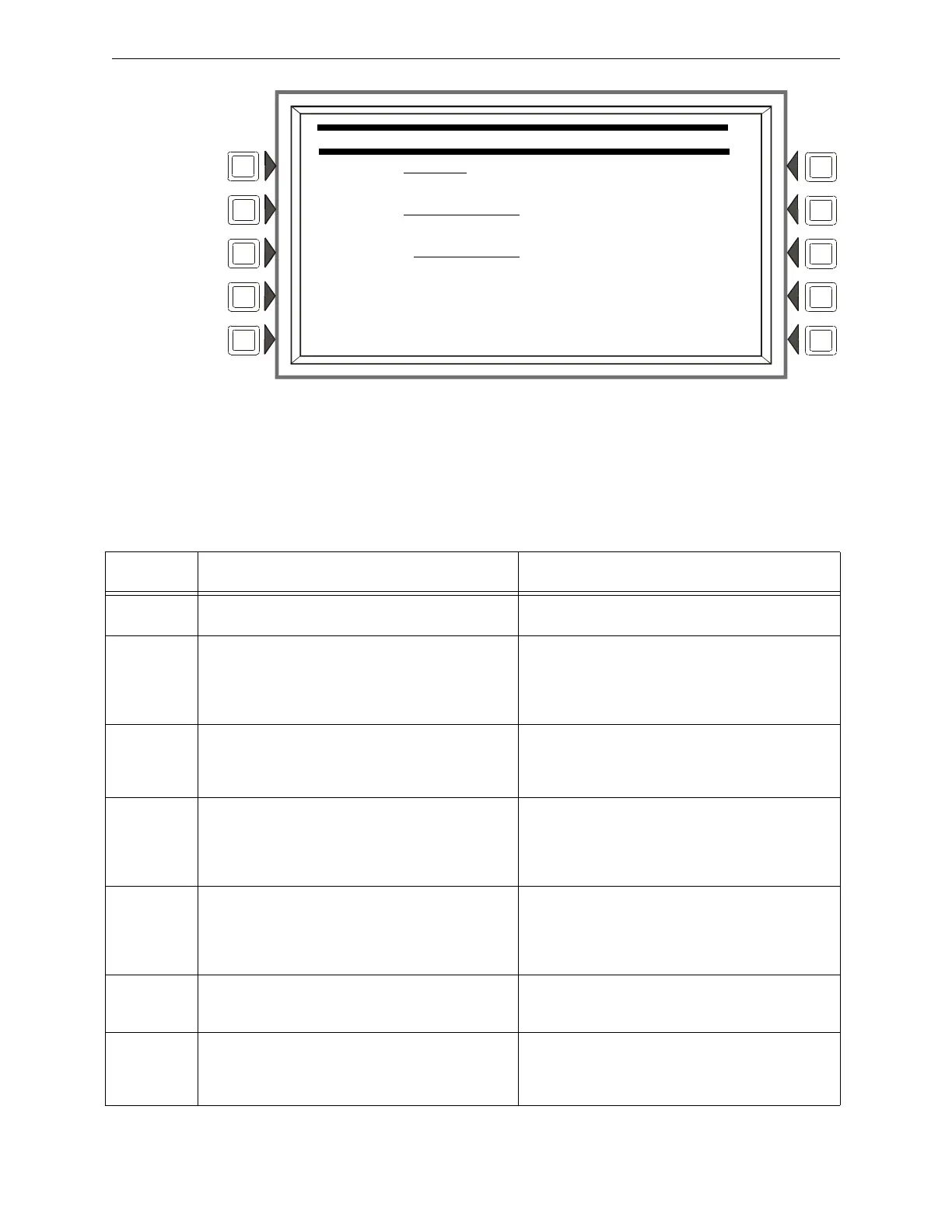

Figure 3.18 Sample ACS Point Programming Screen
Soft Keys
POINT: Press this soft key to enter the ACS point number
. The format is AxxPyy, where A is the two-
digit device address, P is the two-digit point number. Enter a leading zero for one-digit numbers.
MODE: Press this
soft key to enter the ACS mapping mode. Table 3.5 shows the possible mode
choices and descriptions of their functions.
ACS POINT PROGRAMMING
POINT: A27P04
MODE: MONITOR
SOURCE: N23L01M037 (MODULE)
NEXT ACCEPT
PREVIOUS BACK
ACS Point
Mode
Function:
The point…
Explanation
NONE … is not programmed. No messages are sent from or received at this point.
LED
s
at this point do not light.
CONTROL … will change the state of up to eight control modules
OR
(for NFS2-3030 only) up to eight general zones to off
or on when its button is pushed.
Selecting this point mode will bring up the Control Point
Select scr
een (r
efer to Figure 3.19).
The Point Active LED is lit if a corresponding mapped
point is active. The S
tatus (trouble) LED is on when a
point or zone is in trouble.
MONITOR … will show the current status of a specified point or
zone
.
The Point Active LED is lit if the corresponding mapped
point or zone is active. The Status (trouble) LED is on if
that point or zone is in trouble. If the point has a button, it
has no effect when pushed.
TELEPHONE … supports telephone functionality when mapped to a
telephone
point. Press the button to connect the mapped
point with the telephone station.
Both the Point Active LED and the Status (trouble) LED will
flash if a telephone has been placed in the jack at the mapped
telephone point. Otherwise, the Point Active LED is lit if the
corresponding point or zone is active. The Status (trouble) LED
is lit if that point or zone is in trouble.
DISABLE … will change the state of a point, zone, or DAA speaker
circuit(s) specified through mapping fro
m enabled to
disabled, or from disabled to enabled, when its button is
pushed.
See Caution below this table.
The Point Active LED is lit if the corresponding mapped
point or zone is active. The Status (trouble) LED is lit only
if that point or zone is disabled.
ACKNOWLEDGE … will act like an Acknowledge soft key or button on the
panel, acknow
ledging an event when its button is
pushed.
The Point Active LED is lit when there are any fire alarms
in the system. The Status (trouble) LED is lit when there
are troubles in the system.
SILENCE … will act like the Signal Silence b
utton on the panel,
silencing all silenceable outputs when its button is
pushed.
The Point Active LED is lit if all silenceable output
s have
been silenced. The Status (trouble) LED is lit if not all
silenceable outputs have been silenced after the button
is pushed.
Table 3.5 ACS Point Mapping: Explanation of Point Modes (1 of 2)
