SPZ--8000 Digital Integrated Flight Control System
A28--1146--055
REV 2
4-65
Electronic Flight Instrument System (EFIS)
Whether or not an element is displayed is determined by flight phase,
NAV radio tuning, selected flight director mode, absolute altitude, etc.
The failure warning, reversionary, and comparison annunciators are not

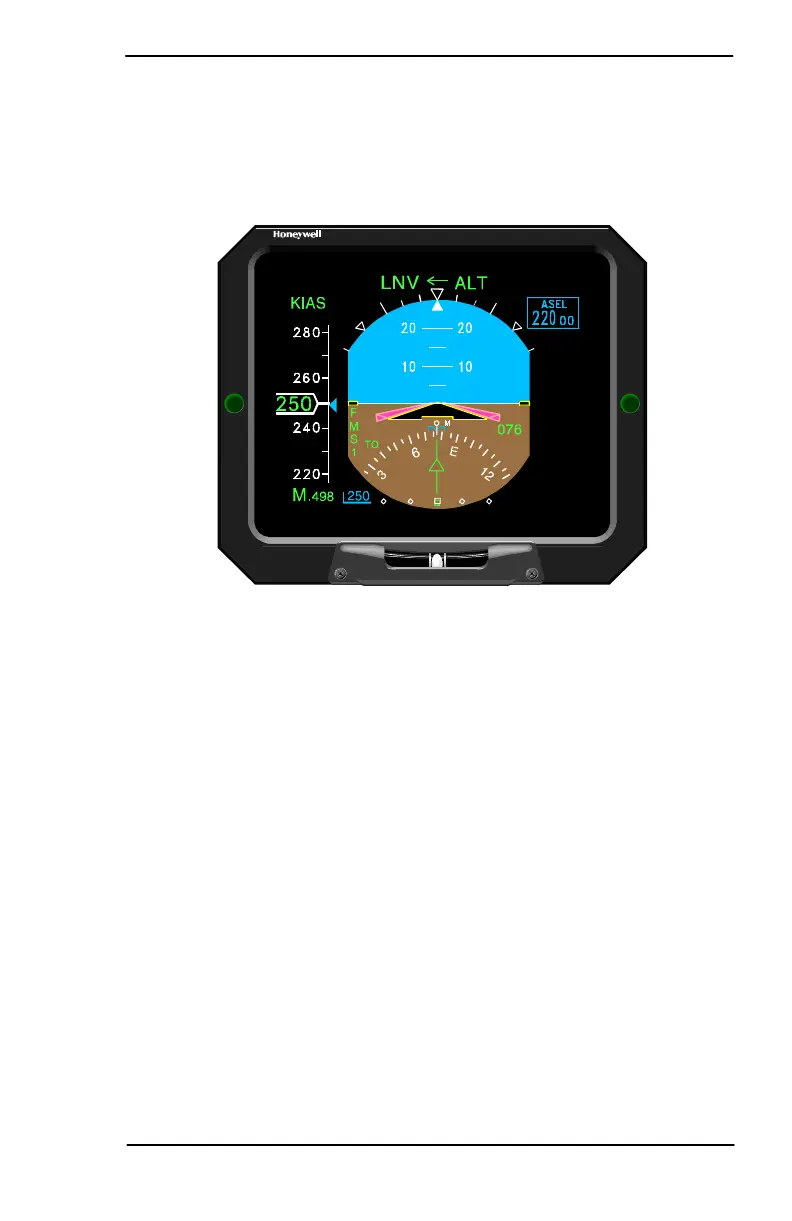

shown below but are similar to the normal display mode. Figure 4--50
shows the composite display in a cruise flight configuration.
AD--58083@
Composite Mode -- Cruise
Figure 4--50
