58 I/O terminal assignment
4 - CONFIGURATION

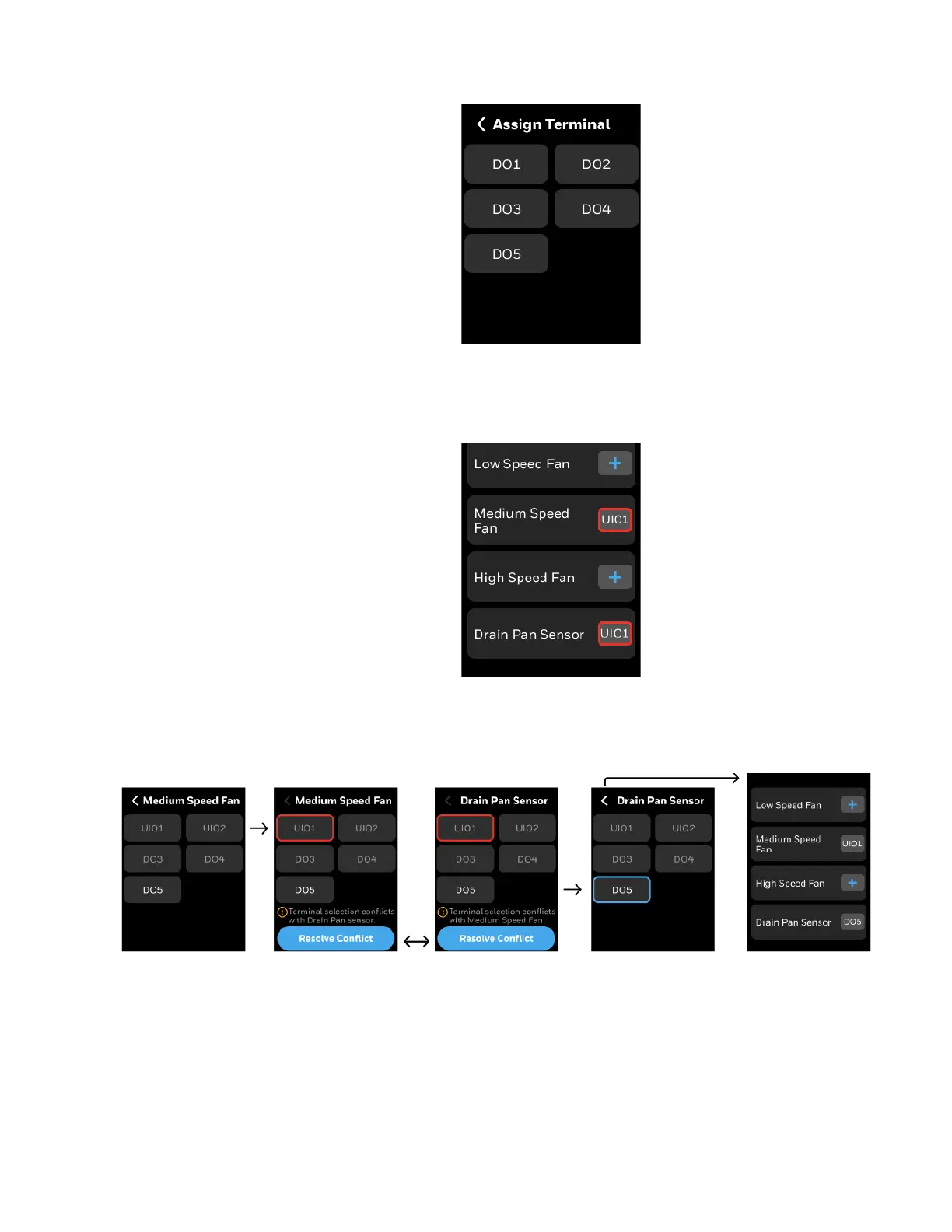

Figure 35 Terminals
• Based on selected equipment function the terminals will be pre-assigned. To override default
terminal assignment select alternate(s) as required.
• If a terminal is assigned incorrect, then there will be a red box around the terminal button. Reassign
the terminal.
Figure 36 Incorrect terminal assignment
• If the same terminal is assigned to two different functions, the user must resolve the conflict by
reassigning the terminal.
• In the below example, user tried to assign UIO1 to Medium speed fan. But the terminal is already
assigned to Drain pan sensor. To resolve this issue, tap the Resolve Conflict button. It opens the
Drain pan sensor screen. Reassign the terminal for Drain pan sensor
4. Tap the back button after assigning the terminals.
If the user tap the back button without modifying the terminal assignment then the
following confirmation message appears.
