66 Managing Discharge air control
4 - CONFIGURATION
2. On the Quick access screen, tap > Equipment > Discharge Air Control.
The Discharge Air Control screen appears.
3. Enable the Discharge Air Control.

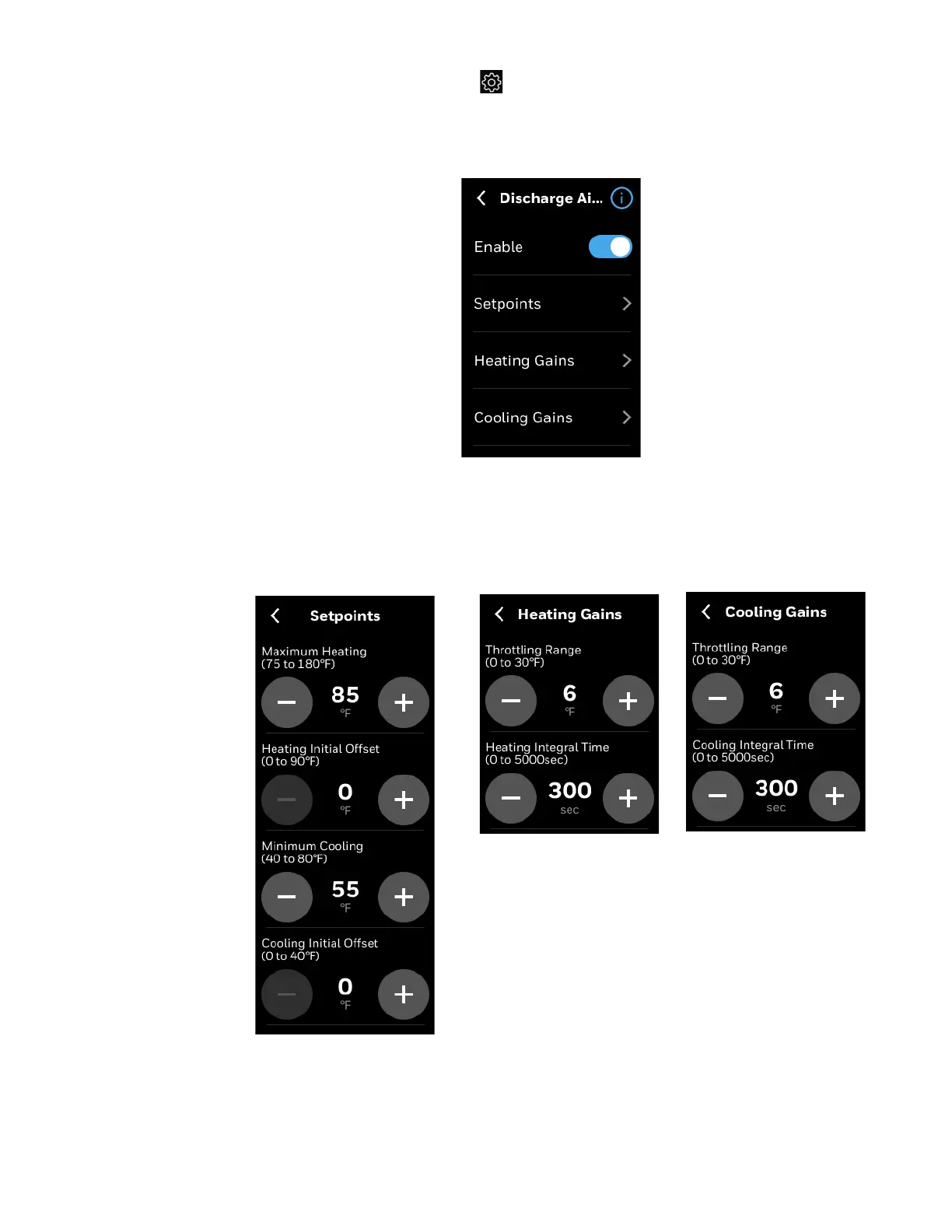

Figure 45 Discharge air control
4. Tap Setpoints to set the Maximum Heating, Heating Initial Offset, Maximum Cooling,
and Cooling Initial Offset.
5. Tap Heating Gains to set Throttling Range and Heating Integral Time.
6. Tap Cooling Gains to set Throttling Range and Cooling Integral Time.
Figure 46 Discharge air control setpoints
7. Tap the help icon to see the on-screen help.
