88 Thor VM1A Vehicle-Mounted Computer

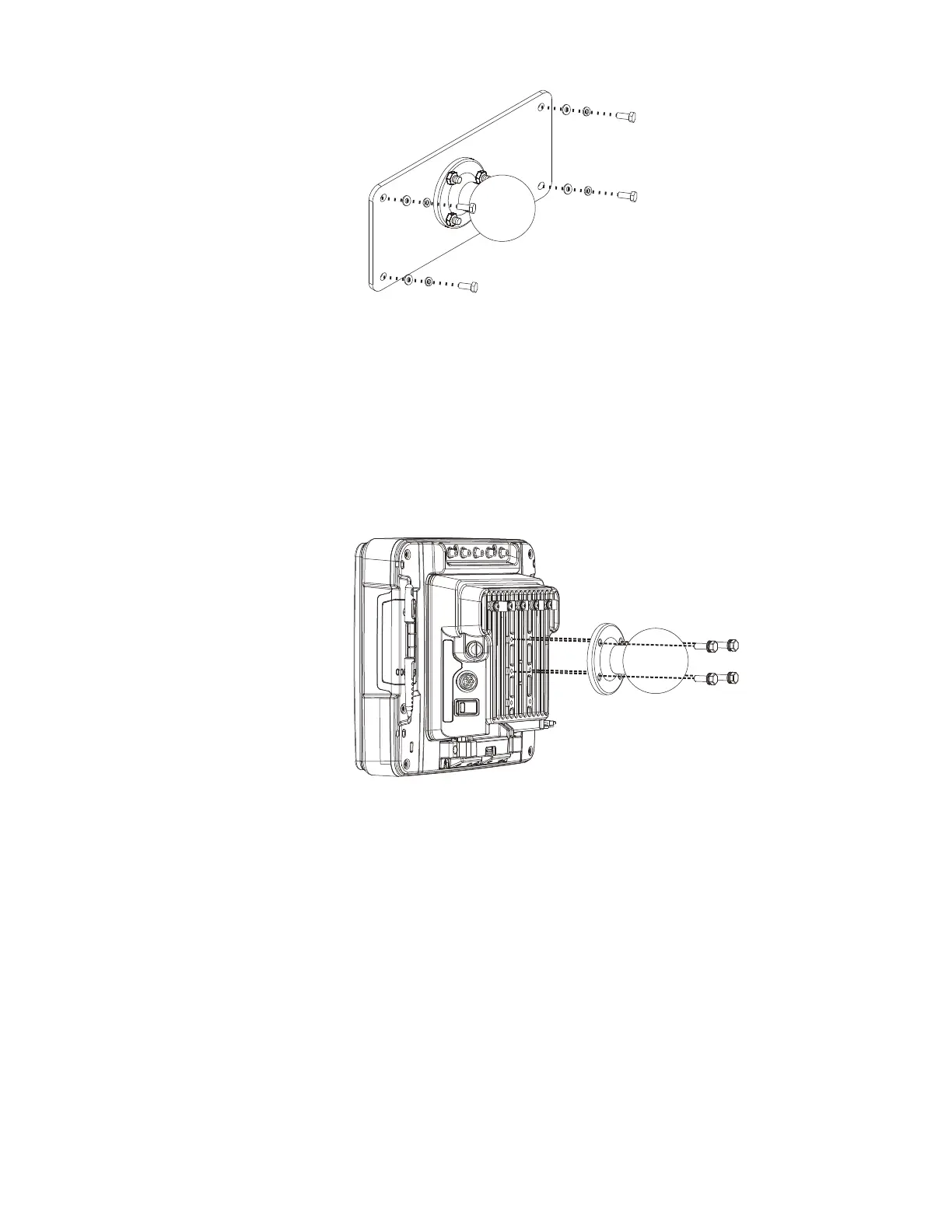

Attach RAM Mount Ball to the Dock
1. Turn the computer off before attaching the RAM mount ball.
2. Place the computer face down on a stable surface.
3. Position the RAM ball on the rear of the dock, aligning the holes on the back of
the dock with the holes on the RAM ball base. Attach with four M5 screws, flat
washers and lock washers.
Attach Thor VM1A Assembly to RAM Mount
1. Slip the Size D RAM arm over the ball on the vehicle RAM mount (RAM Ball
mount shown).
2. Insert the ball on the dock into the RAM arm and tighten the knob on the RAM
arm.
