86 Thor VM1A Vehicle-Mounted Computer

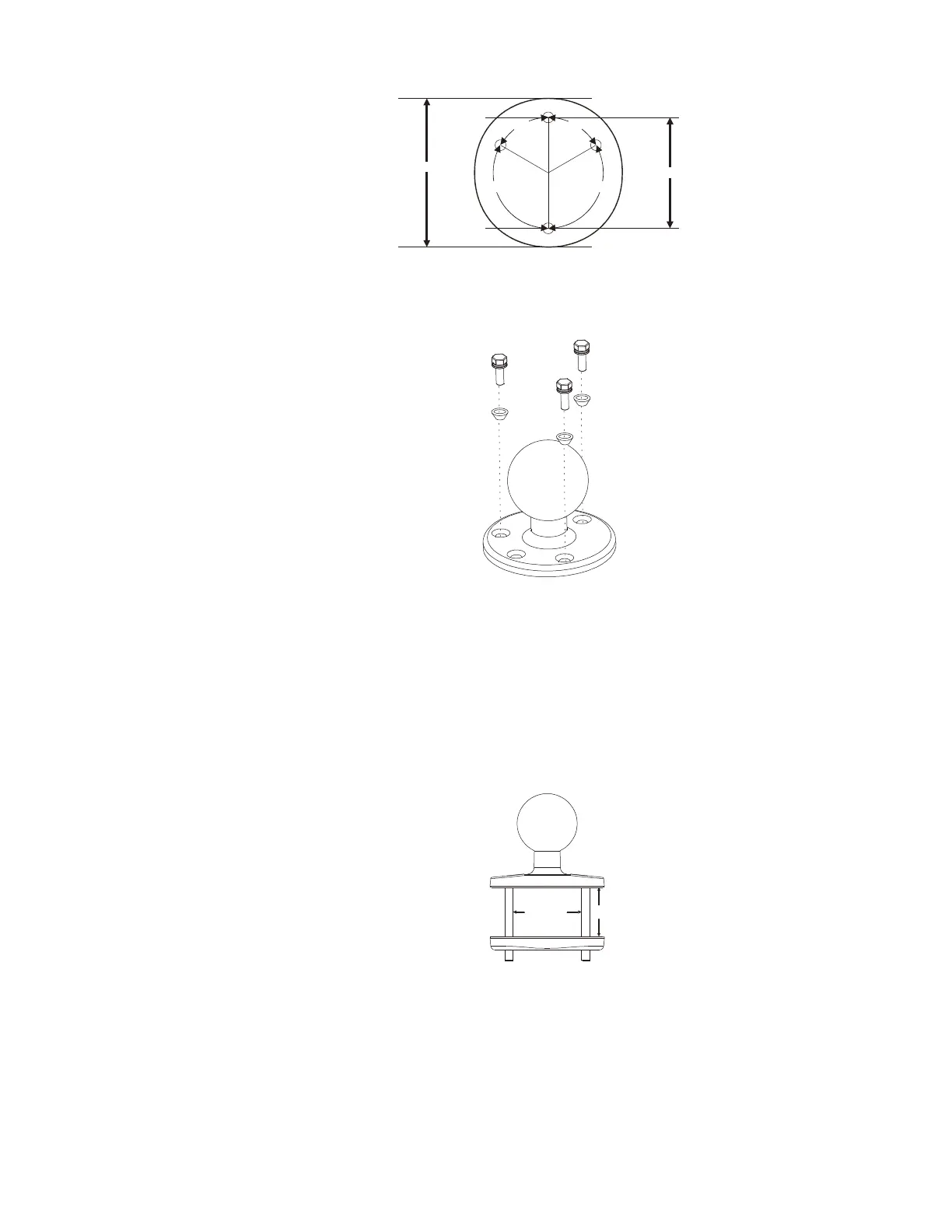

3. Attach the RAM ball base to the vehicle mounting surface using three or four 1/
4 bolts (not included) or equivalent fasteners. If the mounting kit includes cone
washers, use those as illustrated below.
RAM Clamp Mount
1. Determine the position for mounting the RAM clamp mount. The clamp mount
can be used on a beam (such as on a fork lift truck) up to 2.5” (63.5 mm) wide
and approximately 2” (50.8 mm) thick. The clamp may be attached to a thicker
beam by substituting longer bolts (not included). Be sure to position the RAM
clamp mount to allow access to the switches and ports on the bottom of the
computer. (Drawing not to scale.)
2. Position the upper clamp piece with ball on the beam. Place the bolts through
the holes in the upper clamp piece. Position the lower clamp piece below the
beam. Align the bolts with the holes in the lower clamp piece. Place the nylon
locking nuts on the bolts and tighten the bolts.
120º120º
60º60º
2.75" / 69.85 mm
3.69" / 93.73 mm
2.56” /
65.02mm
1.84”
(46.74mm)
