Honeywell Thor VM1A User Manual

80 Thor VM1A Vehicle-Mounted Computer

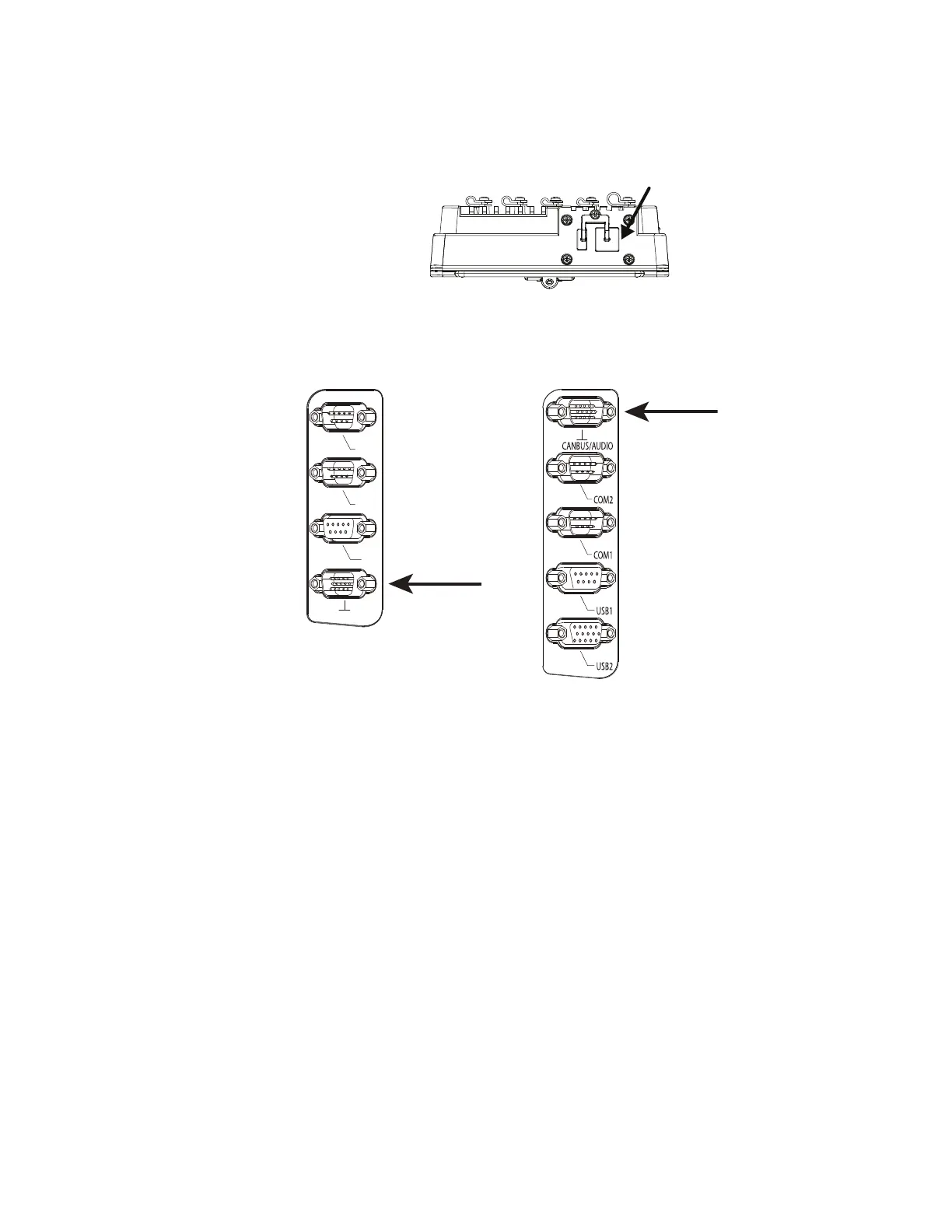

Ethernet Connector
An Ethernet port is located on the top of the Enhanced Dock. Lift the cover to
access the Ethernet port.
Audio Connector
• The Audio connector is a D-15 male connector located on the back of the dock.
• See
Audio Connector for connector pinout detail.
• A headset cable attaches to the Audio connector and provides a quick connect
connection for a headset. See
Connect Headset Cable for more information.
Standard Dock
Enhanced Dock
COM1
COM2
USB
CANBUS/AUDIO
