2 - 1
2
Getting Started
Overview
The Thor VM3 Vehicle Mount Computer (VMC) is a rugged, vehicle mounted computer running a Microsoft
®
Windows
®
Embed-
ded Compact 7 7 Professional for Embedded Systems (64-bit) or a Windows
®
Embedded Standard 7 (32-bit) 10 Enterprise (64-
bit) operating system and capable of wireless data communications from a fork-lift truck or any properly configured vehicle.
Wireless communications are supported over a 802.11 WLAN network. The Bluetooth
®
module supports Bluetooth printers
and scanners.
The Thor VM3 is designed for use with a vehicle dock. Two models of docks are supported, a Standard Dock (page 2-6) and an
Enhanced Dock (page 2-7). The dock installs in the vehicle and connects to vehicle power. The dock provides conditioned
input power for the Thor VM3. Peripheral connections are on the dock. The Thor VM3 is designed to easily be removed from
the dock with a latch on the lower rear of the Thor VM3 housing. Since the dock remains attached to the vehicle, the Thor VM3
computer can easily be moved from one vehicle equipped with a dock to another vehicle equipped with a dock.
The Thor VM3 contains a UPS battery which, when fully charged, can power the Thor VM3 for a minimum of 30 minutes. This
can be when the Thor VM3 is not attached to a dock or when the Thor VM3 is attached to a dock but the vehicle power is inter-
rupted, such as when the vehicle battery is being changed.

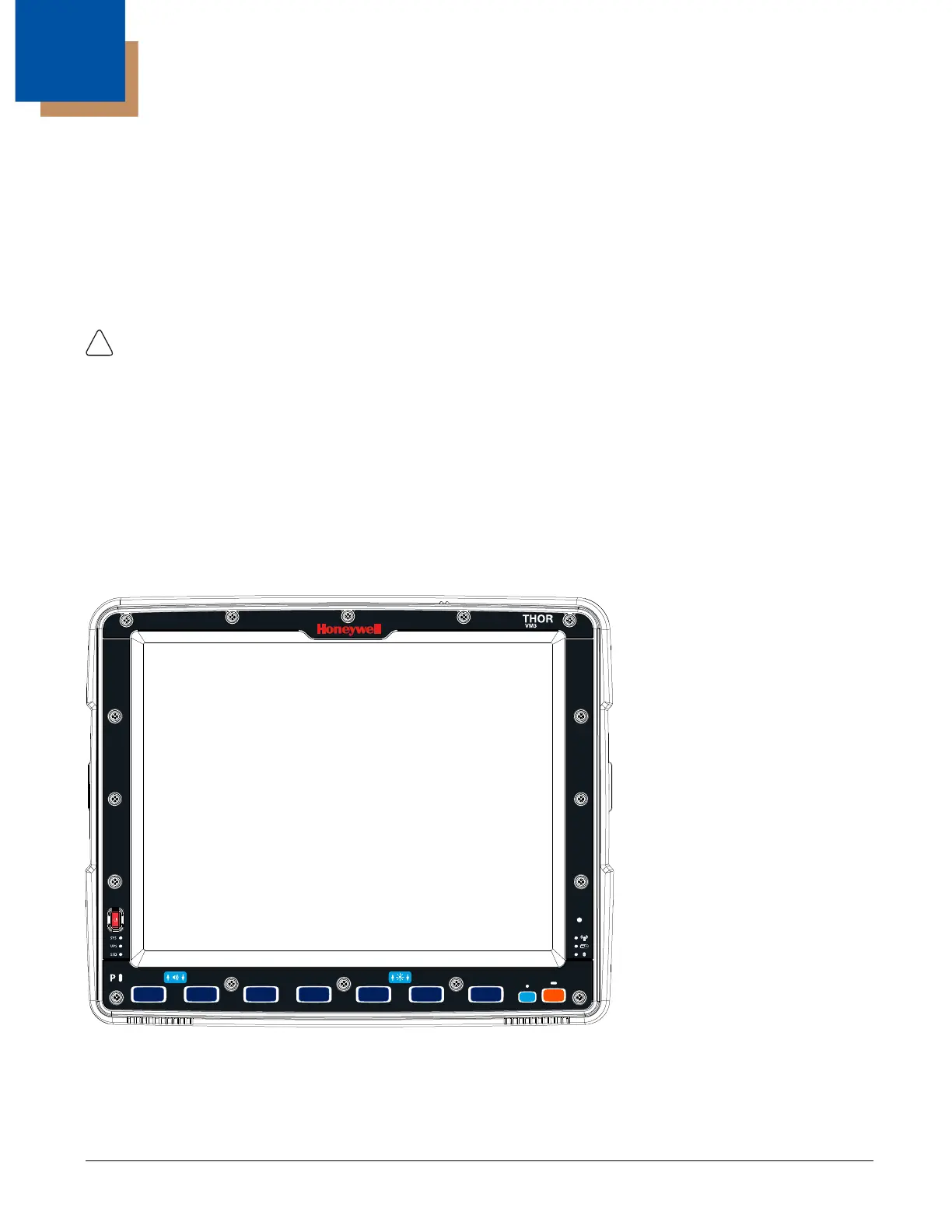

The Thor VM3 can be used with or without an external keyboard. There are 7 programmable keys (P1-P7) on the front bezel
and, when used with the Orange modifier key, provide 7 additional programmable keys (P8-P14).
Contact Technical Assistance (page 10-1) for information on the latest upgrades for your Thor VM3.
About this Guide
This user’s guide has been developed for a Thor VM3 with a Microsoft
®
Windows
®
Embedded Compact 7 operating system.
This user’s guide has been developed for a Thor VM3 with a Microsoft
®
Windows
®
Embedded Standard 2009 operating system.
CAUTION - Before shipping the Thor VM3, be sure to Disconnect UPS Battery (page 4-49) .
!
P8
P1
P14
P7
P13
P6
P12
P5
P11
P4
P10
P3
P9
P2

Honeywell Thor VM3 Specifications

General

Stepping	D0
Tjunction	-40 °C
FSB Parity	No
Processor code	SR1X8
Processor cache	1 MB
Processor cores	2
Processor model	E3826
System bus rate	- GT/s
Processor family	Intel Atom®
Processor codename	Bay Trail
Processor frequency	1.46 GHz
Processor cache type	L2
Processor manufacturer	Intel
Processor package size	25 x 27 mm
Conflict-Free processor	Yes
Processor front side bus	- MHz
Processor operating modes	32-bit, 64-bit
Graphics & IMC lithography	22 nm
PCI Express configurations	1x1, 1x4, 2x1
Thermal Design Power (TDP)	7 W
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Storage media	Flash
Compatible memory cards	-
Internal storage capacity	64 GB
Display diagonal	12.1 \
Display brightness	900 cd/m²
Display resolution	1024 x 768 pixels
Graphics card	HD Graphics
Rear camera resolution (numeric)	- MP
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	2.0+EDR
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
HDMI ports quantity	0
USB 2.0 ports quantity	1
I/O ports	1x CAN-bus, RF
Processor ARK ID	78477
Processor socket	BGA 1170
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Platform	Windows
Bundled software	Data Collection Engine, Microsoft Internet Explorer, Microsoft on-screen keyboard, Configuration Cloning Utility, Screen Blanking, Zoom Zone, Launcher
Operating system installed	Windows 7
AC adapter input voltage	90 - 240 V
Battery capacity	- mAh
Battery life (max)	0.5 h
Certification	EN 55024:2010, MIL-STD-810F, SAE-J1455, CCX
Device type	Tablet PC
Form factor	Slate
Product color	Grey, Silver
Protection features	Shock resistant, Vibration proof, Water resistant
International Protection (IP) code	IP66
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	62 mm
Width	318 mm
Height	260 mm
Weight	3000 g
