When the Thor VM3 is operated in an environment where the UPS battery is not able to charge due to temperature
extremes, the Thor VM3 should be removed to a location within the safe charging temperature range during off hours.
A discharged UPS battery cannot protect against data loss in the event vehicle power is interrupted.
Charging Timeout
• A fully discharged UPS battery normally recharges in less than 4 hours when the Thor VM3 is in a powered dock and
within the safe charging temperature range.
• If the UPS battery is not charged before an 8 hour timeout period expires, the UPS Status LED (page 3-14) then
flashes super fast red.
• If the charge timeout occurs, remove the Thor VM3 from the dock and Disconnect UPS Battery (page 4-49). Reinstall
the Thor VM3 in the dock and power on.
Charging and Power Management
• Charging does not occur when the Thor VM3 is in ignition mode and the ignition is inactive.
• Charging does not occur when either Ignition Mode power scheme/plan is selected and the ignition is inactive.
• Charging of the UPS battery continues when the Thor VM3 is in power management (user idle, system idle or
suspend modes).
• Charging of the UPS battery continues when the Thor VM3 is in power management (display off, sleep or hibernate
modes).
Backup Battery
The Thor VM3 has a permanent Lithium battery installed to maintain time, date and CMOS setup information for a minimum
of 90 days. The lithium battery is not user serviceable and should last four years with normal use before it requires replace-
ment.
Note: The backup battery should only be changed by authorized service personnel.
Fuse
Power Management Modes
The Thor VM3 has four power modes: Full On, Standby/Sleep, Hibernate and Off.
Full On Mode
When the Thor VM3 is attached to either vehicle power or an external power supply or is operating from the UPS bat-
tery and the power button is pressed, the Thor VM3 is in the On mode. In this mode, the keypad, touch screen and any
attached peripherals such as a scanner function normally. The display remains on until the display, standby or hiber-
nate timer (if enabled) expires.
When in Full On mode, the status LED is solid green.
If the Thor VM3 is Full On, a press of the power button can be configured to put the unit in Standby. See the Choose
What the Power Button Does (page 5-27).

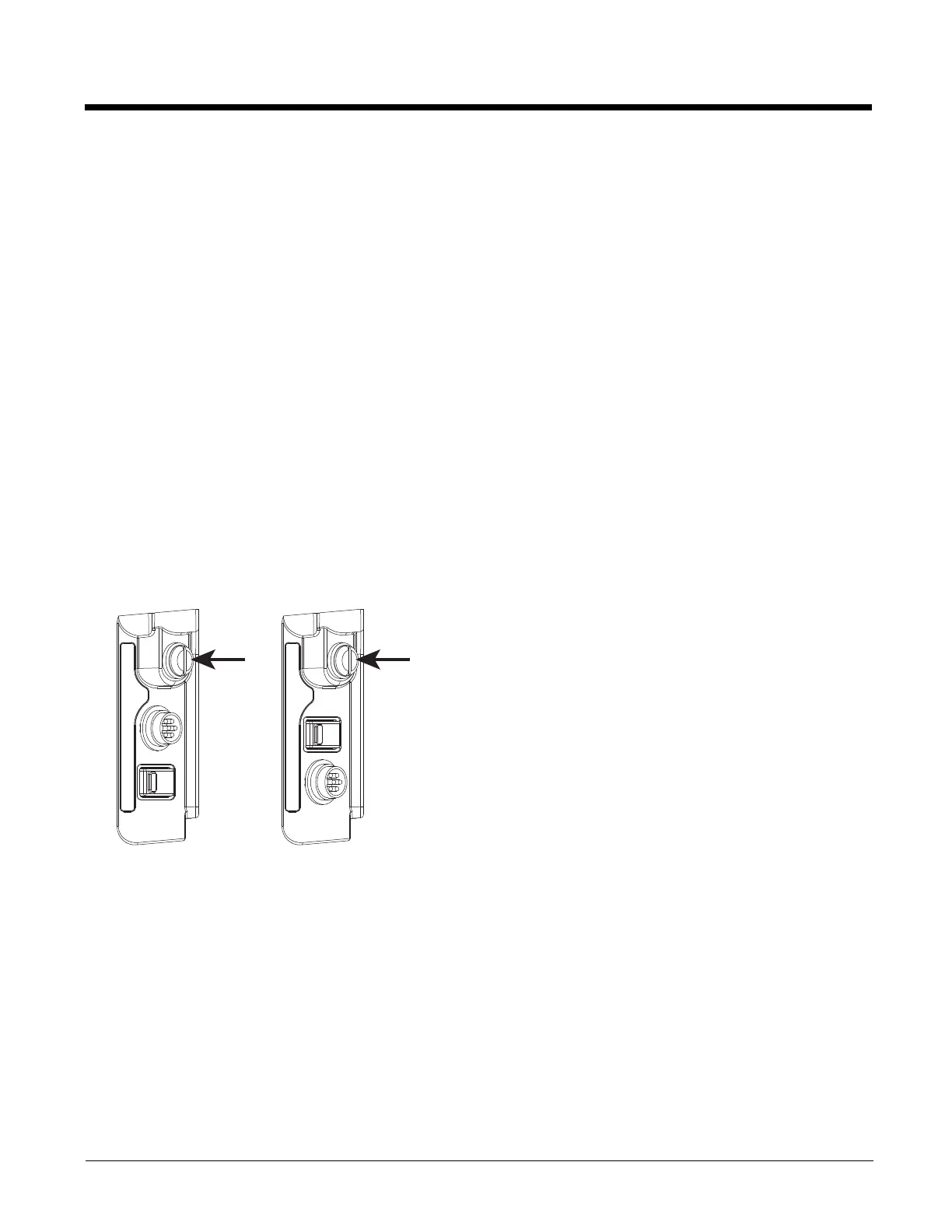

Standard Dock Enhanced Dock
The Thor VM3 uses an 8A time delay (slow blow) fuse that is externally
accessible and user replaceable. The fuse is located on the back of the
dock. The fuse is accessed by unscrewing the cap as indicated.
Should it need replacement, replace with same size, rating and type of
fuse:
• Littelfuse 0215008.MXP
• Cooper Bussmann BK1/S506-8-R
• Bel Fuse 5HT 8-R
or equivalent.
Fuse has voltage on it even when power is off. Always disconnect input
power before changing the fuse.

Honeywell Thor VM3 Specifications

General

Stepping	D0
Tjunction	-40 °C
FSB Parity	No
Processor code	SR1X8
Processor cache	1 MB
Processor cores	2
Processor model	E3826
System bus rate	- GT/s
Processor family	Intel Atom®
Processor codename	Bay Trail
Processor frequency	1.46 GHz
Processor cache type	L2
Processor manufacturer	Intel
Processor package size	25 x 27 mm
Conflict-Free processor	Yes
Processor front side bus	- MHz
Processor operating modes	32-bit, 64-bit
Graphics & IMC lithography	22 nm
PCI Express configurations	1x1, 1x4, 2x1
Thermal Design Power (TDP)	7 W
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Storage media	Flash
Compatible memory cards	-
Internal storage capacity	64 GB
Display diagonal	12.1 \
Display brightness	900 cd/m²
Display resolution	1024 x 768 pixels
Graphics card	HD Graphics
Rear camera resolution (numeric)	- MP
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	2.0+EDR
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
HDMI ports quantity	0
USB 2.0 ports quantity	1
I/O ports	1x CAN-bus, RF
Processor ARK ID	78477
Processor socket	BGA 1170
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Platform	Windows
Bundled software	Data Collection Engine, Microsoft Internet Explorer, Microsoft on-screen keyboard, Configuration Cloning Utility, Screen Blanking, Zoom Zone, Launcher
Operating system installed	Windows 7
AC adapter input voltage	90 - 240 V
Battery capacity	- mAh
Battery life (max)	0.5 h
Certification	EN 55024:2010, MIL-STD-810F, SAE-J1455, CCX
Device type	Tablet PC
Form factor	Slate
Product color	Grey, Silver
Protection features	Shock resistant, Vibration proof, Water resistant
International Protection (IP) code	IP66
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	62 mm
Width	318 mm
Height	260 mm
Weight	3000 g
