Secondary Keys LED
The VMT keyboard is equipped with several secondary keys. These keys are identified by the superscripted
text found on the keyboard keys. The secondary keys are accessible by using two (2) keystrokes: the 2
nd
key
followed by the superscripted key.
Once the 2
nd
state is enabled (by pressing the 2
nd
key) the Secondary Mode LED is illuminated and the 2
nd
state is enabled until another key is pressed. The 2
nd
key is toggled on with a 2
nd
keypress and then immedi-
ately off with another 2
nd
keypress.
• Press 2
nd
and F1 to turn CapsLock on and off.
• Press 2
nd
and ↑ (up arrow) to initiate the PgUp command.
• Press 2
nd
and Q to type the “!” key.
• Press 2
nd
and BkSp to enter the Insert (Ins) mode.
USB Keyboard / Mouse
A standard USB keyboard or mouse can be attached to the Thor VM3 using the appropriate adapter cable.
The Y cable attaches to the Thor VM3 and provides a USB connector. Please refer to documentation provided with the
USB keyboard or mouse for more information on their operation.

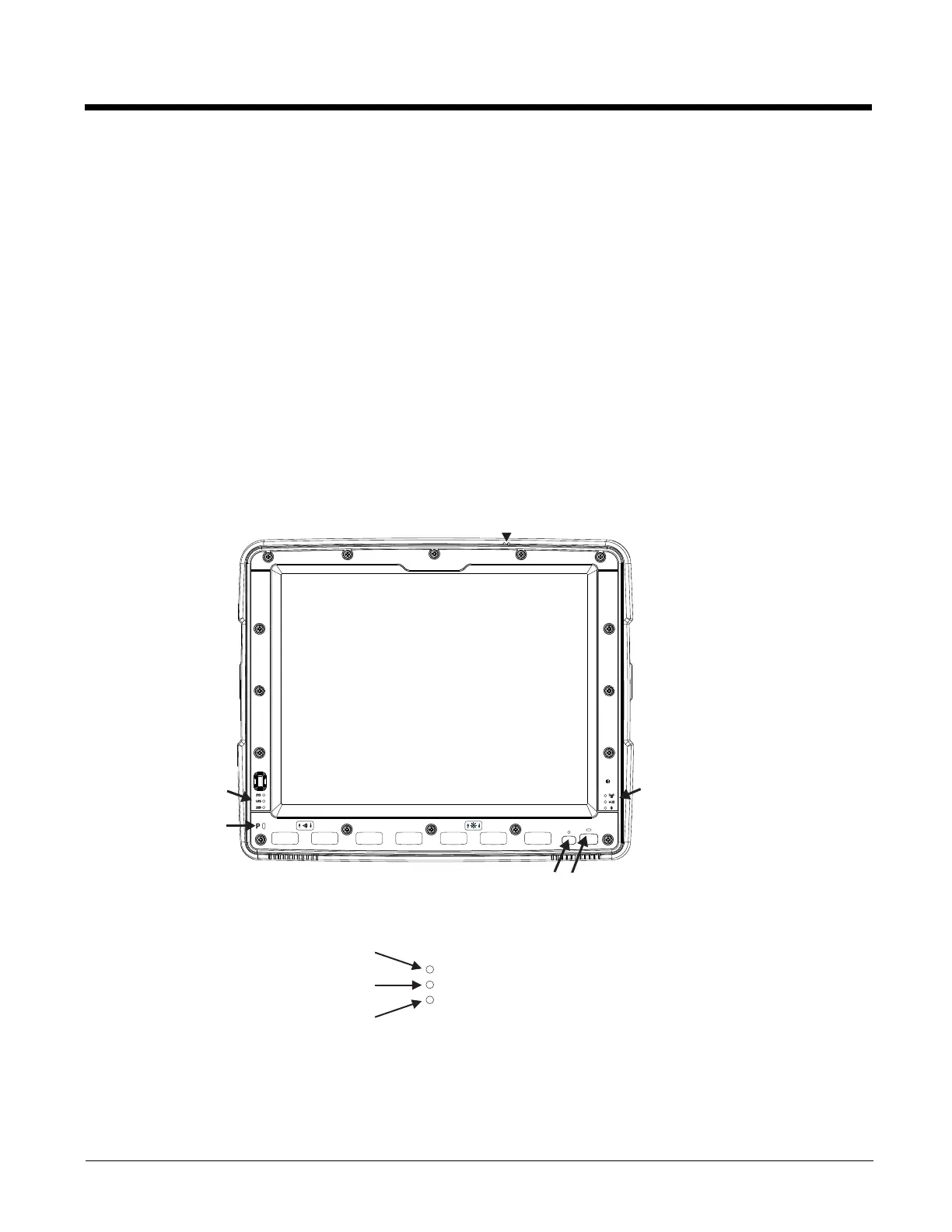

LED Functions
System LEDs
Connection LEDs
System LEDs
Blue LED
Orange LED
Programmable LED
UPS
SYS
SS
D
SYS (System Status) LED
UPS (Uninterruptible Power Supply) LED
SSD (Solid State Drive) LED

Honeywell Thor VM3 Specifications

General

Stepping	D0
Tjunction	-40 °C
FSB Parity	No
Processor code	SR1X8
Processor cache	1 MB
Processor cores	2
Processor model	E3826
System bus rate	- GT/s
Processor family	Intel Atom®
Processor codename	Bay Trail
Processor frequency	1.46 GHz
Processor cache type	L2
Processor manufacturer	Intel
Processor package size	25 x 27 mm
Conflict-Free processor	Yes
Processor front side bus	- MHz
Processor operating modes	32-bit, 64-bit
Graphics & IMC lithography	22 nm
PCI Express configurations	1x1, 1x4, 2x1
Thermal Design Power (TDP)	7 W
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Storage media	Flash
Compatible memory cards	-
Internal storage capacity	64 GB
Display diagonal	12.1 \
Display brightness	900 cd/m²
Display resolution	1024 x 768 pixels
Graphics card	HD Graphics
Rear camera resolution (numeric)	- MP
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	2.0+EDR
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
HDMI ports quantity	0
USB 2.0 ports quantity	1
I/O ports	1x CAN-bus, RF
Processor ARK ID	78477
Processor socket	BGA 1170
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Platform	Windows
Bundled software	Data Collection Engine, Microsoft Internet Explorer, Microsoft on-screen keyboard, Configuration Cloning Utility, Screen Blanking, Zoom Zone, Launcher
Operating system installed	Windows 7
AC adapter input voltage	90 - 240 V
Battery capacity	- mAh
Battery life (max)	0.5 h
Certification	EN 55024:2010, MIL-STD-810F, SAE-J1455, CCX
Device type	Tablet PC
Form factor	Slate
Product color	Grey, Silver
Protection features	Shock resistant, Vibration proof, Water resistant
International Protection (IP) code	IP66
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	62 mm
Width	318 mm
Height	260 mm
Weight	3000 g
