Honeywell Thor VM3 Manual

4 - 2
Maintenance - Vehicle Mounted Devices
Check the vehicle mounting hardware frequently and re-tighten if necessary.
If the vehicle mounting hardware and connections become broken, loose or cracked, the assembly must be taken out of service
and replaced. Contact Technical Assistance (page 10-1) for help.
Cleaning
If it becomes necessary to clean the Thor VM3, dock, peripherals or mounting hardware see:
• Cleaning the Thor VM3 and the Dock (page 2-11)
• Cleaning the Touch Screen (page 2-11)
Place Thor VM3 in the Dock
1. Locate the notch on the upper rear of the Thor VM3.
2. Slide this notch over the top lip of the dock. Slide the Thor VM3 from side to side on the dock to make sure it fully engages
on the lip of the dock. If the Thor VM3 cannot be slid side to side, the lip is engaged.
3. Pull the quick release lever on the Thor VM3 down and push the Thor VM3 against the dock.
4. Release the quick release lever. The quick release lever catches the lower lip on the dock and secures the Thor VM3 to the
dock. Be sure the red quick release lever is pushed all the way in to secure the Thor VM3 to the dock.
5. If necessary, adjust the viewing angle of the Thor VM3.
When the Thor VM3 is placed in the dock, the following may happen:
• If the Thor VM3 is off and power is connected to the dock, the Thor VM3 may boot when placed in the dock. The behavior
depends on the Power Scheme selected. See Ignition Control/Ignition On (page 5-20) and Auto-On (page 5-24).
• If the Thor VM3 is on and power is connected to the dock, the Thor VM3 power management timers may change when the
Thor VM3 is placed in the dock. See Power Schemes (page 5-18).
When the Thor VM3 is removed from the dock, the following may happen:
• If the Thor VM3 is on and power is connected to the dock, the Thor VM3 power management timers may change when the
Thor VM3 is placed in the dock. See Power Schemes (page 5-18).

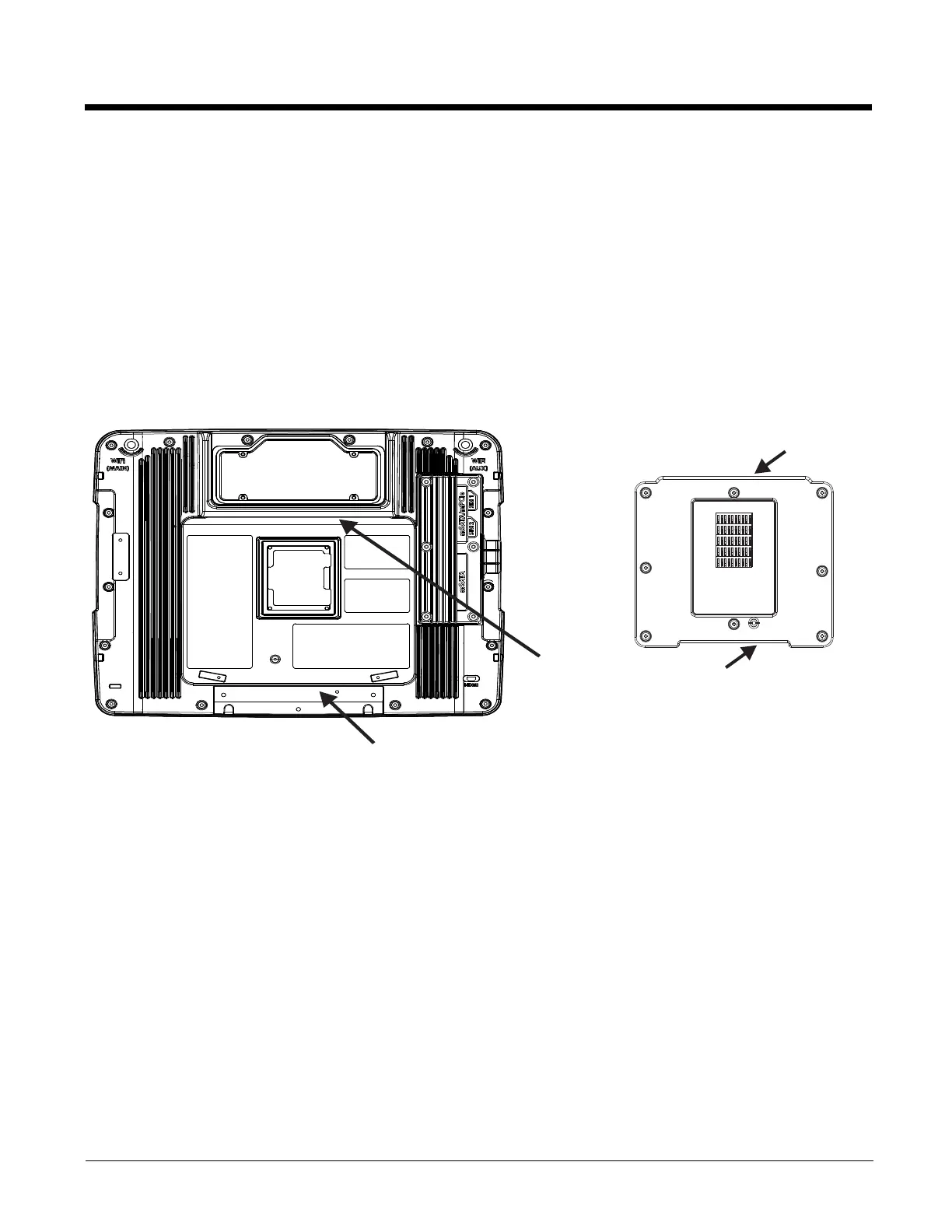

Back of Thor VM3
Front of Dock
Notch on
Thor VM3
Release Lever
Upper Lip on Dock
Lower Lip on Dock

Honeywell Thor VM3 Specifications

General

Stepping	D0
Tjunction	-40 °C
FSB Parity	No
Processor code	SR1X8
Processor cache	1 MB
Processor cores	2
Processor model	E3826
System bus rate	- GT/s
Processor family	Intel Atom®
Processor codename	Bay Trail
Processor frequency	1.46 GHz
Processor cache type	L2
Processor manufacturer	Intel
Processor package size	25 x 27 mm
Conflict-Free processor	Yes
Processor front side bus	- MHz
Processor operating modes	32-bit, 64-bit
Graphics & IMC lithography	22 nm
PCI Express configurations	1x1, 1x4, 2x1
Thermal Design Power (TDP)	7 W
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Storage media	Flash
Compatible memory cards	-
Internal storage capacity	64 GB
Display diagonal	12.1 \
Display brightness	900 cd/m²
Display resolution	1024 x 768 pixels
Graphics card	HD Graphics
Rear camera resolution (numeric)	- MP
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	2.0+EDR
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
HDMI ports quantity	0
USB 2.0 ports quantity	1
I/O ports	1x CAN-bus, RF
Processor ARK ID	78477
Processor socket	BGA 1170
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Platform	Windows
Bundled software	Data Collection Engine, Microsoft Internet Explorer, Microsoft on-screen keyboard, Configuration Cloning Utility, Screen Blanking, Zoom Zone, Launcher
Operating system installed	Windows 7
AC adapter input voltage	90 - 240 V
Battery capacity	- mAh
Battery life (max)	0.5 h
Certification	EN 55024:2010, MIL-STD-810F, SAE-J1455, CCX
Device type	Tablet PC
Form factor	Slate
Product color	Grey, Silver
Protection features	Shock resistant, Vibration proof, Water resistant
International Protection (IP) code	IP66
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	62 mm
Width	318 mm
Height	260 mm
Weight	3000 g
