Power Controls
Power Switch
Power Button
External Connectors
Power the Thor VM3 off before attaching a cable to any port (serial, USB, Audio/CAN, etc.).
The external I/O connectors for the Thor VM3 are located on the right side of the Smart Dock (when viewed from the back).
The Power Supply Connector (page 3-7) is on the left side of the dock (when viewed from the back).
Antenna connectors are located on the top rear of the Thor VM3.
Standard Dock Enhanced Dock
After all cables are connected, the Thor VM3 can be powered on.

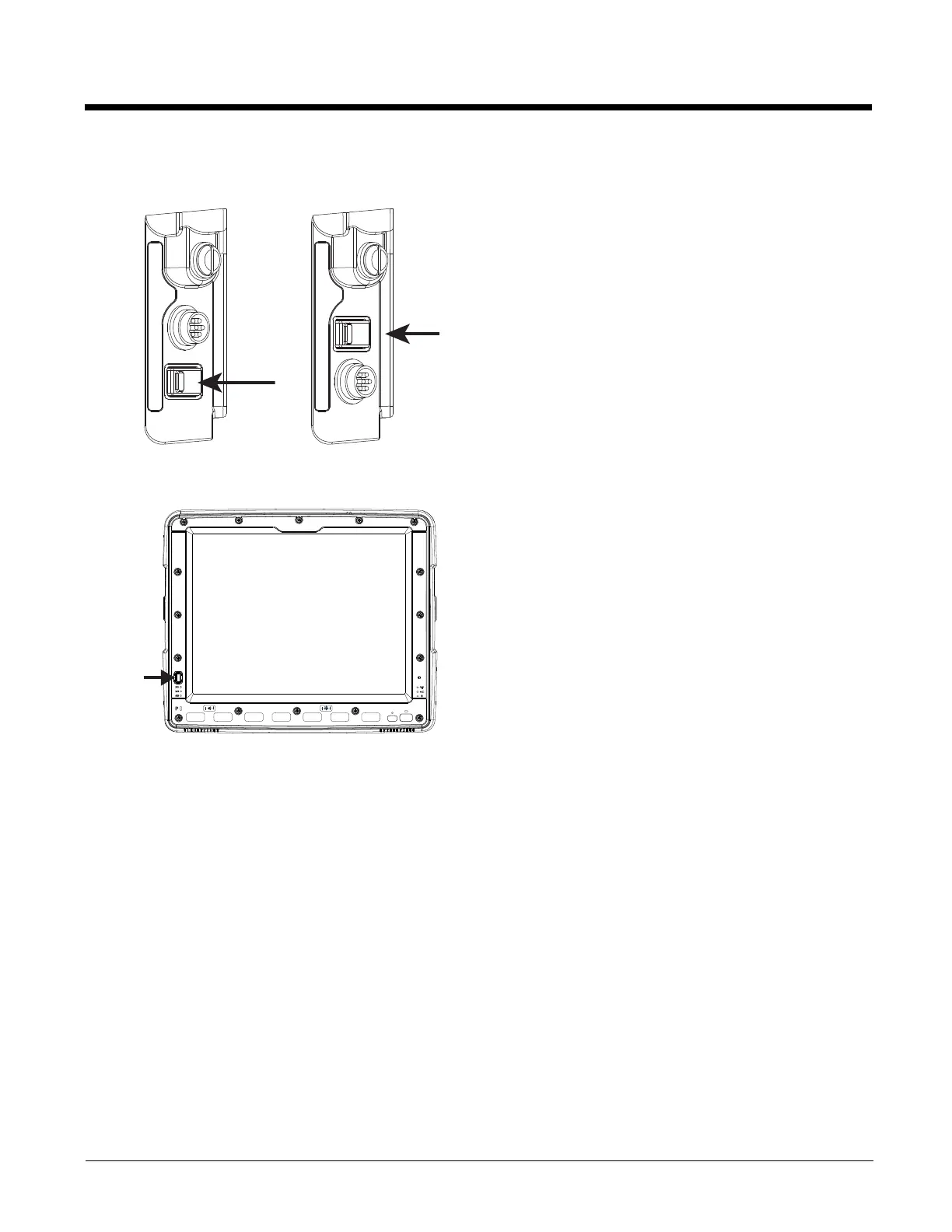

There is a power switch located on the back of the dock. The power
switch is a rocker switch.
The power switch has a raised bump to identify the switch position
even when it is hidden from view. When the side of the switch with
the raised bump is pressed, the power switch is On. If the dock is
connected to external power, the dock delivers power to the Thor
VM3.
Generally, once the dock is powered On, there is no need to power
it off. The dock power can remain On even when the Thor VM3 is
not attached.
The power button is located at the lower left of the Thor VM3.
If the Thor VM3 is Off, pressing the power button starts the power up
sequence.
Note: This assumes that the Thor VM3 is docked in a powered dock
or that the internal UPS battery has a sufficient charge to
power the Thor VM3. If no external power is available and the
UPS battery does not have a charge, pressing the power
button causes no action.
If the Thor VM3 is On, pressing the power button performs the option
selected in the Advanced tab of the Power control panel (options may
vary by OS type):
• Ignore power button press
• Prompt the user to select action
• Shut down (default, an orderly shutdown is performed)
• Standby/Sleep
• Hibernate

Honeywell Thor VM3 Specifications

General

Stepping	D0
Tjunction	-40 °C
FSB Parity	No
Processor code	SR1X8
Processor cache	1 MB
Processor cores	2
Processor model	E3826
System bus rate	- GT/s
Processor family	Intel Atom®
Processor codename	Bay Trail
Processor frequency	1.46 GHz
Processor cache type	L2
Processor manufacturer	Intel
Processor package size	25 x 27 mm
Conflict-Free processor	Yes
Processor front side bus	- MHz
Processor operating modes	32-bit, 64-bit
Graphics & IMC lithography	22 nm
PCI Express configurations	1x1, 1x4, 2x1
Thermal Design Power (TDP)	7 W
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Storage media	Flash
Compatible memory cards	-
Internal storage capacity	64 GB
Display diagonal	12.1 \
Display brightness	900 cd/m²
Display resolution	1024 x 768 pixels
Graphics card	HD Graphics
Rear camera resolution (numeric)	- MP
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	2.0+EDR
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
HDMI ports quantity	0
USB 2.0 ports quantity	1
I/O ports	1x CAN-bus, RF
Processor ARK ID	78477
Processor socket	BGA 1170
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Platform	Windows
Bundled software	Data Collection Engine, Microsoft Internet Explorer, Microsoft on-screen keyboard, Configuration Cloning Utility, Screen Blanking, Zoom Zone, Launcher
Operating system installed	Windows 7
AC adapter input voltage	90 - 240 V
Battery capacity	- mAh
Battery life (max)	0.5 h
Certification	EN 55024:2010, MIL-STD-810F, SAE-J1455, CCX
Device type	Tablet PC
Form factor	Slate
Product color	Grey, Silver
Protection features	Shock resistant, Vibration proof, Water resistant
International Protection (IP) code	IP66
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	62 mm
Width	318 mm
Height	260 mm
Weight	3000 g
