Honeywell Thor VM3 Manual

4 - 17
Connect Power
See Power Supply Connector (page 9-6) for connector pinout
For the VM1D Standard Dock and VM3D Enhanced Dock, power options include:
• 12-48 VDC Vehicles (10-60 VDC Direct Connection) (page 4-18) - Direct connection to vehicle power.
• 60-144 VDC Vehicles (50-150 VDC Power Supply, Screws on Side of Lid) (page 4-23) - Requires the use of a DC/DC
power supply.
• 60-144 VDC Vehicles (50-150 VDC Power Supply, Screws on Top of Lid) (page 4-26) - Requires the use of a DC/DC
power supply.
• VX6 / VX7 Adapter Cable (page 4-29) - For applications where the Thor VM3 replaces a previously installed VX6 or VX7.
• Thor VX8 / Thor VX9 Adapter Cable (page 4-30) - For applications where the Thor VM3 (with a VM1D Standard Dock or
VM3D Enhanced dock( replaces a previously installed Thor VX8 or Thor VX9.
• Screen Blanking (page 4-32) - Optional connection to blank the Thor VM3 display while the vehicle is in motion.
• External AC/DC Power Supply (page 4-38) - For use when DC power is not available to power the Thor VM3, such as in
an office environment.
For the VMX3D Enhanced Dock, power options include:
• VMXD Enhanced Dock with Thor VX8/Thor VX9 Power Cable (page 4-35) - For applications where a Thor VM3 (with a
VMXD Enhanced Dock) replaces a previously installed Thor VX8 or Thor VX9.
• External AC/DC Power Supply (page 4-38) - For use when DC power is not available to power the Thor VM3, such as in
an office environment.

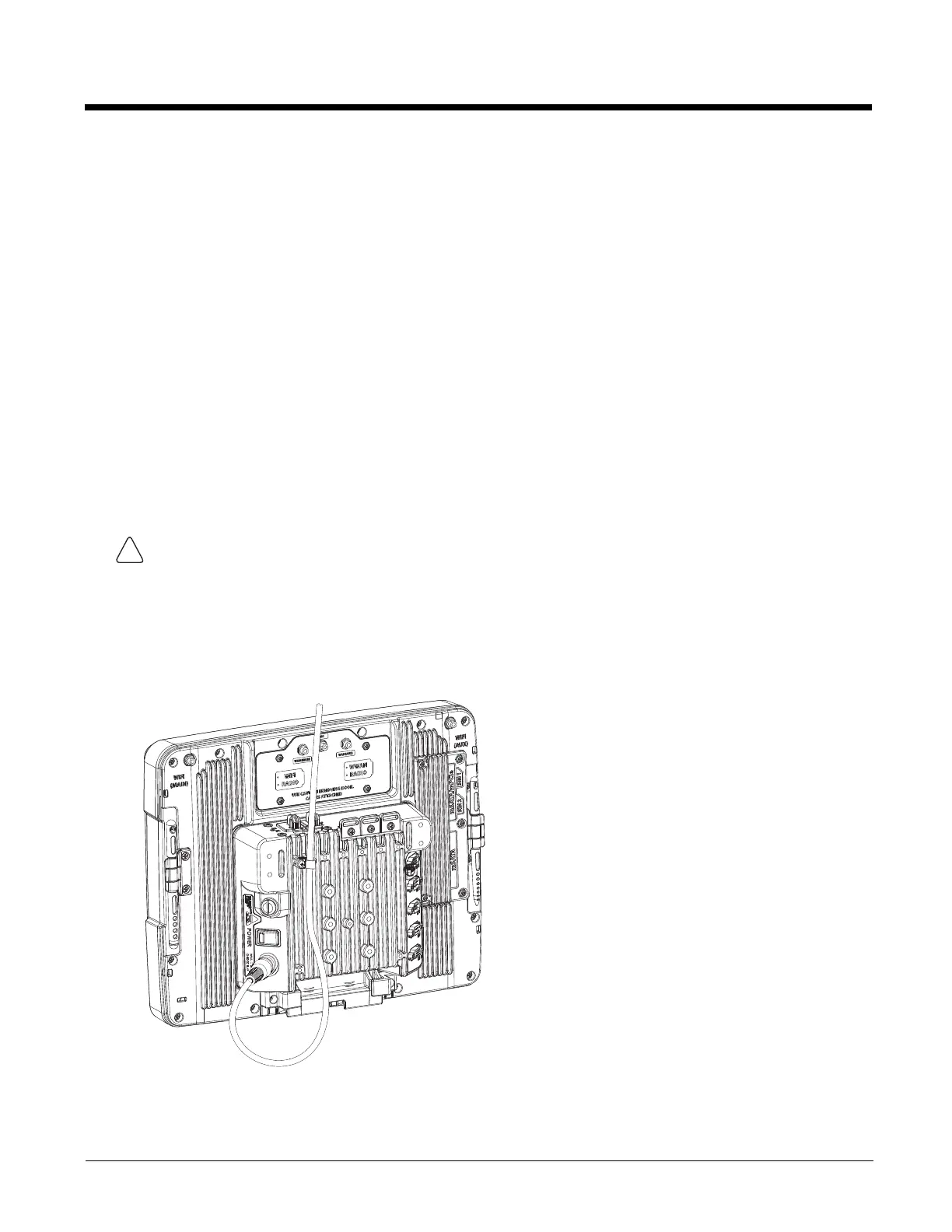

Power Cable Cautions
Power Cable Routing
CAUTION - When routing the power cable:
• Route power cable away from the outside of the fork truck.
• Choose a mounting location so that the power cable does not extend outside the vehicle and that provides sufficient
clearance so that the power cable (especially the dock connector end) is not pressed against part of the vehicle.
• Use the proper Strain Relief Cable Clamps (page 4-16) to secure cable.
• The power cable is less flexible in low temperature environments. Avoid sharp bends.
Regularly inspect power cable for damage, especially in low temperature environments. Contact Technical
Assistance (page 10-1) for replacement cable options.
!

Honeywell Thor VM3 Specifications

General

Stepping	D0
Tjunction	-40 °C
FSB Parity	No
Processor code	SR1X8
Processor cache	1 MB
Processor cores	2
Processor model	E3826
System bus rate	- GT/s
Processor family	Intel Atom®
Processor codename	Bay Trail
Processor frequency	1.46 GHz
Processor cache type	L2
Processor manufacturer	Intel
Processor package size	25 x 27 mm
Conflict-Free processor	Yes
Processor front side bus	- MHz
Processor operating modes	32-bit, 64-bit
Graphics & IMC lithography	22 nm
PCI Express configurations	1x1, 1x4, 2x1
Thermal Design Power (TDP)	7 W
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Storage media	Flash
Compatible memory cards	-
Internal storage capacity	64 GB
Display diagonal	12.1 \
Display brightness	900 cd/m²
Display resolution	1024 x 768 pixels
Graphics card	HD Graphics
Rear camera resolution (numeric)	- MP
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	2.0+EDR
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
HDMI ports quantity	0
USB 2.0 ports quantity	1
I/O ports	1x CAN-bus, RF
Processor ARK ID	78477
Processor socket	BGA 1170
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Platform	Windows
Bundled software	Data Collection Engine, Microsoft Internet Explorer, Microsoft on-screen keyboard, Configuration Cloning Utility, Screen Blanking, Zoom Zone, Launcher
Operating system installed	Windows 7
AC adapter input voltage	90 - 240 V
Battery capacity	- mAh
Battery life (max)	0.5 h
Certification	EN 55024:2010, MIL-STD-810F, SAE-J1455, CCX
Device type	Tablet PC
Form factor	Slate
Product color	Grey, Silver
Protection features	Shock resistant, Vibration proof, Water resistant
International Protection (IP) code	IP66
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	62 mm
Width	318 mm
Height	260 mm
Weight	3000 g
