Honeywell Thor VM3 Manual

4 - 30
Thor VX8 / Thor VX9 Adapter Cable
Note: This cable is for use with VM1D Standard Dock and VM3D Enhanced Dock. This cable is not needed for VMXD
Enhanced Dock.
An adapter cable is available to attach the Thor VM3 to a vehicle previously equipped with a VX8/VX9 DC power cable.
The adapter cable has a 6-pin connector to match the VX8/XVX9 power supply cable on one end and a 6-pin connec-
tor to match the Thor VM3 on the other end. The cable also has bare wires for ground and ignition sense connection
plus a D9 cable to connect to a COM port on the Thor VM3 dock to provide a screen blanking signal. This section
assumes the VX8/VX9 power cable is properly connected to vehicle power. Refer to the VX8 or VX9 Vehicle Mounting
Reference Guide for details.
Connect to Thor VX8 / VX9 Power Cable
1. Connect the adapter cable to the Thor VX8/VX9 power cable by aligning the connector pins to the power con-
nector; push down on the watertight connector and twist it to fasten securely.
2. Connect the green wire to vehicle ground:
3. If ignition control will be used, connect the blue wire to an ignition switched circuit (less than 1mA over input
voltage range). If ignition control is not used, the blue wire can be left disconnected,
4. If the VX8/VX9 cable is connected to a screen blanking box or switch, connect the D9 connector to a COM
port on the dock.
5. The cable is rated for a maximum temperature of 105°C (221°F). Therefore, when routing this cable it should
be protected from physical damage and from surfaces that might exceed this temperature. Cable should be
protected from physical damage from moving parts. Do not expose the cable to chemicals or oil that may
cause the wiring insulation to deteriorate. Always route the cable so that it does not interfere with safe opera-
tion and maintenance of the vehicle.
6. Provide mechanical support for the cable by securing it to the vehicle structure at approximately one foot inter-
vals, taking care not to over tighten and pinch conductors or penetrate outer cable jacket.
7. Connect the watertight connector end of the power cable to the Thor VM3 Smart Dock power connector by
aligning the connector pins to the power connector; push down on the watertight connector and twist it to fas-
ten securely.
8. Secure the power cable to the Thor VM3 using the Strain Relief Cable Clamps (page 4-16).
9. Place Thor VM3 in the Dock (page 4-2)
10. If using the Screen Blanking (page 4-32) feature, install the screen blanking box or switch if not previously
installed.
11. Press the Power Switch (page 3-4) on the back of the Thor VM3 dock.
12. Press the Power Button (page 3-4) on the front of the Thor VM3 to turn on the Thor VM3.
For battery powered vehicles:
The green wire must be connected to the vehicle chassis ground.
For internal combustion engine powered vehicles:
The green wire is connected to the vehicle chassis ground, which can also be battery negative.

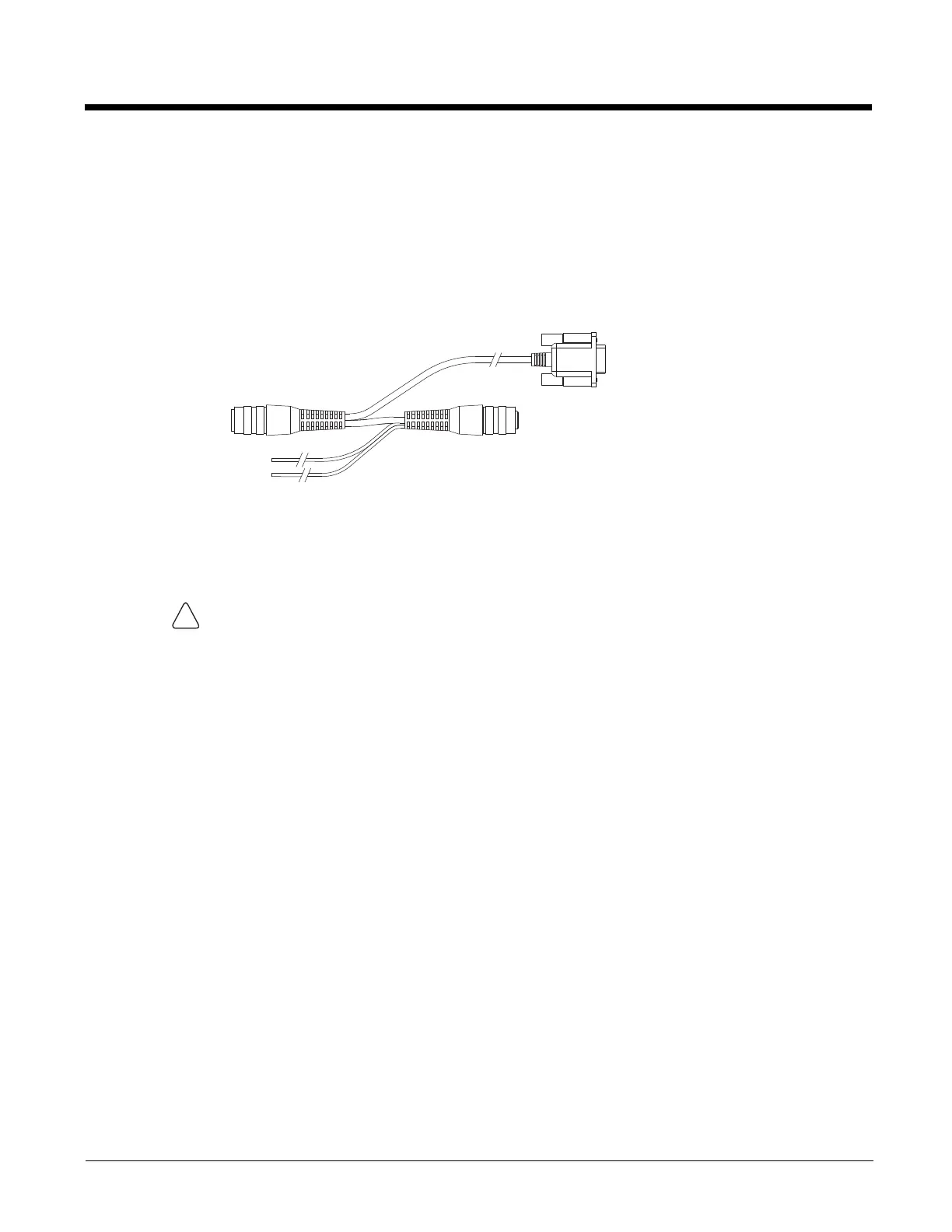

To COM port
on Dock
To Power Connector
on Dock
To VX8/VX9
Power Cable
To Ground and
Ignition Sense
!

Honeywell Thor VM3 Specifications

General

Stepping	D0
Tjunction	-40 °C
FSB Parity	No
Processor code	SR1X8
Processor cache	1 MB
Processor cores	2
Processor model	E3826
System bus rate	- GT/s
Processor family	Intel Atom®
Processor codename	Bay Trail
Processor frequency	1.46 GHz
Processor cache type	L2
Processor manufacturer	Intel
Processor package size	25 x 27 mm
Conflict-Free processor	Yes
Processor front side bus	- MHz
Processor operating modes	32-bit, 64-bit
Graphics & IMC lithography	22 nm
PCI Express configurations	1x1, 1x4, 2x1
Thermal Design Power (TDP)	7 W
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Storage media	Flash
Compatible memory cards	-
Internal storage capacity	64 GB
Display diagonal	12.1 \
Display brightness	900 cd/m²
Display resolution	1024 x 768 pixels
Graphics card	HD Graphics
Rear camera resolution (numeric)	- MP
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	2.0+EDR
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
HDMI ports quantity	0
USB 2.0 ports quantity	1
I/O ports	1x CAN-bus, RF
Processor ARK ID	78477
Processor socket	BGA 1170
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Platform	Windows
Bundled software	Data Collection Engine, Microsoft Internet Explorer, Microsoft on-screen keyboard, Configuration Cloning Utility, Screen Blanking, Zoom Zone, Launcher
Operating system installed	Windows 7
AC adapter input voltage	90 - 240 V
Battery capacity	- mAh
Battery life (max)	0.5 h
Certification	EN 55024:2010, MIL-STD-810F, SAE-J1455, CCX
Device type	Tablet PC
Form factor	Slate
Product color	Grey, Silver
Protection features	Shock resistant, Vibration proof, Water resistant
International Protection (IP) code	IP66
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	62 mm
Width	318 mm
Height	260 mm
Weight	3000 g
