Keyboard Options

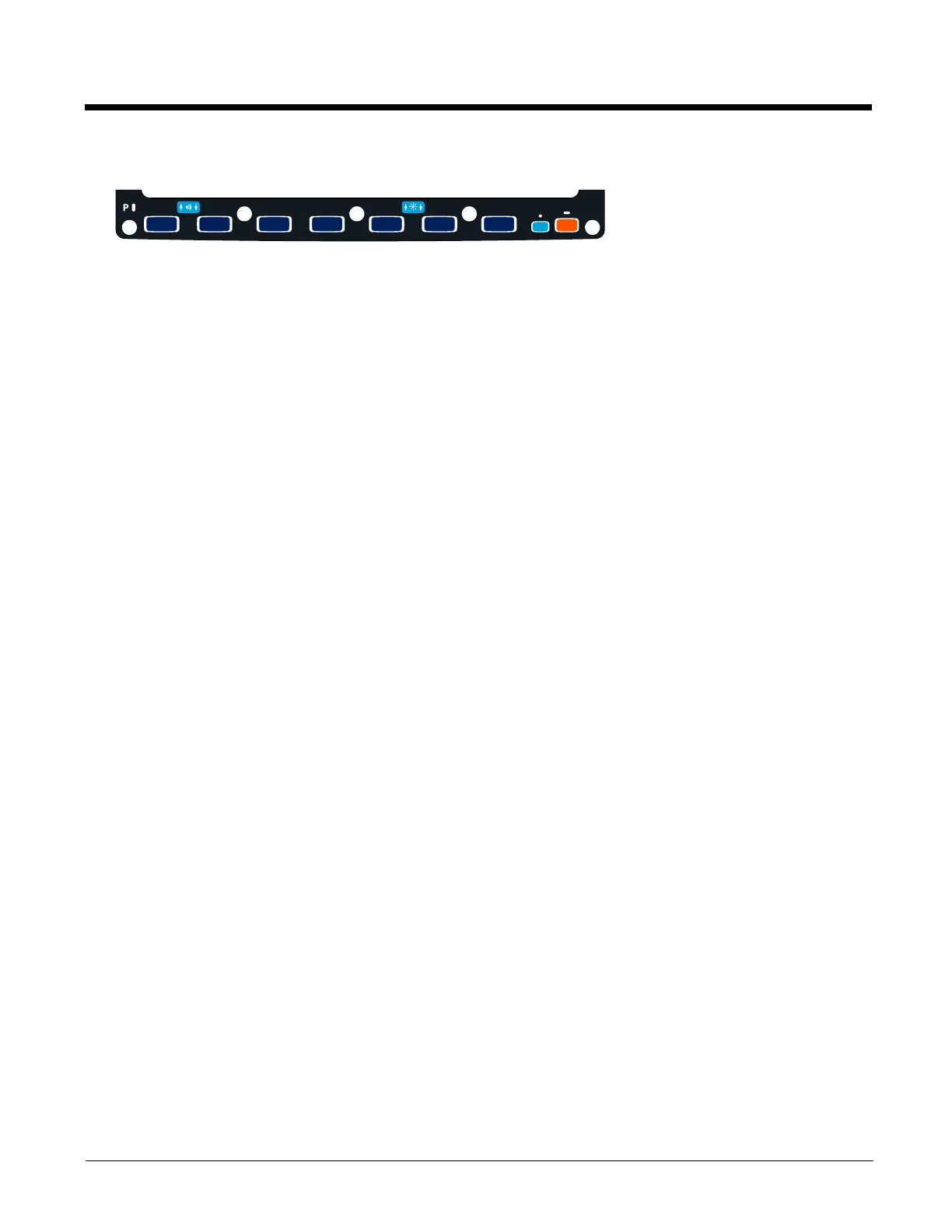

The integrated keypad contains seven programmable keys, a blue modifier key and an orange modifier key.
The P1 though P7 keys are user programmable.
• When used with no modifier key, P1 through P7 can be configured for a user programmable function.
• When used with the Orange modifier key, P1 through P7 provide secondary programmable keys, P8 through P14, and
can be configured for a user programmable function.
• The programmable keys can be remapped to provide a single keypress, a string of keypresses or to execute an
application or command. Key remapping is configured via the Keyboard Remapper (page 5-35) option in the Control
Panel.
• The programmable keys can be remapped to provide a single keypress, a string of keypresses or to execute an
application or command. Key remapping is configured via the Programmable Key (page 5-29) option in the Control
Panel.
• Programmable keys persist across a warmboot or power cycle.
• When used with the Blue modifier key, P1 and P2 keys are used to adjust speaker volume and P5 and P6 keys are used
to adjust display brightness.
The Thor VM3 integrated keypad is backlit.
• By default, the integrated keypad backlight follows the display backlight. When the display backlight is on, the integrated
keypad backlight is on.
• If the display backlight brightness is increased (or decreased) the integrated keypad backlight brightness does not
change.
• The integrated keypad backlight and the display share the same timer, which is configured in the Power (page 5-49)
control panel.
• The integrated keypad backlight and the display share the same timer, which is configured in the Power Options (page
5-18) control panel.
• The integrated keypad backlight can be disabled via the Misc tab of the Options (page 5-43) control panel.
• The integrated keypad backlight can be disabled via the Options (page 5-17) control panel.
Keypad LEDs
See Keyboard LEDs (page 3-16) for details.
USB Keyboards
Two Honeywell ruggedized USB keyboards are available, 95-key alphanumeric and 21-key numeric.
95-Key USB Keyboard
The 95-key USB keyboard may have any of the following markings on the decal on the back of the keyboard:
• 164288-0001
• 95 KEY USB
• 9000160KEYBRD
If the keyboard looks similar but has a different part number refer to 95-key PS/2 Keyboard (page 3-11).
If the keyboard is labeled as 164288-0001 Revision B (or greater ) the keyboard has sticky keys for Alt, Ctrl and Shift.
These keys will remain active for the next keypress. Earlier versions of this keyboard (Revision A) do not have sticky
keys implemented.
P8
P1
P14
P7
P13
P6
P12
P5
P11
P4
P10
P3
P9
P2

Honeywell Thor VM3 Specifications

General

Stepping	D0
Tjunction	-40 °C
FSB Parity	No
Processor code	SR1X8
Processor cache	1 MB
Processor cores	2
Processor model	E3826
System bus rate	- GT/s
Processor family	Intel Atom®
Processor codename	Bay Trail
Processor frequency	1.46 GHz
Processor cache type	L2
Processor manufacturer	Intel
Processor package size	25 x 27 mm
Conflict-Free processor	Yes
Processor front side bus	- MHz
Processor operating modes	32-bit, 64-bit
Graphics & IMC lithography	22 nm
PCI Express configurations	1x1, 1x4, 2x1
Thermal Design Power (TDP)	7 W
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Storage media	Flash
Compatible memory cards	-
Internal storage capacity	64 GB
Display diagonal	12.1 \
Display brightness	900 cd/m²
Display resolution	1024 x 768 pixels
Graphics card	HD Graphics
Rear camera resolution (numeric)	- MP
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	2.0+EDR
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
HDMI ports quantity	0
USB 2.0 ports quantity	1
I/O ports	1x CAN-bus, RF
Processor ARK ID	78477
Processor socket	BGA 1170
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Platform	Windows
Bundled software	Data Collection Engine, Microsoft Internet Explorer, Microsoft on-screen keyboard, Configuration Cloning Utility, Screen Blanking, Zoom Zone, Launcher
Operating system installed	Windows 7
AC adapter input voltage	90 - 240 V
Battery capacity	- mAh
Battery life (max)	0.5 h
Certification	EN 55024:2010, MIL-STD-810F, SAE-J1455, CCX
Device type	Tablet PC
Form factor	Slate
Product color	Grey, Silver
Protection features	Shock resistant, Vibration proof, Water resistant
International Protection (IP) code	IP66
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	62 mm
Width	318 mm
Height	260 mm
Weight	3000 g
