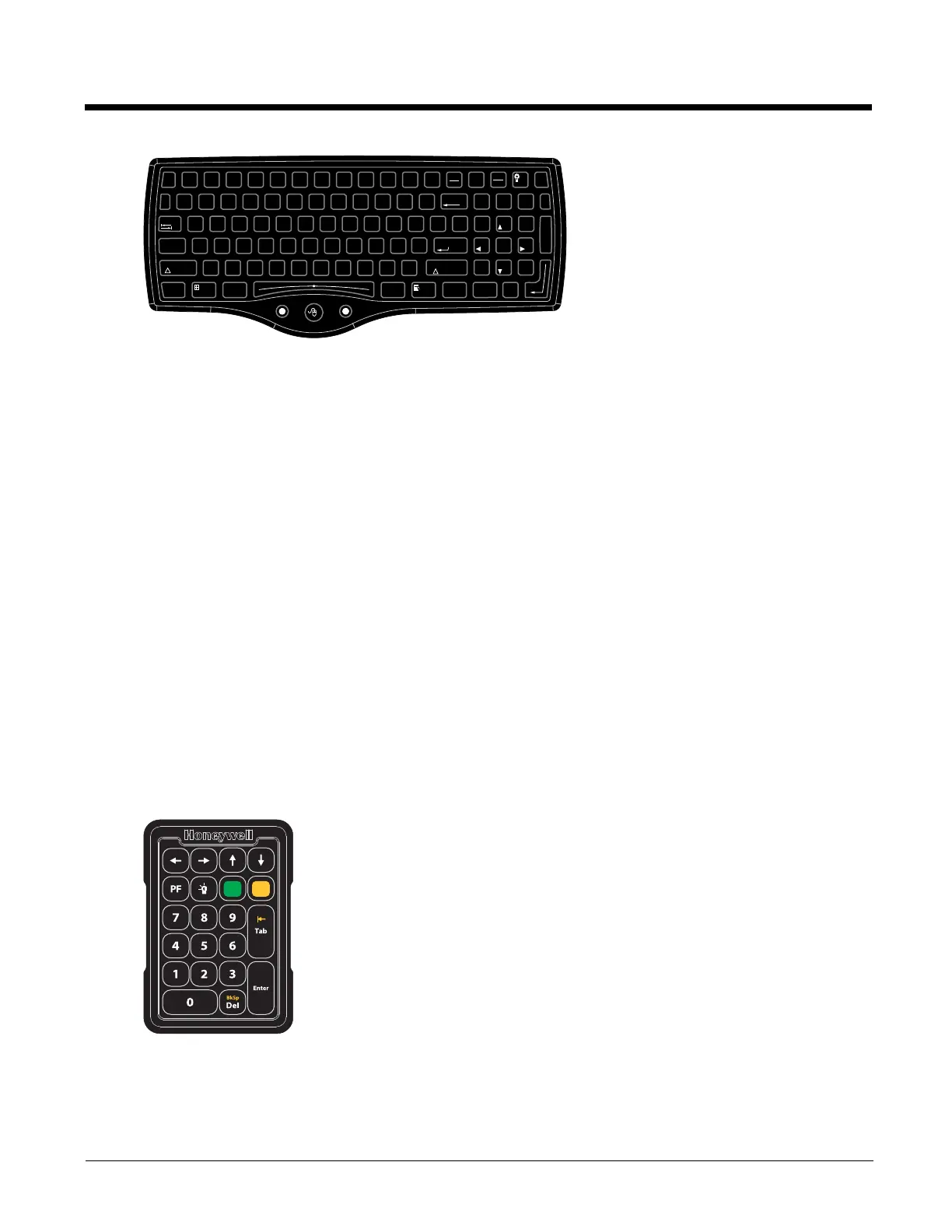

The Thor VM3 uses an optional rugged QWERTY 95 key keyboard, designed for ease of use with the Windows oper-
ating system. The USB keyboard connects directly to the D9 USB connector (Standard Dock) or USB1 connector
(Enhanced Dock).
• The 95 key keyboard supports all 104 keyboard functions (101 standard keyboard plus Windows keys) and includes
an integrated pointing device and left and right mouse buttons. However, because the keyboard only has 95 keys,
all functions are not visible (or printed on the keyboard). Therefore the keyboard supports what is called hidden keys
- keys that are accessible but not visible on the keyboard.
• The 95 key keyboard keys are backlit. The keyboard backlight is manually controlled.
Keyboard Backlight
The keyboard backlight key in the top right hand corner has a light bulb icon.
The keyboard keys are backlit. The keyboard backlight is manually controlled using the backlight key in the upper
right hand corner of the keyboard. Pressing the backlight key cycles the keyboard backlight through the levels of
backlight intensity: Off, Low intensity, Medium intensity, Maximum intensity, Off, etc. When the Thor VM3 is pow-
ered on, the keyboard backlight defaults to Off.
Since the keyboard is a USB device, by default the external keyboard backlight is turned off when the Thor VM3
enters Suspend. This behavior can be changed by enabling USB power in Suspend on the Misc tab of the
Options (page 5-43) control panel.
Since the keyboard is a USB device, by default the external keyboard backlight is turned off when the Thor VM3
enters Standby/Sleep. This behavior can be changed by enabling USB power in Standby/Sleep on the Options
(page 5-17)
control panel.
21-key Numeric Keypad
A numeric keypad is available for the Thor VM3 in applications where a full keyboard may not be needed. The USB
keyboard connects directly to the D9 USB connector (Standard Dock) or USB1 connector (Enhanced Dock).
Keyboard Backlight
The keyboard backlight key has a light bulb icon.
Esc
F2 F3 F4
F5
F6
F7
F8 F9 F10
F11
F12
Print
Screen
SysRq
Scroll
Lock
Pause
Break
Fn
`
1234567890
-
=
BackSpace
Num
Lock
/
*
-
Tab
QWE R T Y U I O P
[]
\
{}
|
789
456
12
0
3
Home PgUp
Caps
ASDFGHJ KL
;
'
:
"
Enter
Ctrl Alt
XCVB
N
M
,.
/
<>
?
Shift
Alt Ctrl
Ins
End PgDn
+
~
!
@
#
$%
^
&
*
(
)
_
+
Lock
Shift
Z
L
R
Enter
.
Del
F1

Honeywell Thor VM3 Specifications

General

Stepping	D0
Tjunction	-40 °C
FSB Parity	No
Processor code	SR1X8
Processor cache	1 MB
Processor cores	2
Processor model	E3826
System bus rate	- GT/s
Processor family	Intel Atom®
Processor codename	Bay Trail
Processor frequency	1.46 GHz
Processor cache type	L2
Processor manufacturer	Intel
Processor package size	25 x 27 mm
Conflict-Free processor	Yes
Processor front side bus	- MHz
Processor operating modes	32-bit, 64-bit
Graphics & IMC lithography	22 nm
PCI Express configurations	1x1, 1x4, 2x1
Thermal Design Power (TDP)	7 W
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Storage media	Flash
Compatible memory cards	-
Internal storage capacity	64 GB
Display diagonal	12.1 \
Display brightness	900 cd/m²
Display resolution	1024 x 768 pixels
Graphics card	HD Graphics
Rear camera resolution (numeric)	- MP
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	2.0+EDR
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
HDMI ports quantity	0
USB 2.0 ports quantity	1
I/O ports	1x CAN-bus, RF
Processor ARK ID	78477
Processor socket	BGA 1170
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Platform	Windows
Bundled software	Data Collection Engine, Microsoft Internet Explorer, Microsoft on-screen keyboard, Configuration Cloning Utility, Screen Blanking, Zoom Zone, Launcher
Operating system installed	Windows 7
AC adapter input voltage	90 - 240 V
Battery capacity	- mAh
Battery life (max)	0.5 h
Certification	EN 55024:2010, MIL-STD-810F, SAE-J1455, CCX
Device type	Tablet PC
Form factor	Slate
Product color	Grey, Silver
Protection features	Shock resistant, Vibration proof, Water resistant
International Protection (IP) code	IP66
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	62 mm
Width	318 mm
Height	260 mm
Weight	3000 g
