Honeywell Thor VM3 Manual

4 - 54
5. Carefully lift the front panel away from the device.
6. Position the replacement front panel so wiring connector on the back of the front panel lines up with the connector on
the Thor VM3.
7. Gently press the front panel into place.
8. Tighten the sixteen (16) captive M3 screws. In the order shown in the top figure above, use a #2 Phillips bit and torque
the screws to 7 ± 0.5 inch pounds.
9. Reinstall the Thor VM3 in the Smart Dock.
10. When the Thor VM3 is placed in the powered dock, the UPS battery automatically reconnects.
11. Restart the Thor VM3.
12. If adding or removing a defroster, update the Thor VM3 configuration by selecting Start > Settings > Control Panel >
Peripherals and tap the Test button.
13. If adding or removing a defroster, update the Thor VM3 configuration by selecting Screen Control. It may be
necessary to change the control panel to Large Icon or Small Icon view before selecting Screen Control. Tap the
Detect Defroster button and follow any on-screen prompts.
14. Close any open control panel windows.
15. If the replacement touch screen contains a resistive touch screen, perform a Touch Screen Calibration (page 5-42).
16. The Thor VM3 is ready for use.

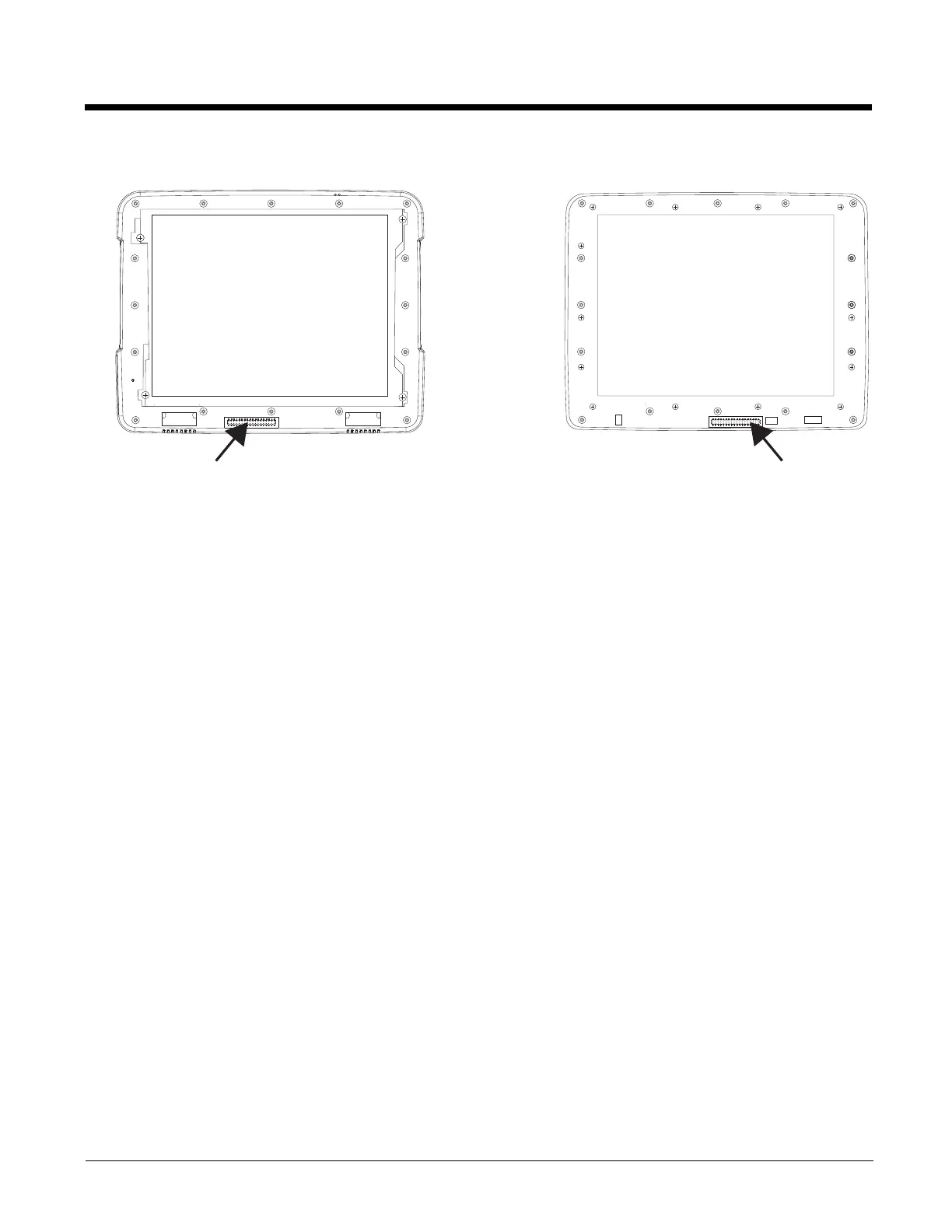

Wiring Connector
on Thor VM3
Wiring Connector
on Front Panel

Honeywell Thor VM3 Specifications

General

Stepping	D0
Tjunction	-40 °C
FSB Parity	No
Processor code	SR1X8
Processor cache	1 MB
Processor cores	2
Processor model	E3826
System bus rate	- GT/s
Processor family	Intel Atom®
Processor codename	Bay Trail
Processor frequency	1.46 GHz
Processor cache type	L2
Processor manufacturer	Intel
Processor package size	25 x 27 mm
Conflict-Free processor	Yes
Processor front side bus	- MHz
Processor operating modes	32-bit, 64-bit
Graphics & IMC lithography	22 nm
PCI Express configurations	1x1, 1x4, 2x1
Thermal Design Power (TDP)	7 W
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Storage media	Flash
Compatible memory cards	-
Internal storage capacity	64 GB
Display diagonal	12.1 \
Display brightness	900 cd/m²
Display resolution	1024 x 768 pixels
Graphics card	HD Graphics
Rear camera resolution (numeric)	- MP
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	2.0+EDR
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
HDMI ports quantity	0
USB 2.0 ports quantity	1
I/O ports	1x CAN-bus, RF
Processor ARK ID	78477
Processor socket	BGA 1170
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Platform	Windows
Bundled software	Data Collection Engine, Microsoft Internet Explorer, Microsoft on-screen keyboard, Configuration Cloning Utility, Screen Blanking, Zoom Zone, Launcher
Operating system installed	Windows 7
AC adapter input voltage	90 - 240 V
Battery capacity	- mAh
Battery life (max)	0.5 h
Certification	EN 55024:2010, MIL-STD-810F, SAE-J1455, CCX
Device type	Tablet PC
Form factor	Slate
Product color	Grey, Silver
Protection features	Shock resistant, Vibration proof, Water resistant
International Protection (IP) code	IP66
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	62 mm
Width	318 mm
Height	260 mm
Weight	3000 g
