3.3.2 EXL6 OCS Mounting Orientation

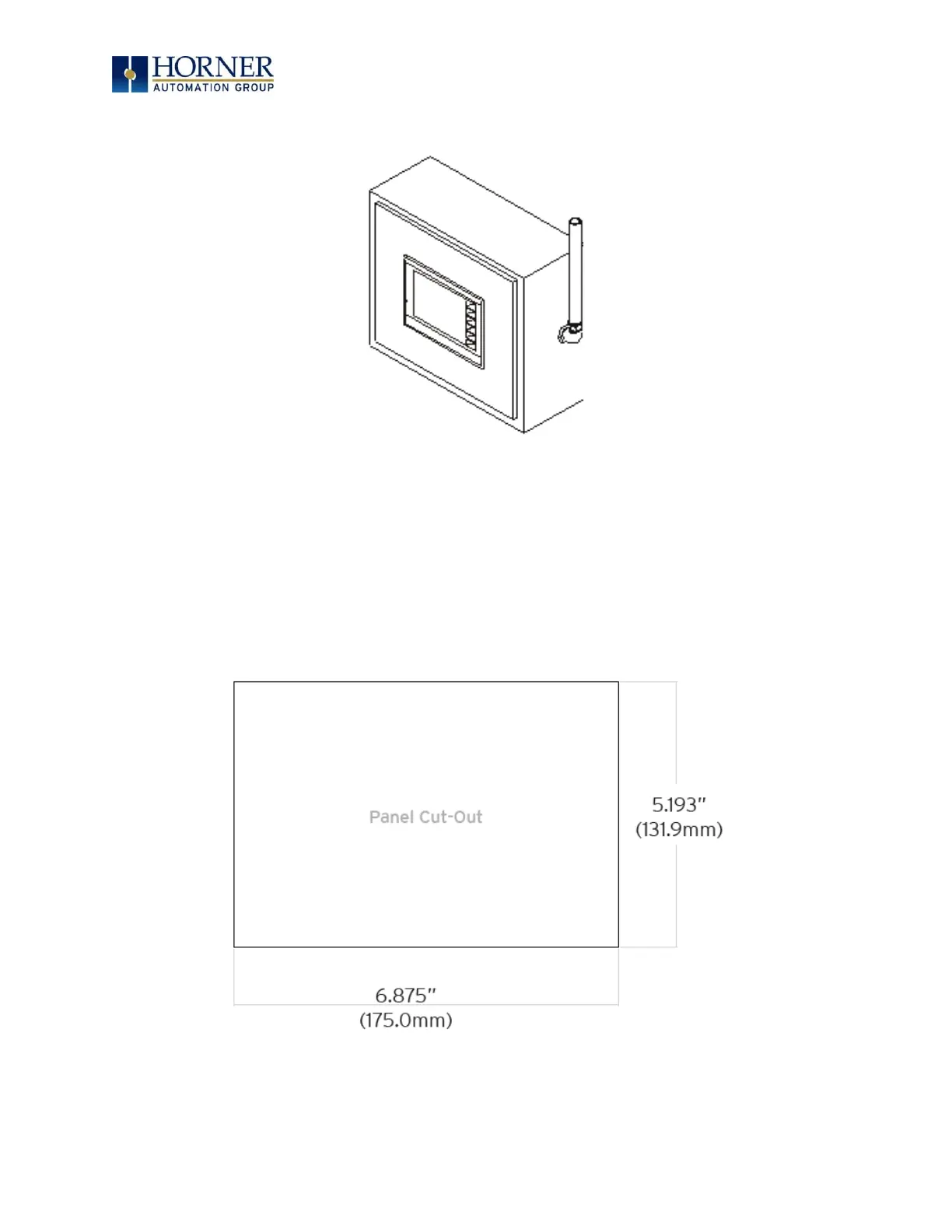

Figure 3.3 – Orientation of EXL6 OCS
NOTE: There are no orientation restrictions on the EXL6 OCS. However, the above orientation
provides for optimum readability of the screen and ease of use of the keypad.
3.4 Panel Cut-Out
For installations requiring NEMA 4X liquid and dust protection, the panel cutout should be cut
with a tolerance of + 1mm / -0mm.
Figure 3.4 – Panel Cutout
