4.4 Primary Power Port
Table 4.1 – Primary Power Port Pins
PIN
Signal
Description
Frame Ground
-
0V
Input power supply ground
+
+24V
Input power supply positive voltage

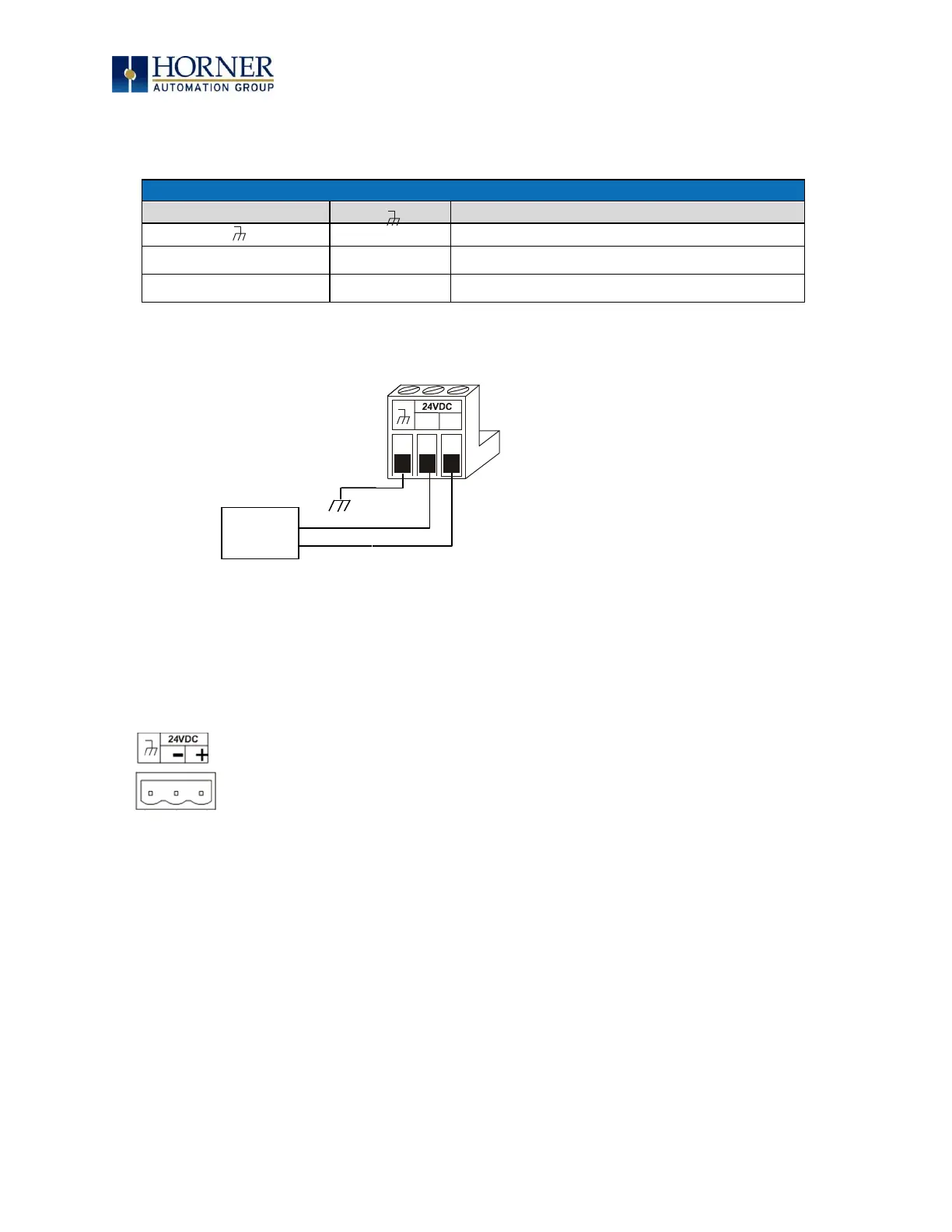

Figure 4.2 – Power Connector (Primary Power Port)
Figure 4.3 – Primary Power Port
10-30VDC
supply
-
+
+
-
D/C INPUT / FRAME
Solid/Standard Wire: 12-24 awg (2.5 - 0.2mm).
Strip Length: 0.28” (7mm).
Torque Rating: 4.5 – 7 in-lbs (0.50 - 0.78 N-m).
DC- is internally connected to I/O V- but is isolated from CAN-V.
A Class 2 power supply must be used
