CHAPTER 16: REMOVEABLE MEDIA
16.1 Overview
All XL4 OCS models provide a Removable Media slot, labeled Memory Card, which supports
standard microSD flash memory cards. microSD cards can be used to save and load
applications, to capture graphics screens and to log data for later retrieval.

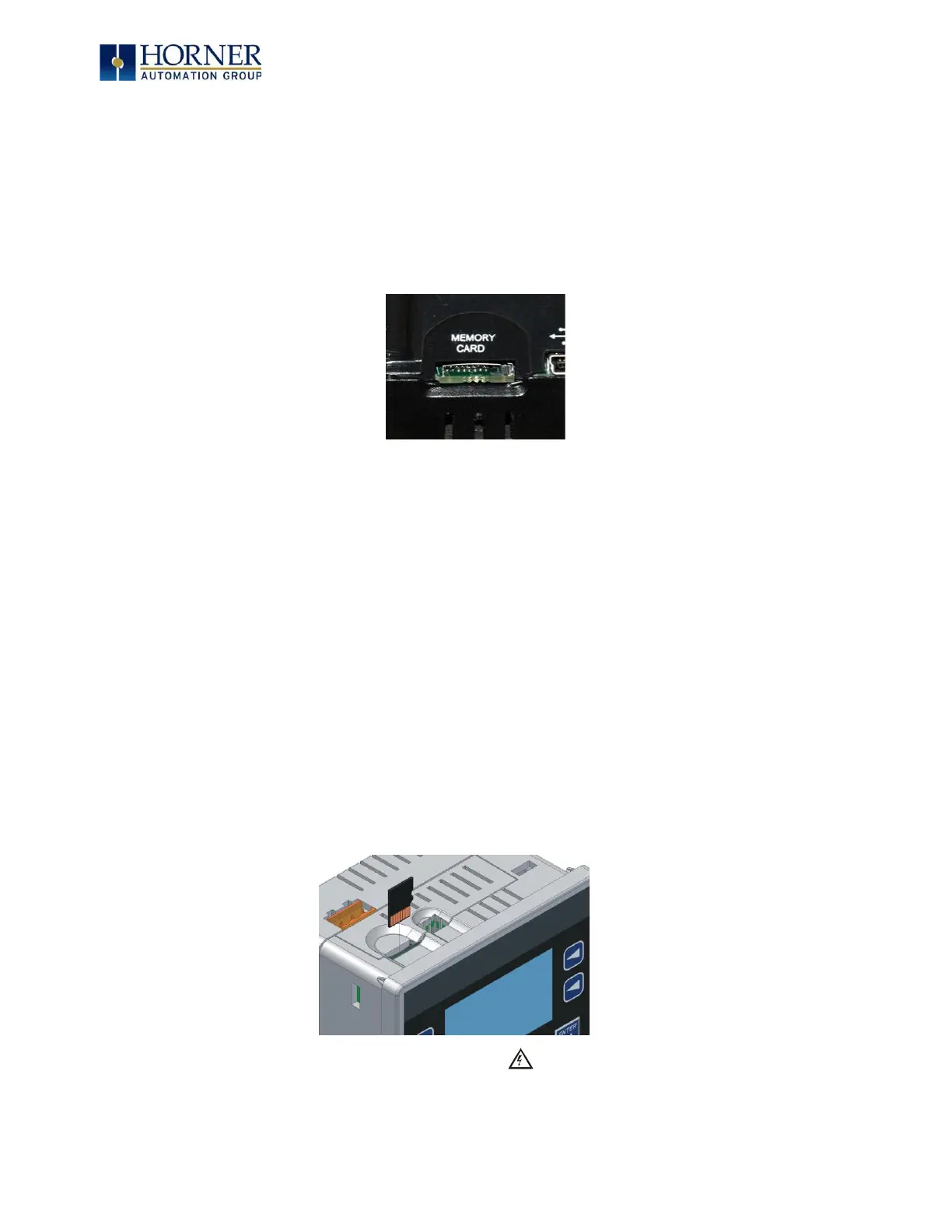

Figure 16.1 – Removable microSD Memory Card Slot
16.2 microSD Cards
When the microSD card format was introduced in 2004, it was originally called TransFlash.
Cards labeled either microSD or TransFlash, with up to 32GB of flash memory, are compatible
with the XL4 OCS Memory Card slot.
The Memory Card slot is equipped with a “push-in, push-out” connector and a microSD card
can be safely inserted into the Memory Card slot whether the XL4 OCS power is On or Off.
To install a microSD card:
Align its 8-pin gold edge connector down, facing the front of
the XL4 OCS unit as shown in Figure 16.2; then carefully push it all the way into the
Memory Card slot. Ensure that it clicks into place.
To remove the microSD card: Push down on the top of the card gently to release the
spring. The card pops up for removal.
Figure 16.2 – Installing Removable Memory Card
