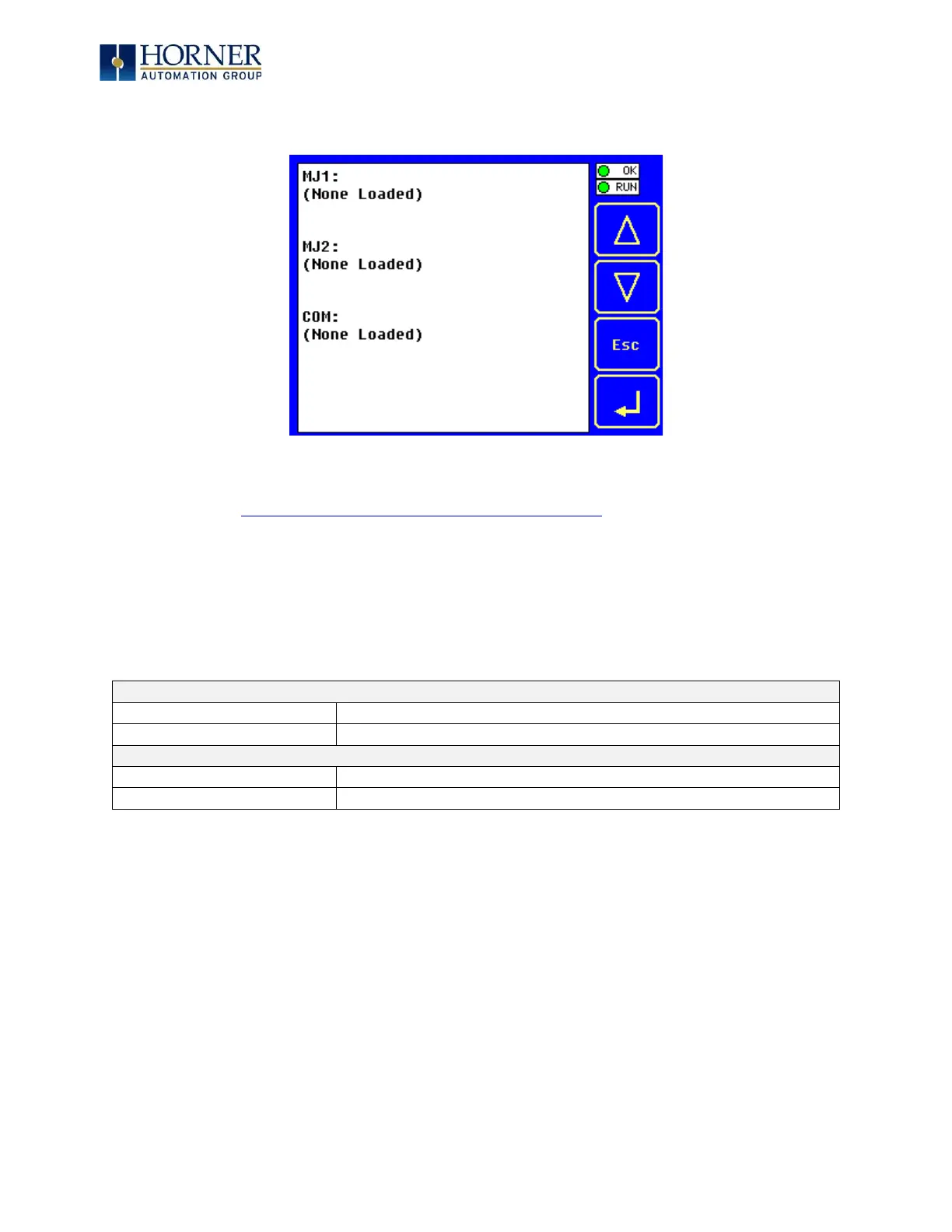

5.8 View Protocols
The View Protocols Sub-Menu displays three System Settings, none of which are editable.
As mentioned in Downloadable Serial Communication Protocols section, both the MJ1 (Port 1)
and MJ2 (Port 2) serial ports support downloadable protocols. To assign a downloadable
protocol to an XL4 OCS serial port, select the Protocol Config item in Cscape’s Program menu
and then setup a protocol for Port 1 or Port 2 (or both).
In the View Protocols Sub-Menu, the currently downloaded protocol, if any, and its version
number are displayed for both Port 1 and Port 2.
Port 1
Protocol Name
(None Loaded) or name of the protocol assigned to MJ1
Protocol Version
Blank or version of the protocol assigned to MJ1
Port 2
Protocol Name
(None Loaded) or name of the protocol assigned to MJ2
Protocol Version
Blank or version of the protocol assigned to MJ2
