4.3 How to Test for Good Ground
In order to test ground resistance, a Ground Resistance Tester must be used. A typical Ground
Resistance Meter Kit contains a meter, two or three-wire leads, and two ground rods.
Instructions are supplied for either a two-point or a three-point ground test. Figure 4.1 shows a
two-point ground connection test.

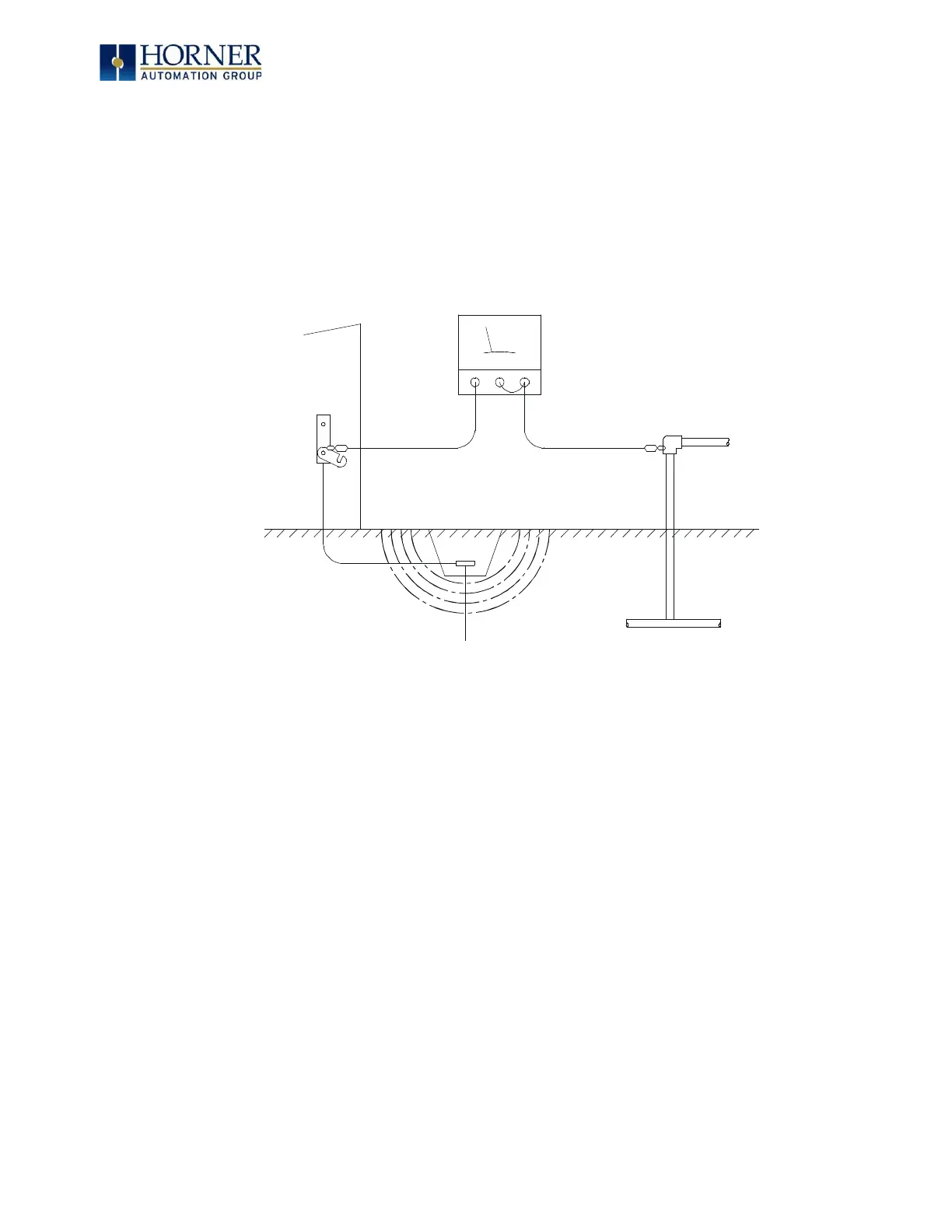

Figure 4.1 – Two-Point Ground Connection Test
