MAN0964-13-EN_XL4_UM
A u g u s t 6 , 2 0 2 1 P a g e 85 | 194

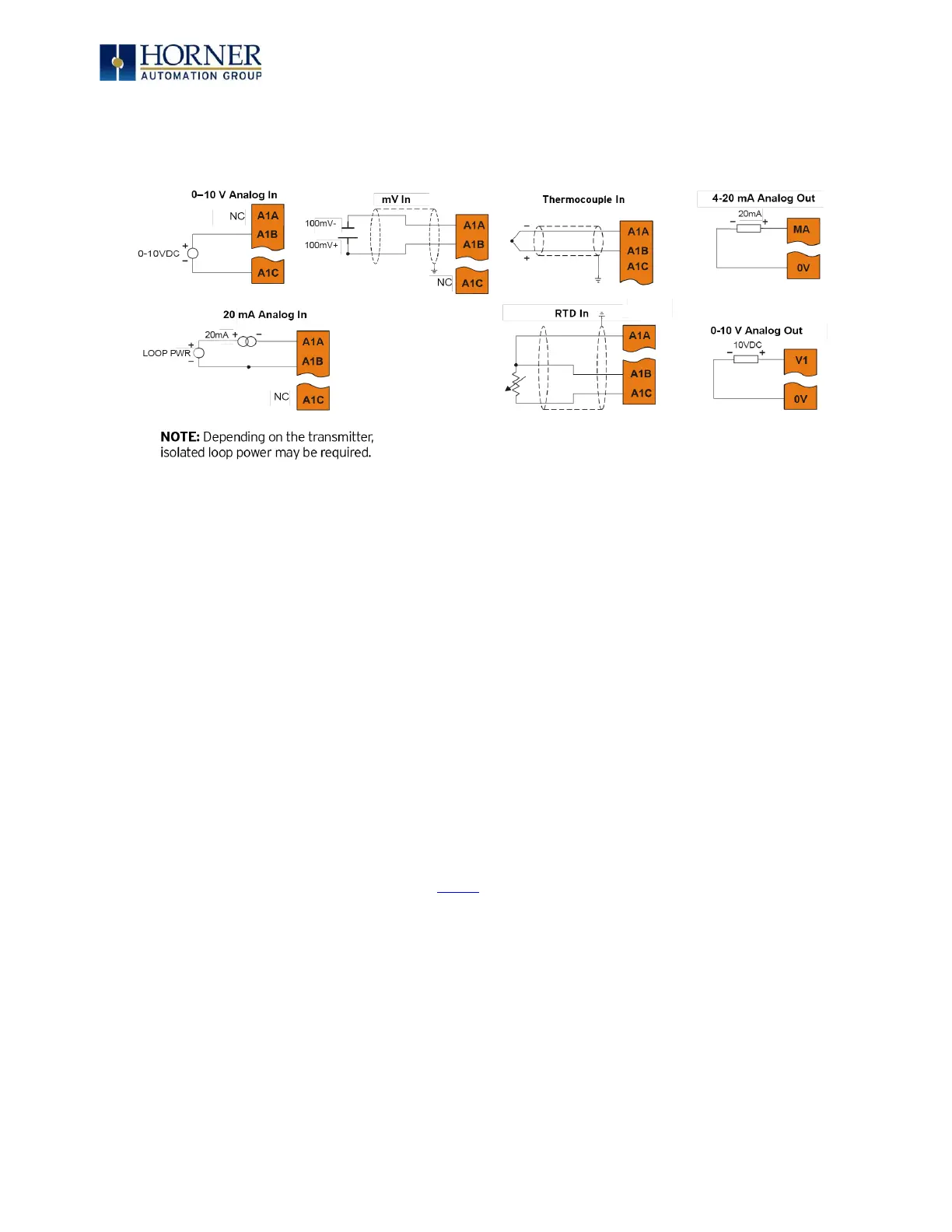

3) Ensure the proper wiring is used for each of the 3 pins A , B, and C on the Universal
Analog Inputs as seen in the reference image below
Figure 8.9 – Loop Power Requirements
8.9 Analog Outputs
NOTE: Refer to the datasheet for XL4 OCS model you are using for details on jumper settings.
The HE-XC1E6 does not require jumpers and only requires a configuration parameter in
Cscape.
The analog outputs on XL4 OCS devices provide high-resolution voltage or current outputs.
The voltage or current selection is controlled with jumpers and configuration settings in
Cscape.
NOTE: Each channel can be separately configured for voltage or current mode.
When the controller is stopped, the operation of each output is configurable. The outputs can
hold the state they were in before the controller stopped, or they can go to a predetermined
value. By default, analog outputs are set to a value of zero (0). For more information on Stop
State, refer to the appropriate pages (see Index) for the configuration chapter for Cscape
settings.
