7.7 Analog Input Configuration
The following figure illustrates the Analog Input Configuration dialog of a Model 2. To open
the I/O configuration dialogs, select Controller → Hardware Configuration → Local I/O →
Config (top button) → Module Setup.

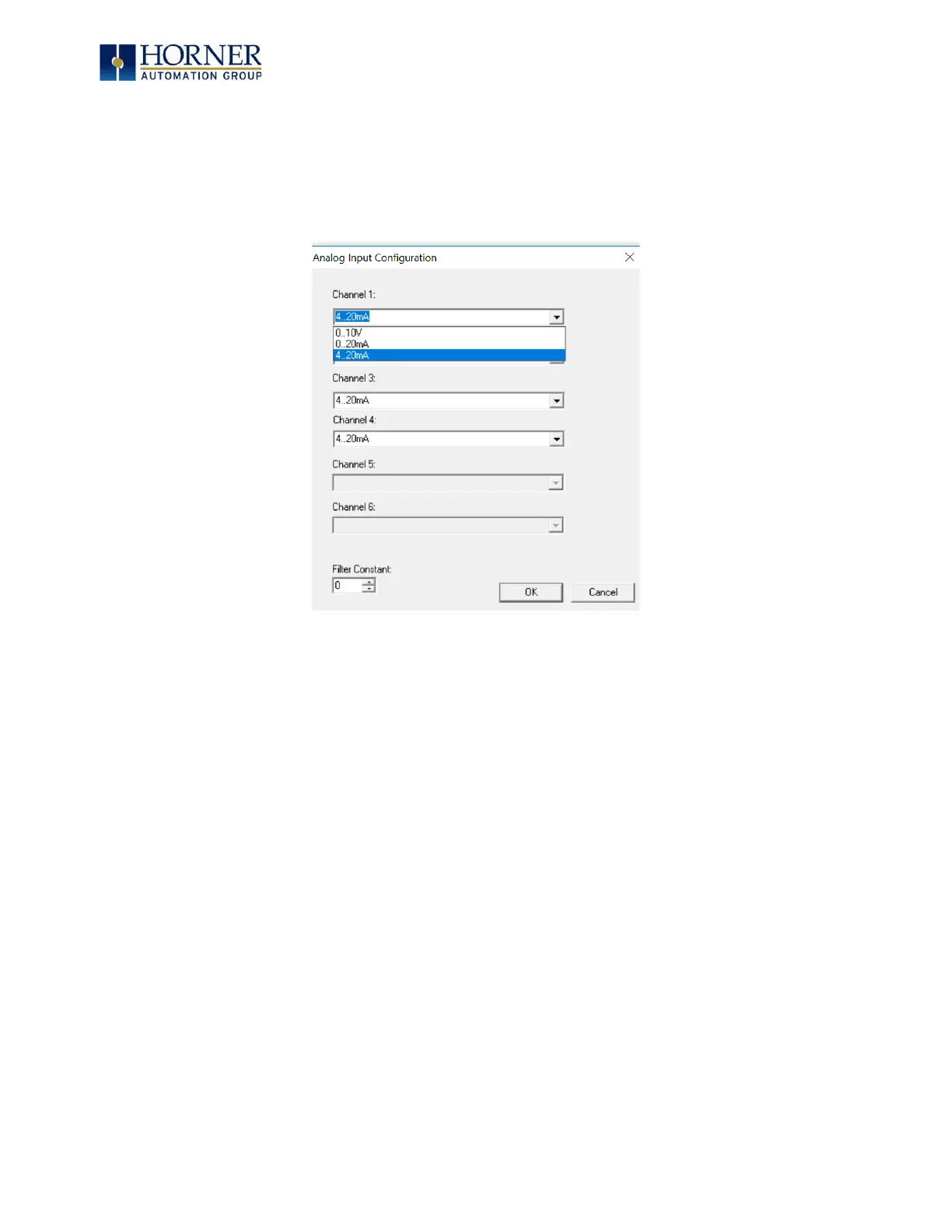

Figure 7.8 – Analog Input Configuration Dialog
The Channel x drop down windows allow the user to specify the mode for each analog input to
operate. The Channel x drop down windows are enabled/disabled according to which model is
being configured. All the models have the following modes available: 0..10V, 0..20mA, and
4..20mA.
