INSTALLATION
Pull Arm
Preparation
Proceed as follows:
remove cover (B)
disconnect wiring from control board (C)
release 2 captive screws and remove control board (C)
remove 2 screws and transformer (G)
remove 4 screws and motor/gear assembly (D)
loosen 4 screws and remove end caps (E) and (F)

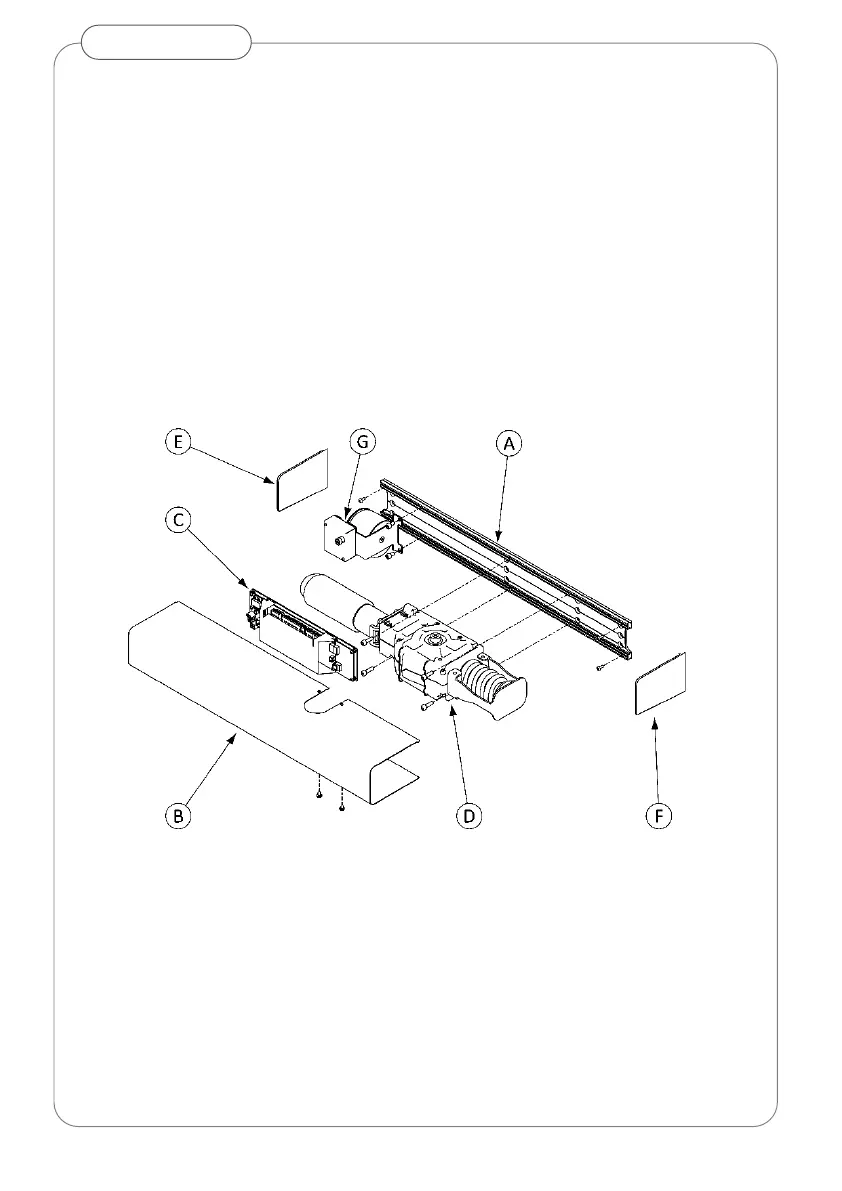

Fig.4 Exploded View
Mounting Operator
Position and secure the base plate in relation to pivot axis and door leaf, as
shown in Fig.5 dependent on door hand
The base plate outer edge should align with the pivot axis.
The base plate lower edge must parallel to door leaf top edge
The vertical dimension “L” between bottom of base plate and
top of door leaf is spindle length + 5mm (Fig. 3)
