Horton 4100-PLUS - Specifications

4
4100-PLUS S
SPECIFICATIONS
Dimensions
See Fig.1
Power Supply
230V ±10% AC 50/60Hz
Nominal Power
85w
Auxiliary power output
15vdc - 12w max
Opening Time
3s to 6s (70°/S to 20°/S)
Closing Time
4s to 15s (40°/S to 10°/S)
Manual Closer Rating (EN 1154)
4 to 6
Max Opening Angle
110°
Door Leaf Width
700 to 1200 mm
Max. Door Leaf Payload
See Fig.2
Working Temperature
-10°C to +50°C
Weight
11 Kg Approx.
Service
Intensive
IP
IP40

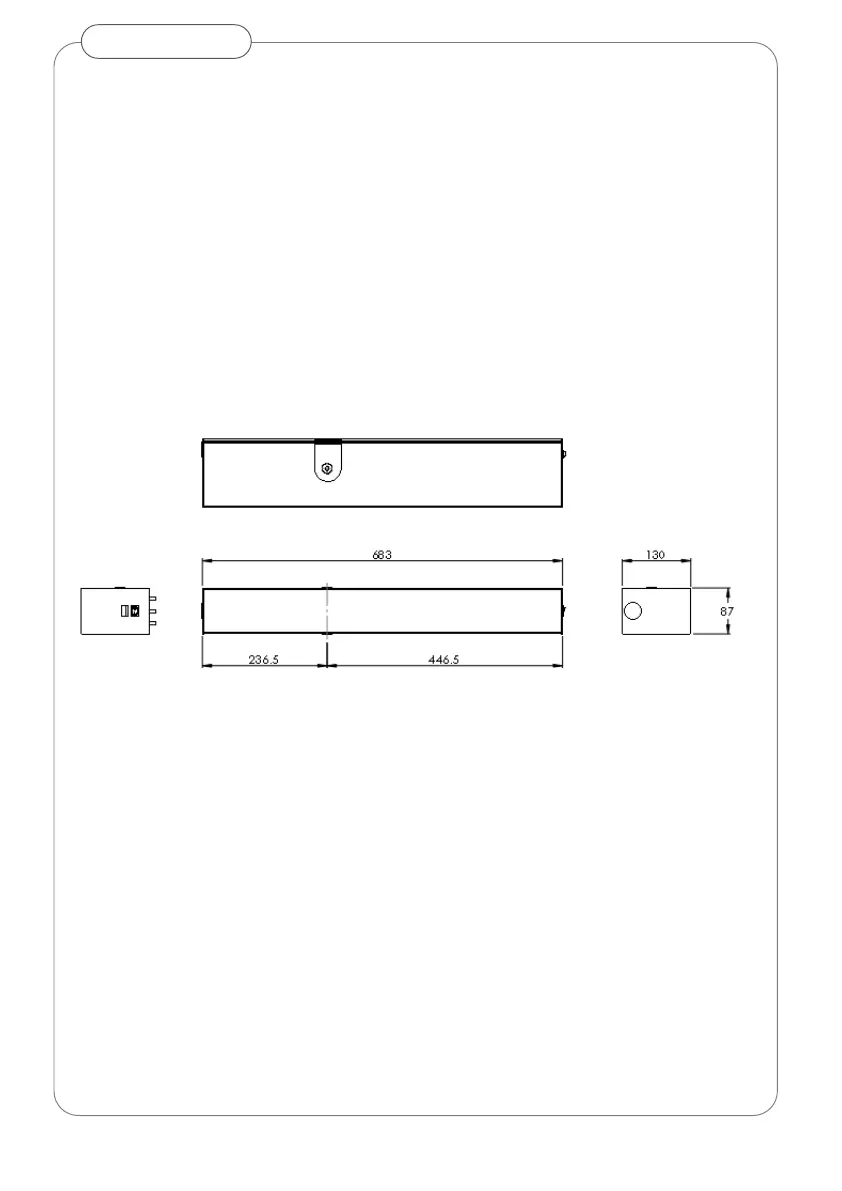

Fig.1 Dimensions
The Horton 4100-Plus S is an automatic swing drive system for pedestrian
use. Operating as fully automatic system or set to meet requirements of Low-
Energy application according EN16005. The device is intended for installation
in a dry, internally mounted position.
