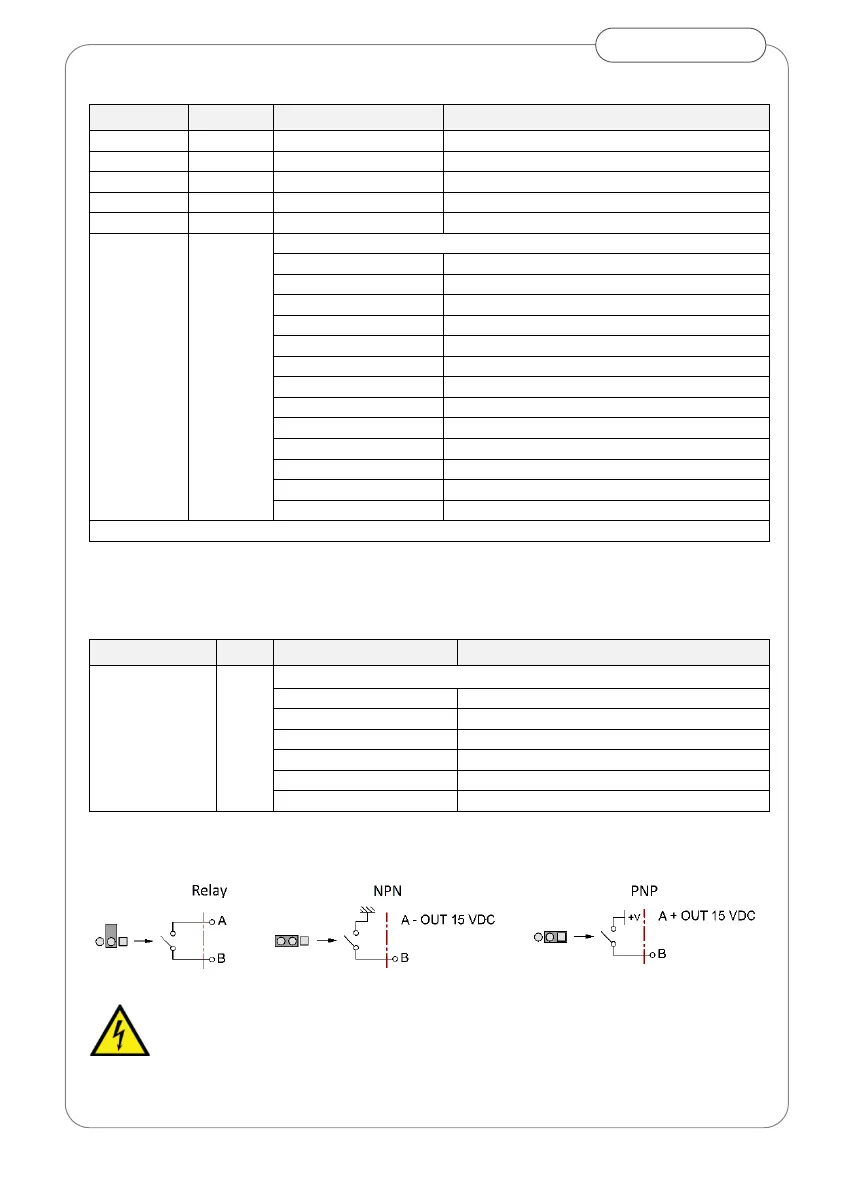

Horton 4100-PLUS - Auxiliary Outputs; Inputs

39
HORTON
Inputs
Input
Default
Description
Function
Key
NC*
Open Override
Door opens on impulse
Start 1
NO
Open Activation
Activates door in 2 radar logic mode only
Start 2
NO
Open Activation
Activates door in 1 & 2 radar logic mode
Safety Open
NC
Opening safety Input
Stops door opening if activated
Safety Close
NC
Closing safety Input
Re-opens closing door if activated
Aux In 1
&
Aux In 2
NO
Auxiliary input signal with programmable functions:
0 - DDA opening input
Command to cycle door in low energy mode
1 - Emergency open
Opens door with highest priority
2 - Interlock priority
Interlock synchronisation input, with priority
3 - Interlock no priority
Interlock synchronisation input, without priority
4- Lock monitor
Input for lock status monitoring
5- lock release
Lock releases for manual operation.
6- Single door open
Master door opens in paired application.
7- Stand-by
Standby mode (unlocked & deactivated)
8-Standby reactivation
Reactivates door from standby mode
9-Step/step function
Impulse open / impulse closes function.
10- Fire alarm
Door closes and commands are disabled
11- Manual function
Manual operation / logic switch disabled
12- Stop closed
Door closed / logic switch disabled
NO / NC output can be changed – see parameter settings
*Key input should be set to normally open (NO) for UK standard operation
Auxiliary Outputs
Output
Form
Description
Function
AUX OUT 1
&
AUX OUT 2
NO
0 - Monitoring sensors
Monitoring of safety sensors.
1 - Inter lock
Synchronisation output - interlock operation
2 - Door opened
It signals door in opened position.
3 - Door closed
It signals door in closed position.
4 - Fault
It signals door in fault.
5- Lock command
Repeats the electric lock command
The form (NPN, PNP, Relay) of Auxiliary Outputs is set via adjacent jumpers
Auxiliary Outputs are rated at a maximum 24V ‐ 100mA
