Horton 4100-PLUS - Connect Safety Sensors

29
HORTON
7. Connect Safety Sensors

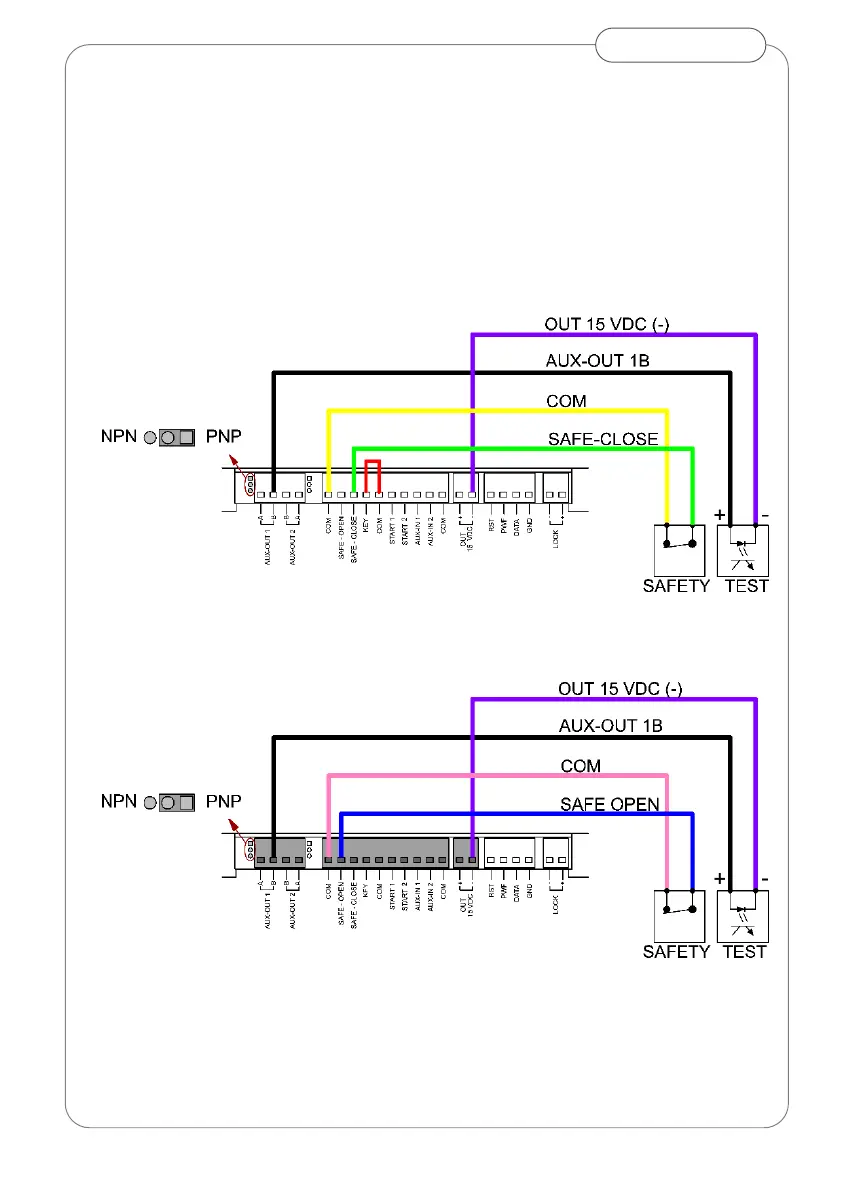

Safety Sensors Wiring (Optex OA Edge)
 Remove links from safe-open and safe close terminals Fig 19 J.
 Connect opening and close safety sensors as below.
 Set Aux Out 1 output to PNP via adjacent jumper
Closing face safety
Opening face safety
