Power Rating
The lock output is 12 or 24Vdc, 15Watts.
Since current (I) is equal to power (W) divided by Voltage (V)
Max current draw at 24V is 15W/24V = 0.625A (625mA)
Max current draw at 12V is 15W/12V = 1.25A
Providing a Lock Control signal for externally powered electric lock
It is possible to configure the Aux Output 1 or 2 outputs to emulate a lock
command signal via parameter settings. However, since the output contacts
are rated at a maximum of 100MmA max it is unlikely to be suitable for
switching power to an electric lock directly, it is preferable to use lock
output with relay as described below.

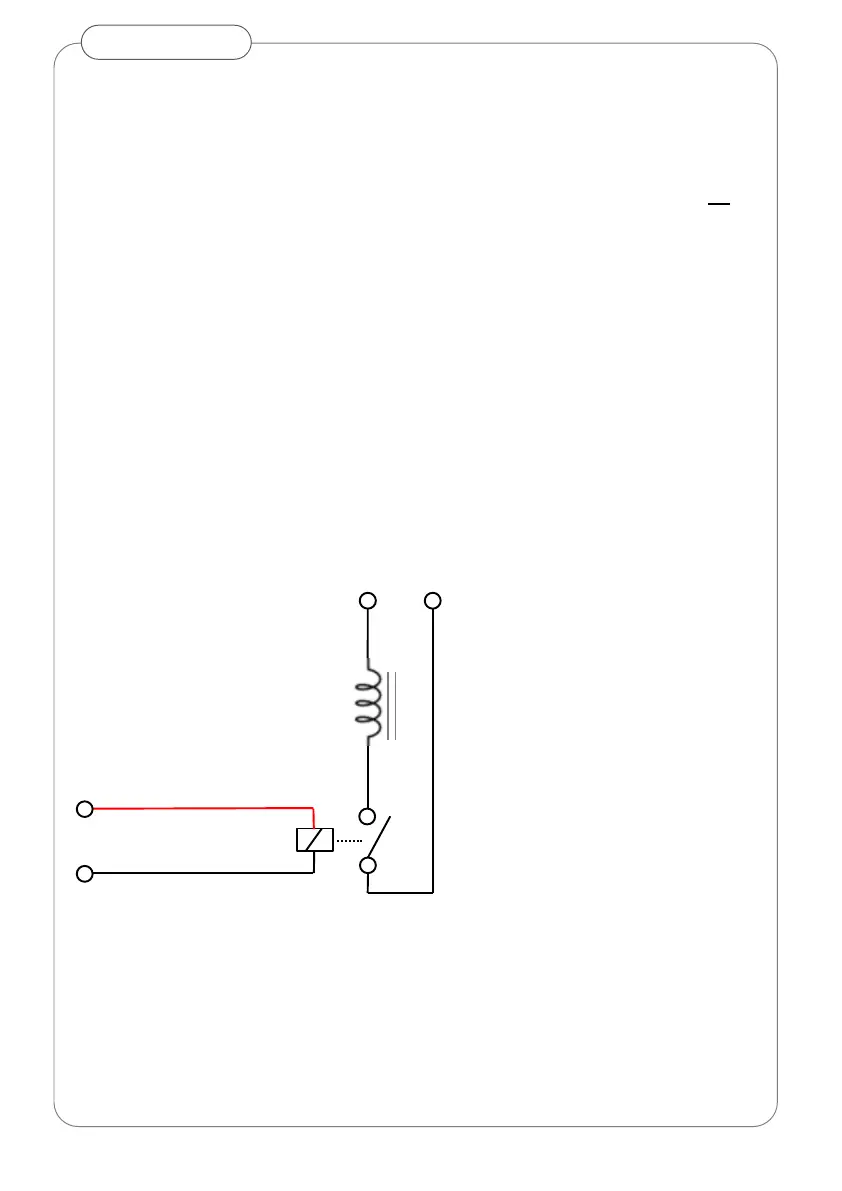

A higher rated electric lock than the operator power output can be
controlled by via a relay connected to the lock ‘power’ output.
