Horton 4100-PLUS - Connect Peripheral Devices

24
4100-PLUS S
6. Connect Peripheral Devices
Activation Devices

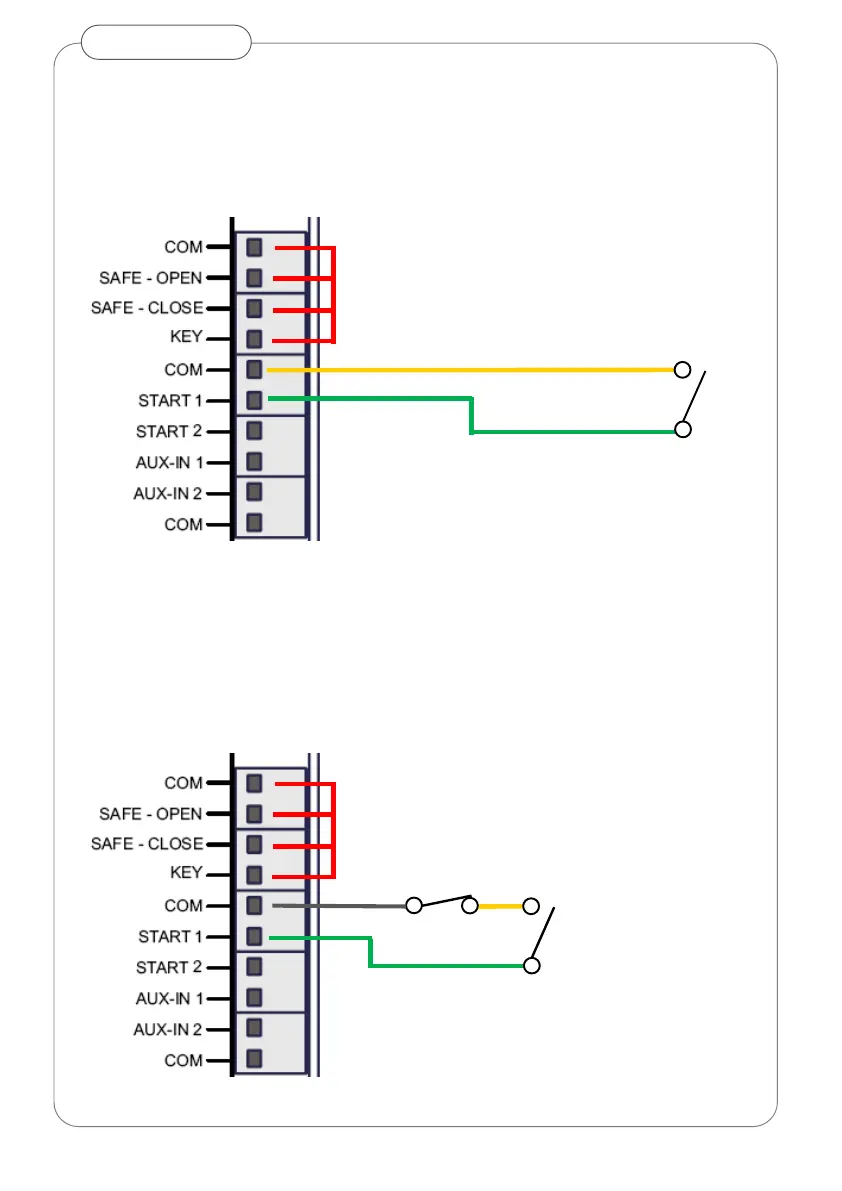

Activation devices wire to Start 1 input which is active in automatic modes
One-way Mode Selector
For one-way mode or to isolate specific activation inputs a key operated NC
switch contact is wired in series with device signal circuit.
Activation Device
Activation
Device(s)
One Way / Isolator
Key Switch
