Remote Mode Selector
With key operated remote mode selector installed, the drive has three
operating modes Automatic, Hold Open and Off. If installed the integral
mode switch selector is disabled.
In Off mode the drive can be configured to hold close by motor (engaging
electric lock if fitted) or remain free with spring closer for manual use via
parameter 15.
Configure operation in Off mode by parameter 15:
Door free for manual operation in Off mode
Door held closed/locked in Off mode

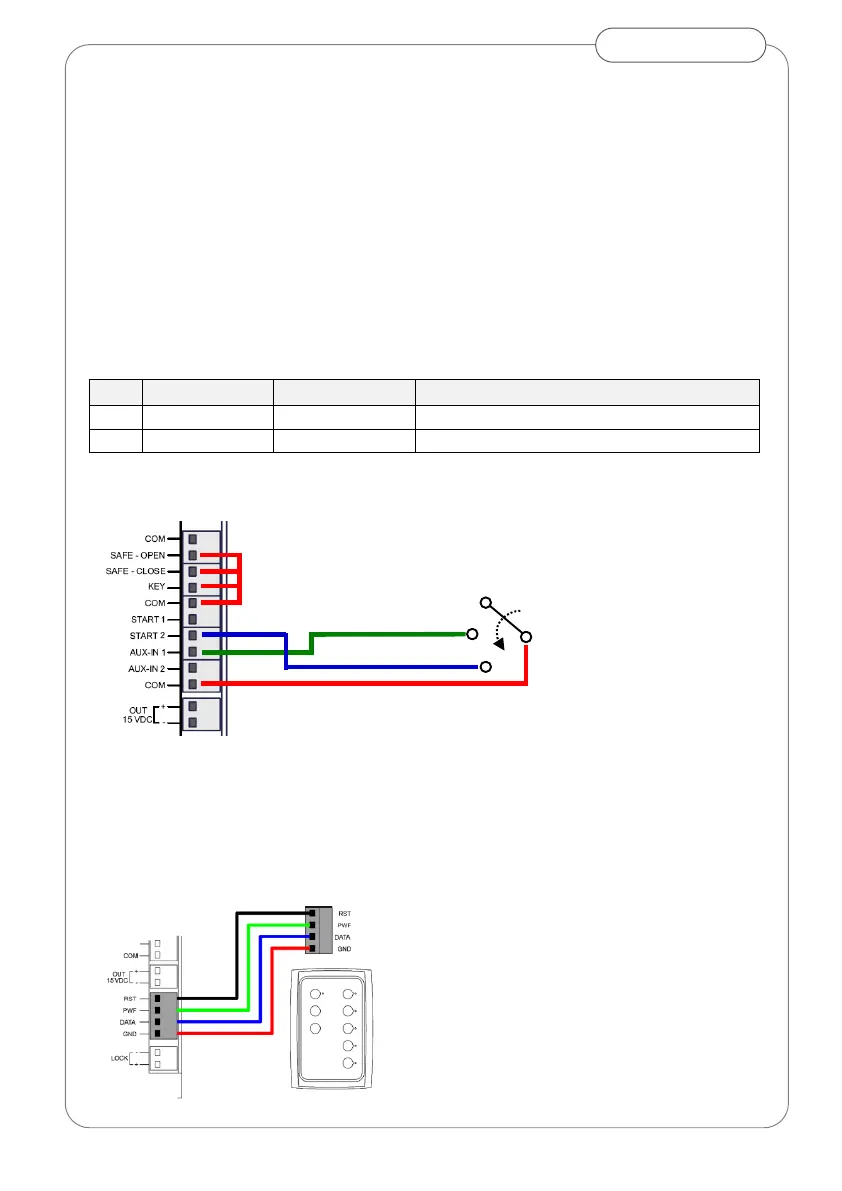

Wire mode selector to terminals Start 2, Aux IN 1 and COM
Standard (PF01.70) and Advanced (PF01.72) Mode Selectors
Optional standard & advanced mode selectors connect to terminal block L.
Use 4 core 0,22mm shielded cable. If installed the integral mode switch
selector is disabled.
1. Auto
2. Off
3. Hold Open
