Horton 4100-PLUS - Paired Operation

33
HORTON
COMMISSIONING PAIRED OPERATION
Paired Operation
To synchronise operation of a paired doorset:
 Initiate and commission each drive as described in preceding
sections

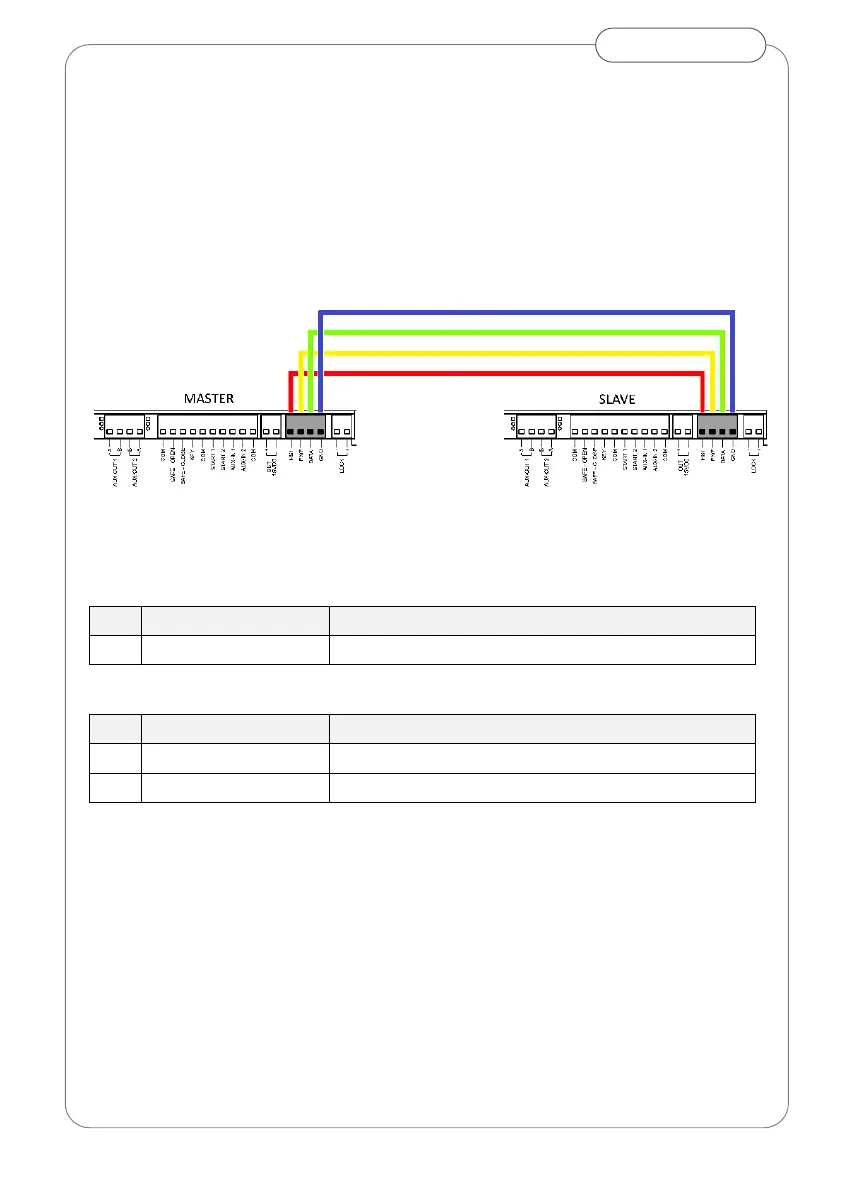

 Wire synchronisation cable connecting drives
 Define each operator as either master or slave via parameter 13
o Conventionally master door is first to open and last to close
ID
Description
Setting
13
Drive definition
0= Single, 1= master, 2= slave
If doors are rebated, set timing for sequenced operation
ID
Description
Setting
21
Opening sequence delay
0 – 100ms delay (0=synchronized)
22
Closing sequence delay
0 – 100ms delay (0=synchronized)
Note:
 Peripheral commands and remote mode selector connect to master
 Safety devices connect independently to each drive.
 Operating parameters (speed, Accl, sensor blanking, etc) are set on
each drive
 Closing cycle starts only after both doors have reached open.
 Electric lock operation is independent for each door.
 Obstructed closing affects both doors, causing them to re-open.
 Obstructed opening affects only the stalled door, causing it to stop
 Mains supplies should be derived from same source of isolation.
