2. Brake Adjustment
Adjust braking level to suit desired closing speed (without power) via
jumper connections on terminal board.
To increase closing speed – remove jumpers;
To decrease closing speed – install jumpers.

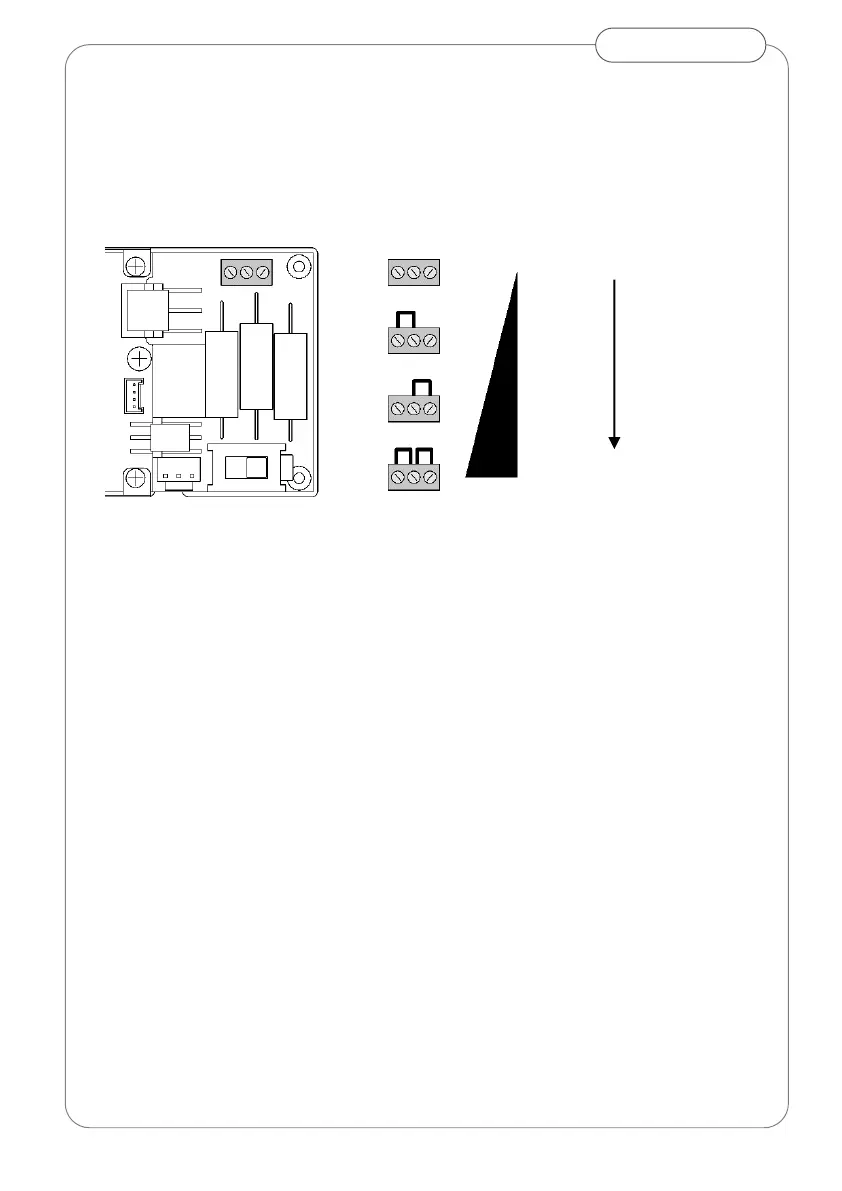

Fig.18 braking level
Drives are supplied with all jumpers connected for max braking.
Minimum Braking
Maximum Braking
