Horton 4100-PLUS - Inter-Lock Function

34
4100-PLUS S
Inter-lock Function
To set inter-lock function:

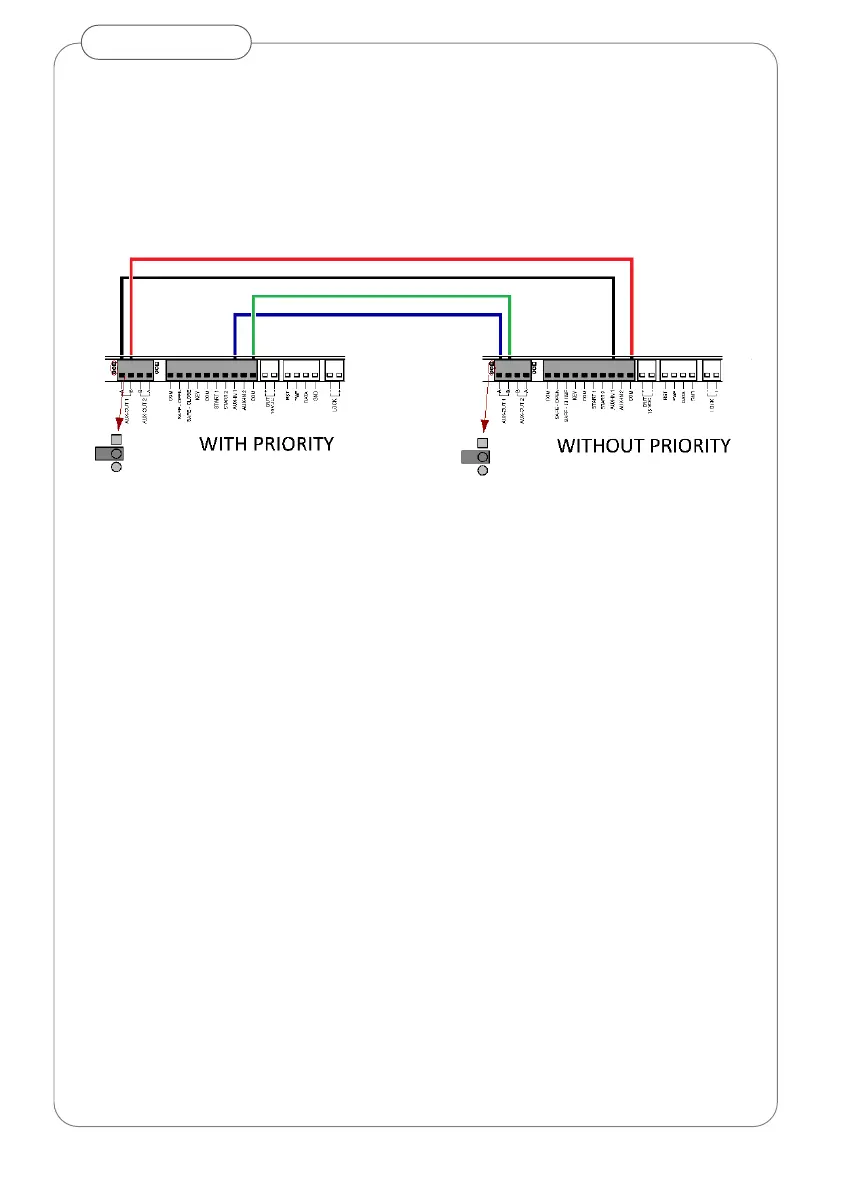

 Wire control signal connections below using 4x0,22 shielded cable
 Set Aux Out 2 to Relay form output by disconnecting jumper
 Set priority opening via parameters 16 and 17:
For paired doorsets the interlock connection is between master boards
