Horton 4100-PLUS - Page 9

45
5
25
86
150 max
75
(spindle + 5)
DETAIL C
PF18.09 70mm Spindle
PF 18.08 Push Arm
1

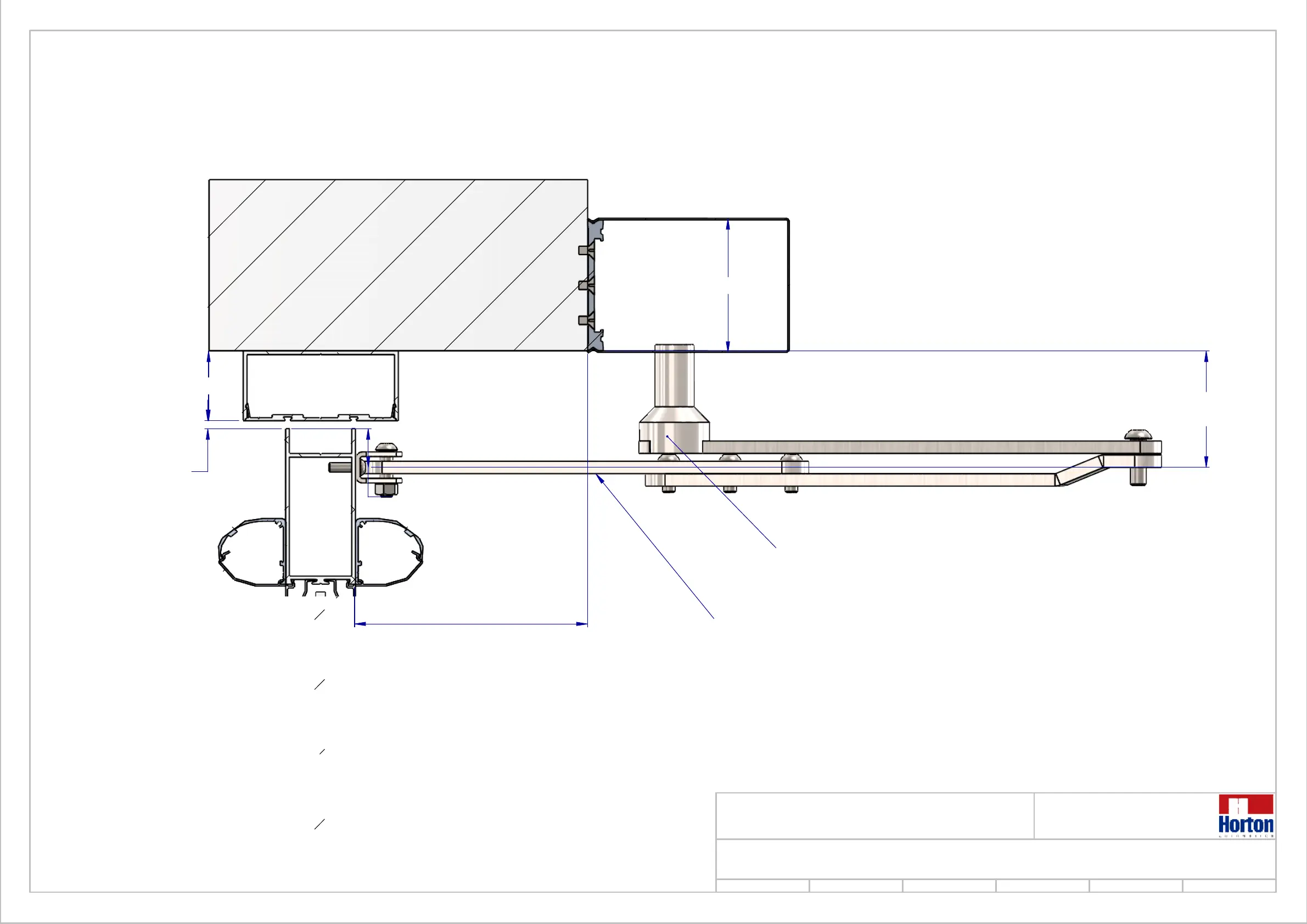

Lintel Mounted Push Arm Sht.2
Horton Automatics Ltd
Unit A - Hortonwood 31
Telford, Shropshire TF1 7YZ
Adam Wiggans
03/11/2016
SHEET 2 OF 3
SCALE:1:2
DESCRIPTION:
REVISION
DO NOT SCALE DRAWING
DATE:
DRAWN
DWG NO:
0102.4100-Plus S
Sht.2
DIMENSIONS IN MM
