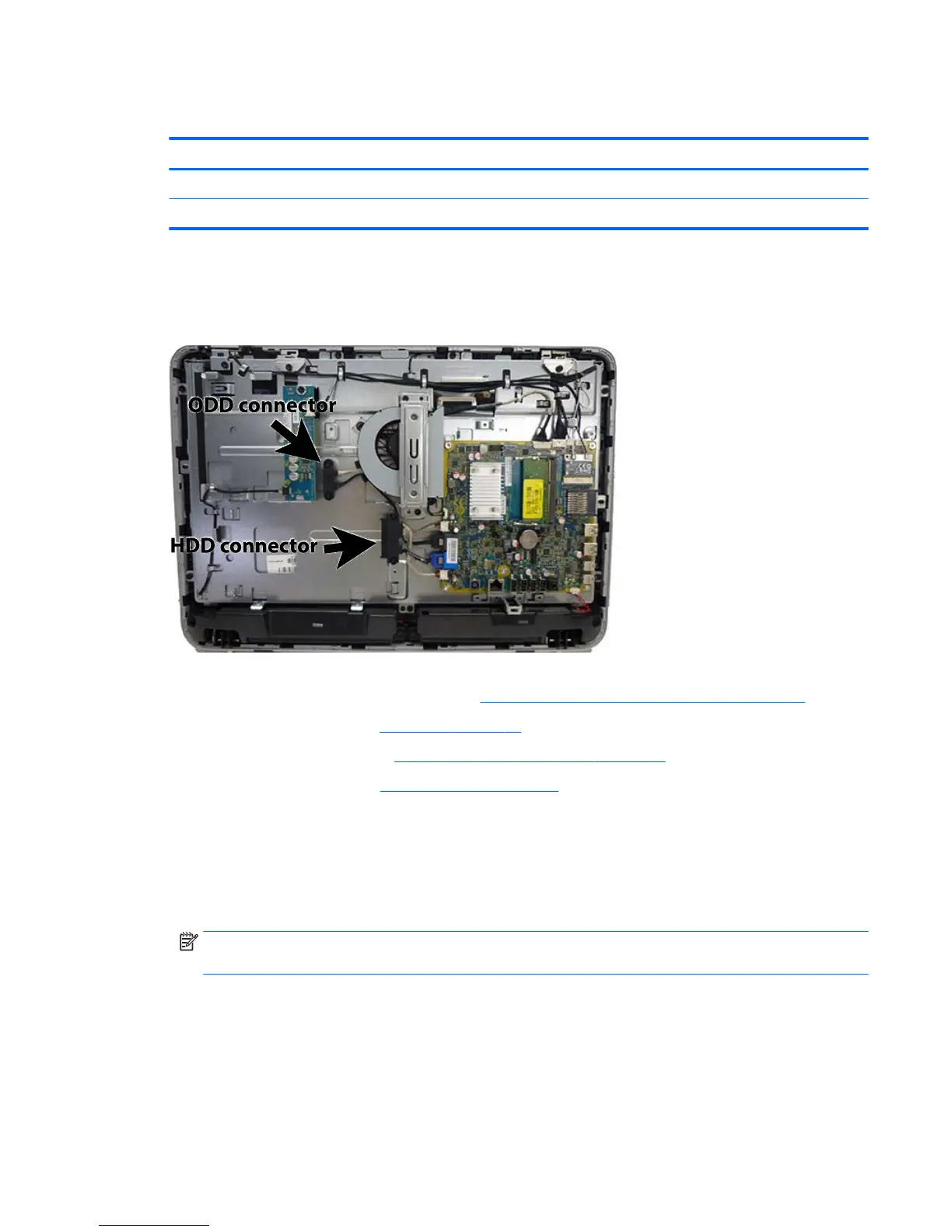

Hard drive and optical drive cables and connectors

Description Spare part number

Optical drive cable 752339-001

Hard drive cable 752338-001

The hard drive and optical drive connectors are located near the middle of the computer. Each connector is

secured with two Torx screws and has two cables that connect to the system board.

The optical drive connector cables are longer than the hard drive connector cables.

To remove the hard drive or optical drive connector:

1. Prepare the computer for disassembly (see Preparing to disassemble the computer on page 19).

2. Remove the rear cover (see Rear cover on page 20).

3. Remove the optical drive (see Replacing the optical disc drive on page 26).

4. Remove the hard drive (see Replacing drives on page 23).

5. Remove two Torx screws that secure the hard drive connector (1) or the optical drive connector (2) to

the computer.

6. Disconnect the hard drive cables (1) or the optical drive cables (2) from the system board.

The hard drive cables connect to the SATA_PWR0 and SATA0 connectors on the system board. The

optical drive cables connect to the SATA_PWR1 and SATA1 connectors on the system board.

NOTE: Be careful not to damage the cable when disconnecting it from the board. Do not pull on the

wires.

7. If removing the optical drive connector, remove the cable from the clips built into the fan (3).

Hard drive and optical drive cables and connectors 37
