HP 205 G1 User Manual

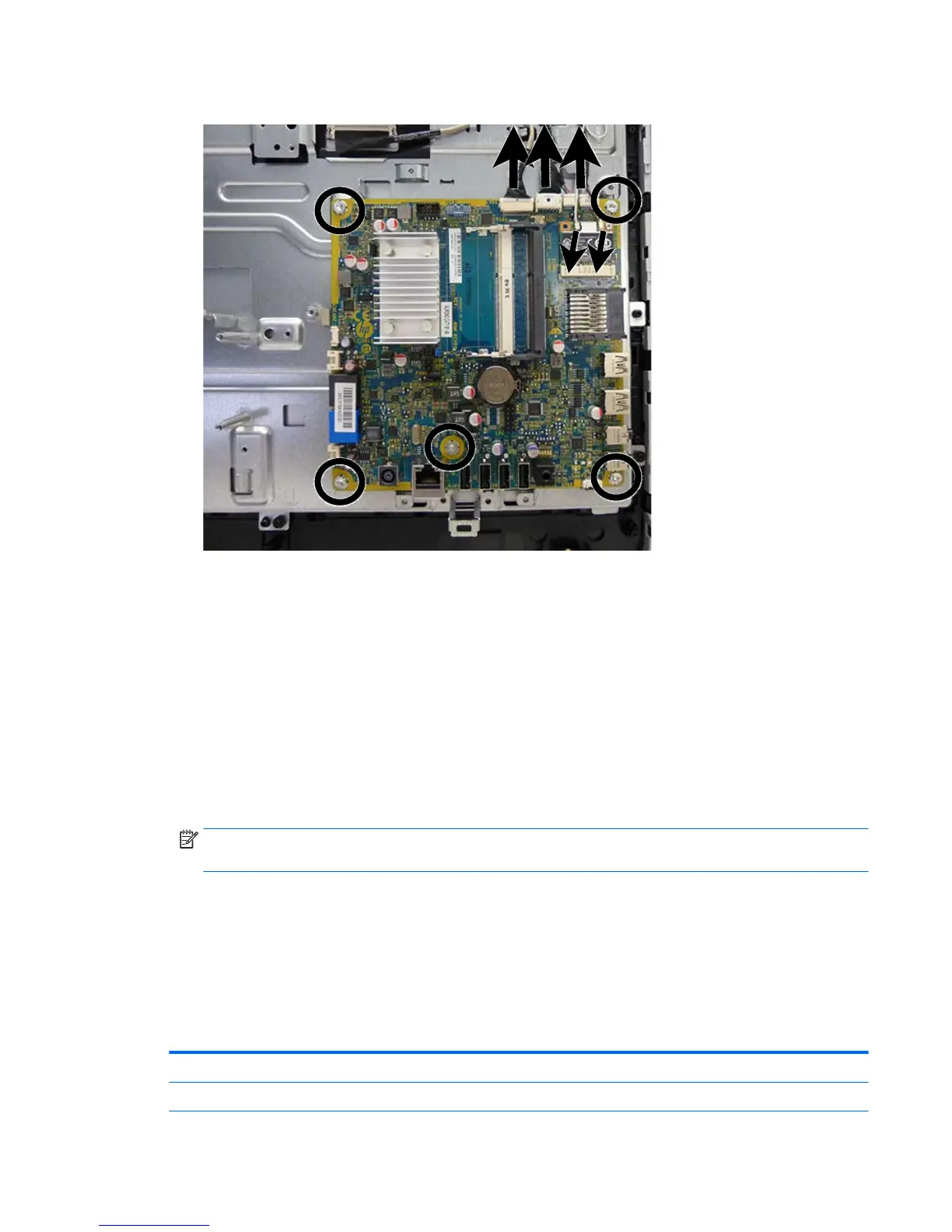

7. Remove the ve Torx screws that secure the system board to the computer.
8. Remove the system board.
To install the system board, reverse the removal procedures.
Updating SMBIOS Information
When replacing the system board, you must reprogram the SMBIOS information on the aected computer.
Failure to reprogram the board will result in eventual failure, such as an activation failure (need to reactivate
the system) or a system recovery failure.
To update SMBIOS information in Computer Setup:
1. Turn on or restart the computer.
2. Press Esc while the “Press the ESC key for Startup Menu” message is displayed at the bottom of the
screen.
NOTE: If you do not press Esc at the appropriate time, you must restart the computer and again press
Esc when the light turns white to access the utility.
3. Press F10 to enter Computer Setup.
4. Go to Security > System ID’s.
5. If necessary, press Ctrl+A to initiate edit mode.
6. Edit the elds listed. If the feature byte has data or is not editable, then it was not cleared and cannot be
edited.
System ID Setup Page
Setup Field Name
Comment Label
Product Name Enter the Model name/number or marketing name. Flexbuild
System board 47

HP 205 G1 Specifications

General

Full HD	No
LED backlight	-
Display diagonal	18.5 \
Display resolution	1366 x 768 pixels
Native aspect ratio	16:9
Processor cores	2
Processor model	E1-2500
Processor family	AMD E
Processor frequency	1.4 GHz
Processor manufacturer	AMD
Product type	All-in-One PC
Internal memory	4 GB
Memory slots type	SO-DIMM
Memory clock speed	1600 MHz
Internal memory type	DDR3-SDRAM
Maximum internal memory	8 GB
Memory layout (slots x size)	1 x 4 GB
HDD speed	7200 RPM
HDD interface	SATA
Storage media	HDD
Optical drive type	DVD Super Multi
Card reader integrated	Yes
Total storage capacity	500 GB
Storage drive interface	Serial ATA
Discrete graphics card model	Not available
On-board graphics card model	AMD Radeon HD 8240
On-board graphics card family	AMD Radeon HD 8000
Wi-Fi standards	Not supported
Ethernet LAN data rates	10, 100 Mbit/s
Headphone outputs	1
USB 2.0 ports quantity	4
Thunderbolt ports quantity	0
Operating system installed	Ubuntu Linux
Product color	Black, Silver
Country of origin	China
Total megapixels	- MP
AC adapter power	65 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	15 - 80 %
Sustainability certificates	ENERGY STAR
Cables included	AC

Weight and Dimensions

Depth (with stand)	72 mm
Width (with stand)	470 mm
Height (with stand)	329 mm
Weight (with stand)	5500 g
