Component Description
(4) Battery light
●
On: A battery is charging.
●
Blinking: A battery that is the only available
power source has reached a low battery level.
When the battery reaches a critical battery level,
the battery light begins blinking rapidly.
●
Off: If the device is plugged into an external
power source, the light turns off when all
batteries in the device are fully charged. If the
device is not plugged into an external power
source, the light stays off until the battery
reaches a low battery level.
(5) Wireless light
●
Blue: An integrated wireless device, such as a
wireless local area network (WLAN) device, is
on.
●
Amber: All wireless devices are off.
(6) Wireless switch Turns the wireless feature on or off, but does not
establish a wireless connection.
NOTE: A wireless network must be set up in order
to establish a wireless connection.

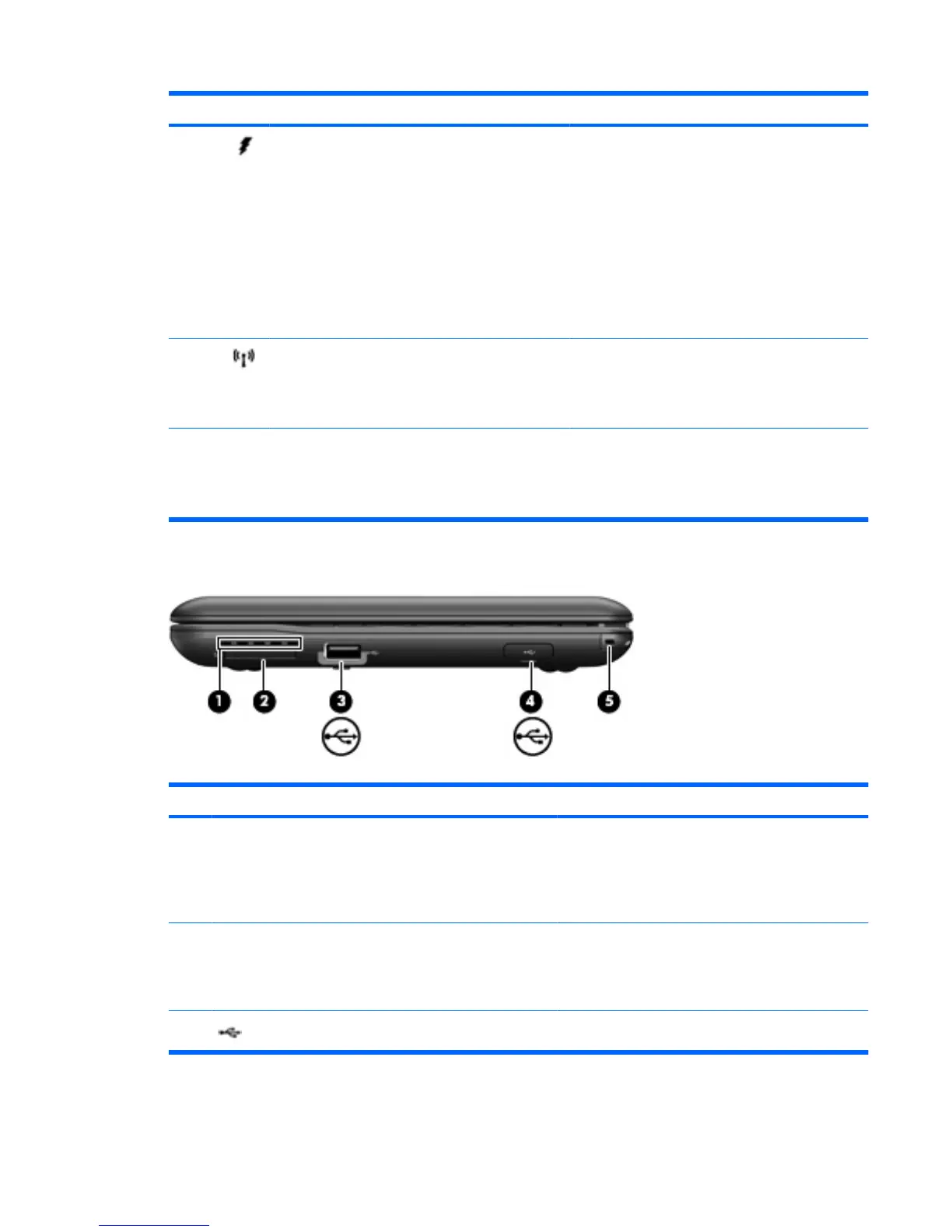

Right-side components
Component Description
(1) Vent Enables airflow to cool internal components.
NOTE: The device fan starts up automatically to cool
internal components and prevent overheating. It is
normal for the internal fan to cycle on and off during
routine operation.
(2) SD Card Reader Supports the following optional digital card formats:
●
MultiMediaCard (MMC)
●
Secure Digital (SD) Memory Card
(3) USB port Connects an optional USB device.
Identifying the hardware 7
