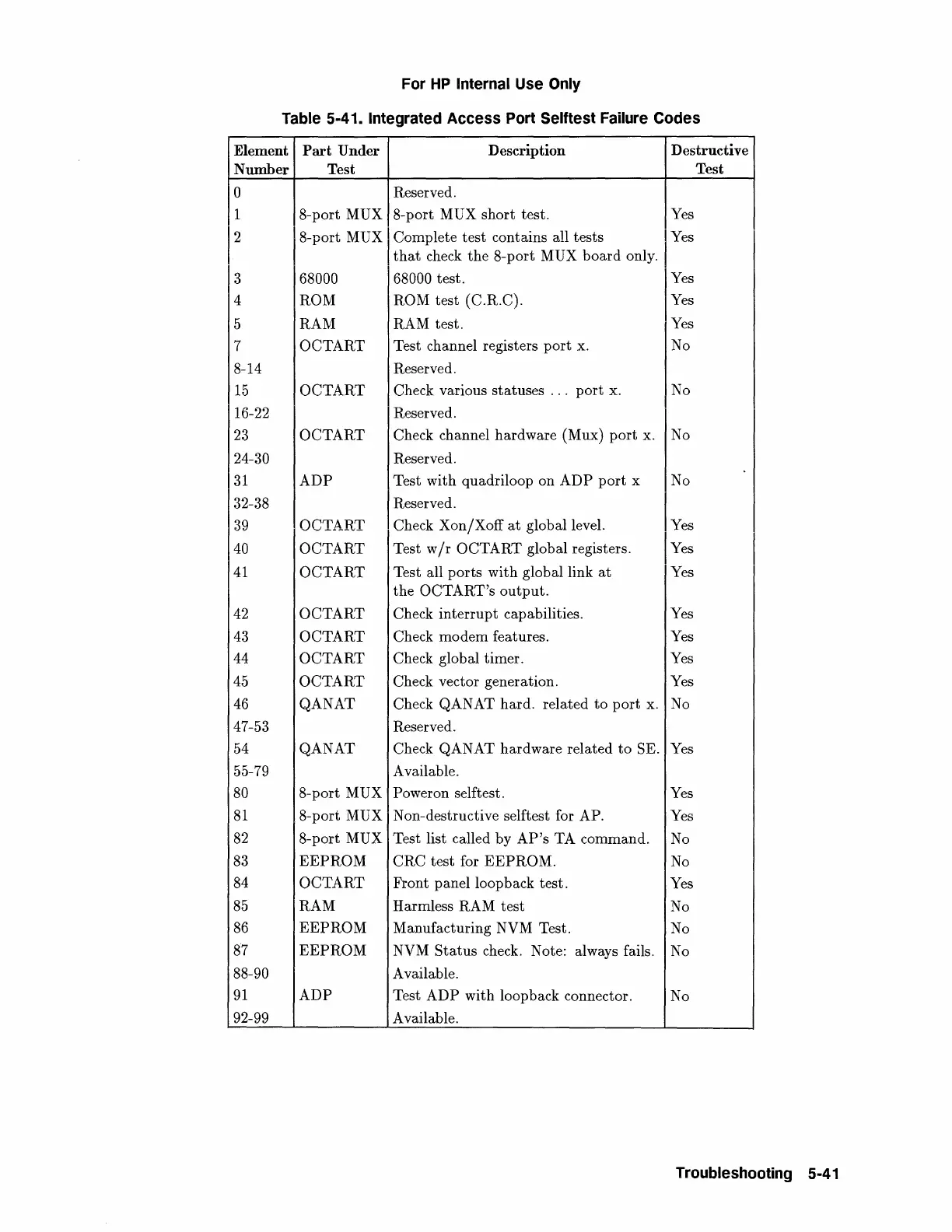

Table 5-41. Integrated Access Port Selftest Failure Codes
Element Part Under
Description
Destructive
Number Test
Test
0
Reserved.
1 8-port
MUX 8-port MUX short test.
Yes
12
18-port MUX I Complete test contains all tests I Yes
that check the 8-port MUX board only.
3
68000
68000
test.
Yes
4 ROM
ROM
test (C.R.C).
Yes
5
RAM
RAM test.
Yes
7 OCT ART
Test channel registers
port x. No
8-14
Reserved.
15 OCT ART
Check various statuses . . . port x. No
16-22
Reserved.
23 OCT ART
Check channel hardware (Mux) port x.
No
24-30
Reserved.
31
ADP
Test with quadriloop on ADP port x No
32-38
Reserved.
39
OCT ART Check Xon/Xoff at global level.
Yes
40 OCT ART
Test w
/r OCT ART global registers.
Yes
41
OCT ART
Test all ports with global link
at Yes
the OCTART's output.
42 OCT ART
Check interrupt capabilities. Yes
43 OCT ART
Check modem features.
Yes
44 OCT ART
Check global timer. Yes
45 OCT ART
Check vector generation. Yes
46 QANAT
Check QANAT hard. related to port x. No
47-53
Reserved.
54
QANAT Check QANAT hardware related to SE. Yes
55-79
Available.
80
8-port MUX Poweron selftest.
Yes
81
8-port MUX
Non-destructive selftest for AP. Yes
82
8-port MUX
Test list called by AP's TA command.
No
83
EEPROM
CRC test for EEPROM.
No
84
OCT ART
Front panel loop back test.
Yes
85
RAM Harmless RAM test
No
86 EEPROM Manufacturing NVM Test.
No
87 EEPROM
NVM Status check. Note: always fails.
No
88-90 Available.
91 ADP
Test ADP with loopback connector.
No
92-99 Available.
