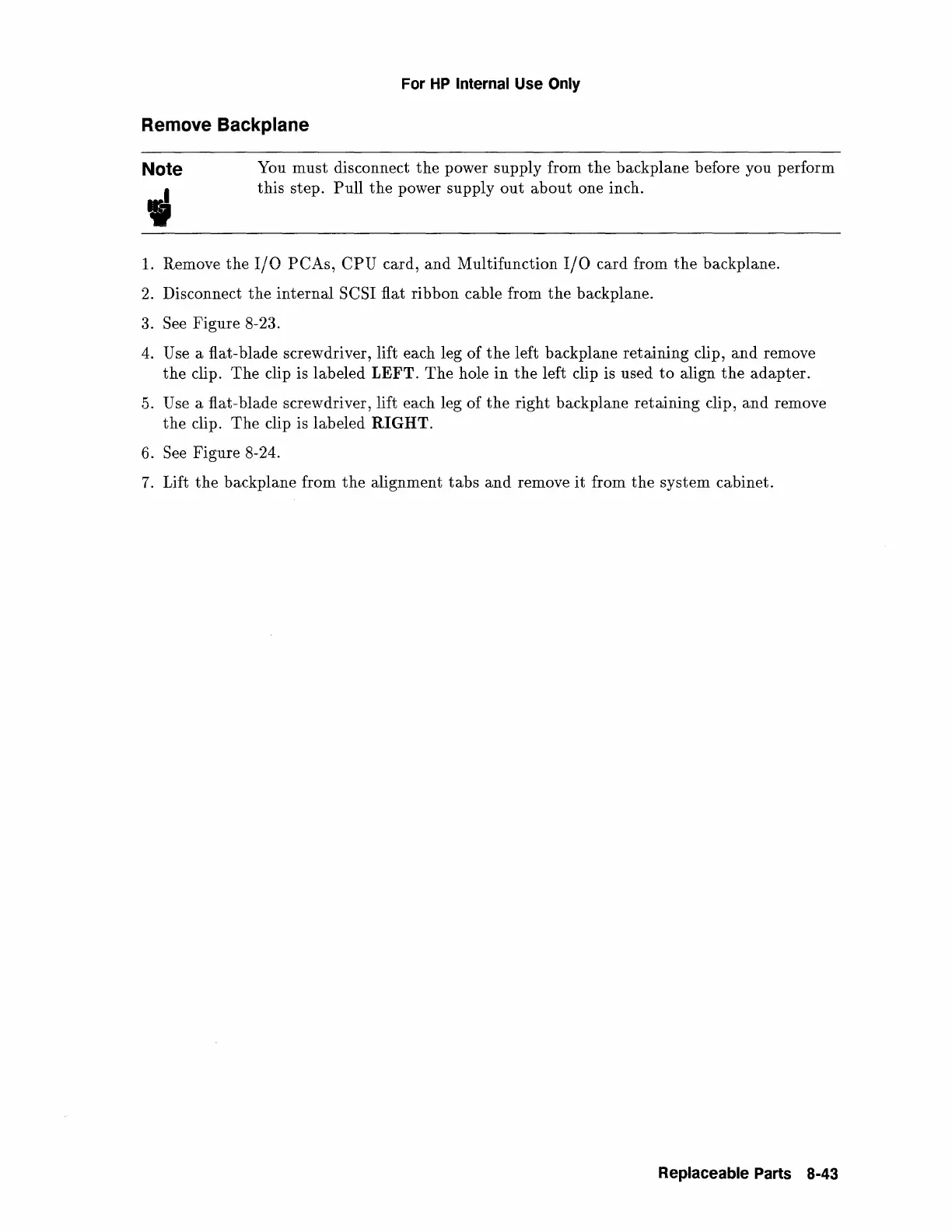

Remove Backplane
Note
"
You
must
disconnect
the
power supply from
the
backplane before you perform
this step.
Pull
the
power supply
out
about
one inch.
1.
Remove
the
I/0
PCAs,
CPU
card,
and
Multifunction
I/0
card
from
the
backplane.
2.
Disconnect
the
internal
SCSI flat ribbon cable from
the
backplane.
3.
See Figure 8-23.
4.
Use a flat-blade screwdriver, lift each leg
of
the
left backplane
retaining
clip,
and
remove
the
clip.
The
clip is labeled LEFT.
The
hole
in
the
left clip is used
to
align
the
adapter.
5. Use a flat-blade screwdriver, lift each leg
of
the
right backplane retaining clip,
and
remove
the
clip.
The
clip is labeled RIGHT.
6. See Figure 8-24.
7.
Lift
the
backplane from
the
alignment
tabs
and
remove
it
from
the
system cabinet.
