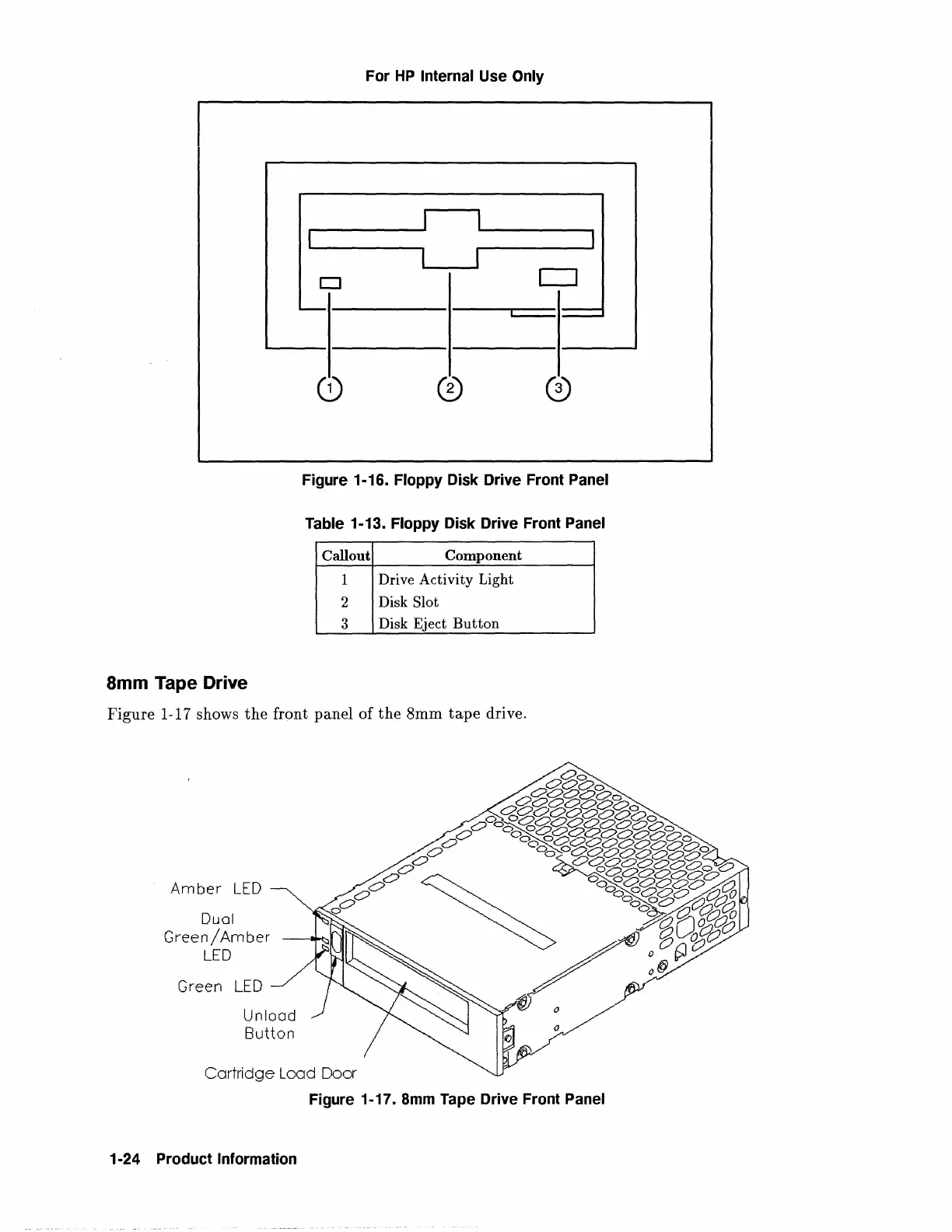

Figure 1·16. Floppy Disk Drive Front Panel
Table
1-13. Floppy Disk Drive Front Panel
Callout
Component
1
Drive Activity Light
2
Disk Slot
3
Disk Eject
Button
8mm Tape Drive
Figure 1-17 shows the front panel of the 8mm tape drive.
Amber LED
Dual
Green/Amber
LED
Green LED
Unload
Button
0
Cartridge Load Door
Figure 1-17. 8mm Tape Drive Front Panel
