For
HP
Internal Use
Only

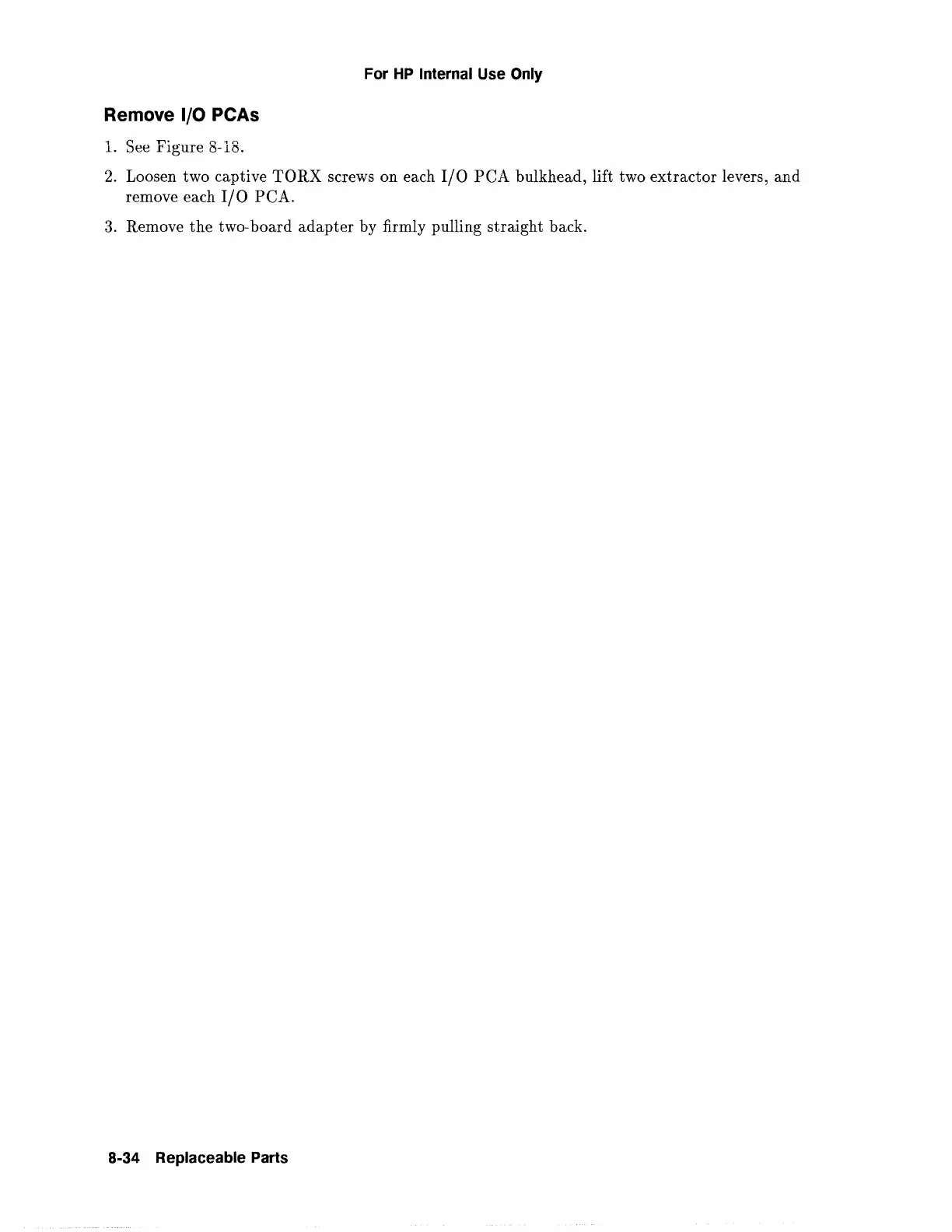

Remove 1/0 PCAs
1.
See
Figure 8-18.
2.
Loosen two captive
TORX
screws on each
I/0
PCA
bulkhead, lift two
extractor
levers, and
remove each
I/0
PCA.
3.
Remove the two-board
adapter
by firmly pulling straight back.
8-34 Replaceable Parts
