HP 3000 Series - Remove Floppy Disk Drive

For HP Internal Use Only
Remove Floppy Disk Drive
1. Disconnect the SCSI flat ribbon cable from the floppy disk drive.
2. Disconnect
the power connector from the floppy disk drive.
3.
See Figure 8-13.
4. Remove four
TORX screws and remove the floppy disk drive from the front of the
peripheral drawer.
Warning
Do not mix these screws with the system chassis screws. You will damage the
floppy disk drive if you attempt to mount
it with the system chassis screws.

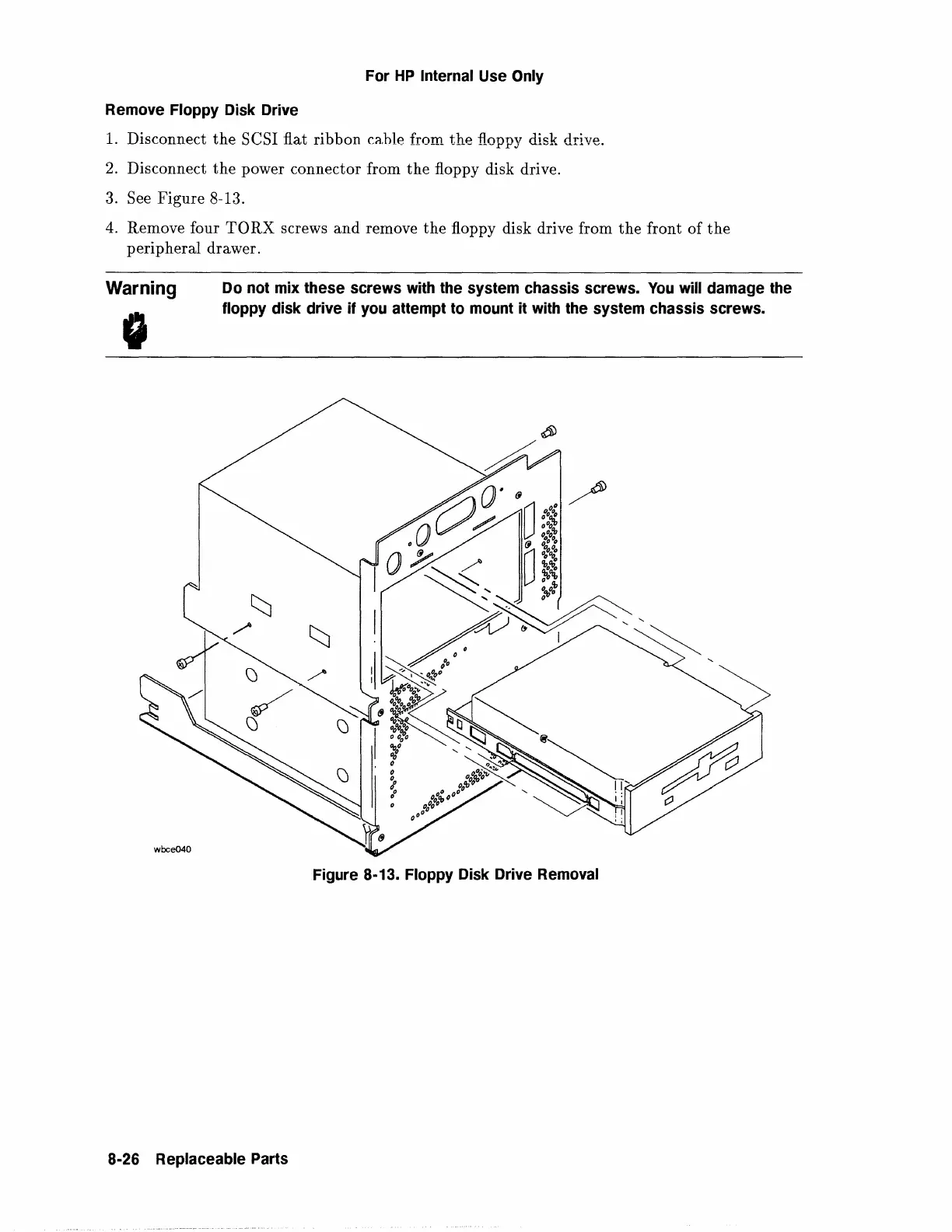

Figure 8-13. Floppy Disk Drive Removal
8-26 Replaceable Parts
