HP 3000 Series - Floppy Disk Drive Troubleshooting; Floppy Disk Drive Troubleshooting Tools

6. Replace the top panel.
Lock
Release
Tab
(
For HP Internal Use Only

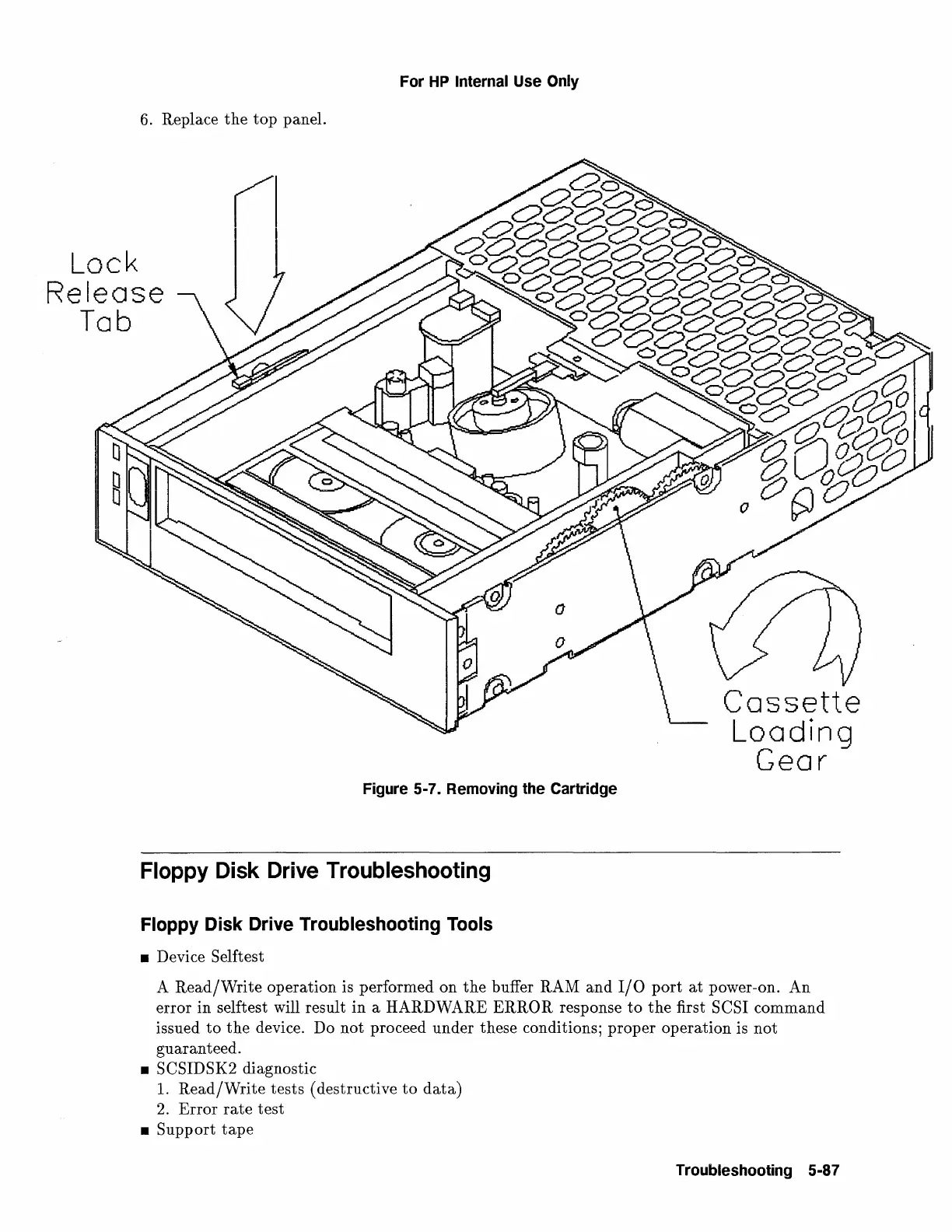

Figure 5-7. Removing the Cartridge
Floppy Disk Drive Troubleshooting
Floppy Disk Drive Troubleshooting Tools
• Device Selftest
Cassette
Loading
Gear
A Read/Write operation is performed on the buffer RAM and I/0 port at power-on. An
error in selftest will result in a HARDWARE
ERROR response to the first SCSI command
issued to the device. Do not proceed under these conditions; proper operation is not
guaranteed.
• SCSIDSK2 diagnostic
1. Read/Write tests (destructive to data)
2. Error rate test
• Support tape
Troubleshooting 5-87
