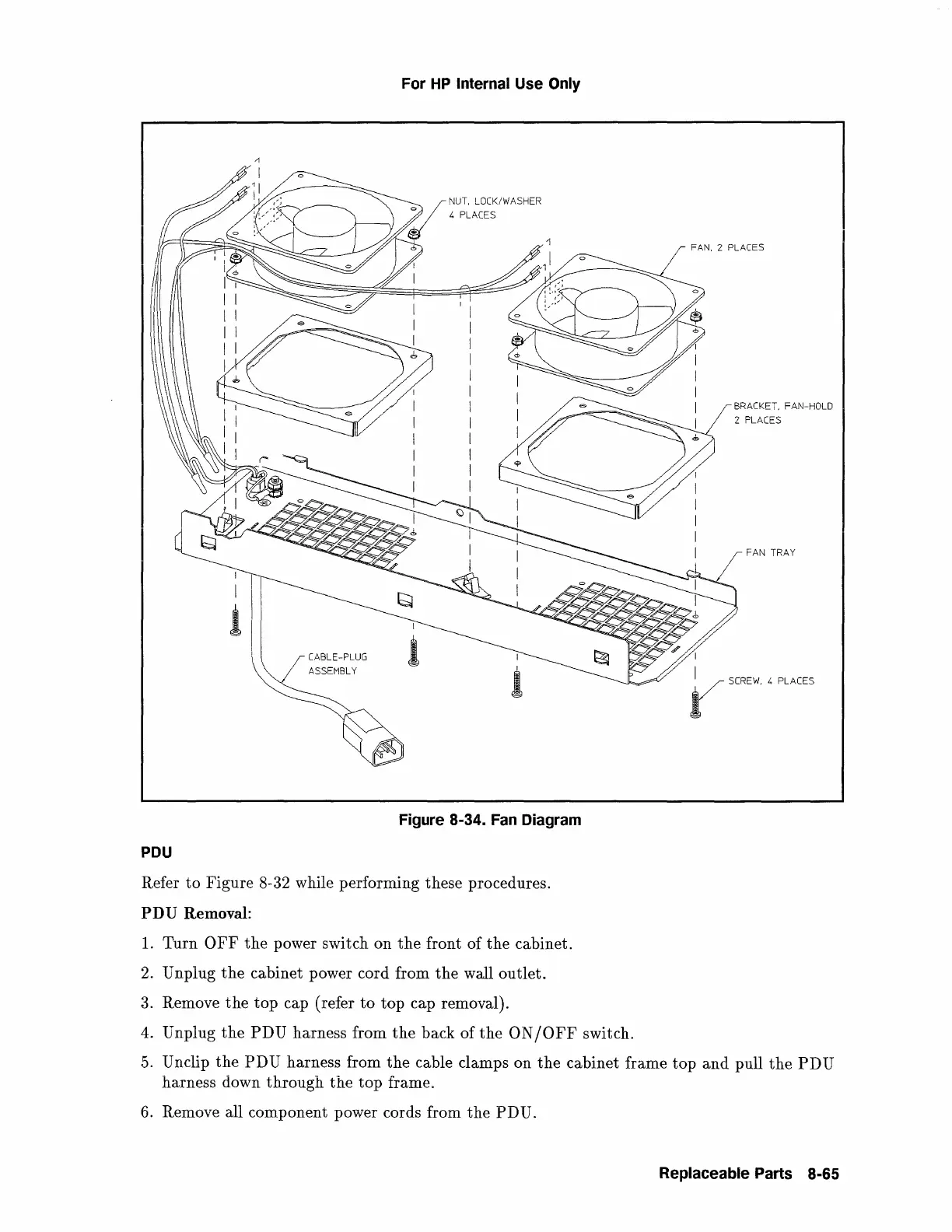

Figure 8-34. Fan Diagram
PDU
Refer to Figure 8-32 while performing these procedures.
PDU Removal:
1. Turn OFF the power switch on the front of the cabinet.
2. Unplug the cabinet power cord from the wall outlet.
3. Remove
the top cap (refer to top cap removal).
4. Unplug
the PDU harness from the back of the ON/OFF switch.
BRACKE~ FAN-HOLD
2 PLACES
I/ SCREW, 4 PLACES
I
5. Unclip the PDU harness from the cable clamps on the cabinet frame top and pull the PDU
harness down through the top frame"
6. Remove all component power cords from the PDU.
Replaceable Parts 8-65
