Remove Light Pipes
1. See Figure 8-26.
2. Gently press down on the locator tab at the front of the light pipe to release the light pipe
from
the chassis.
3. Slide the light pipe to the rear and then lift out of the chassis.
wbce030

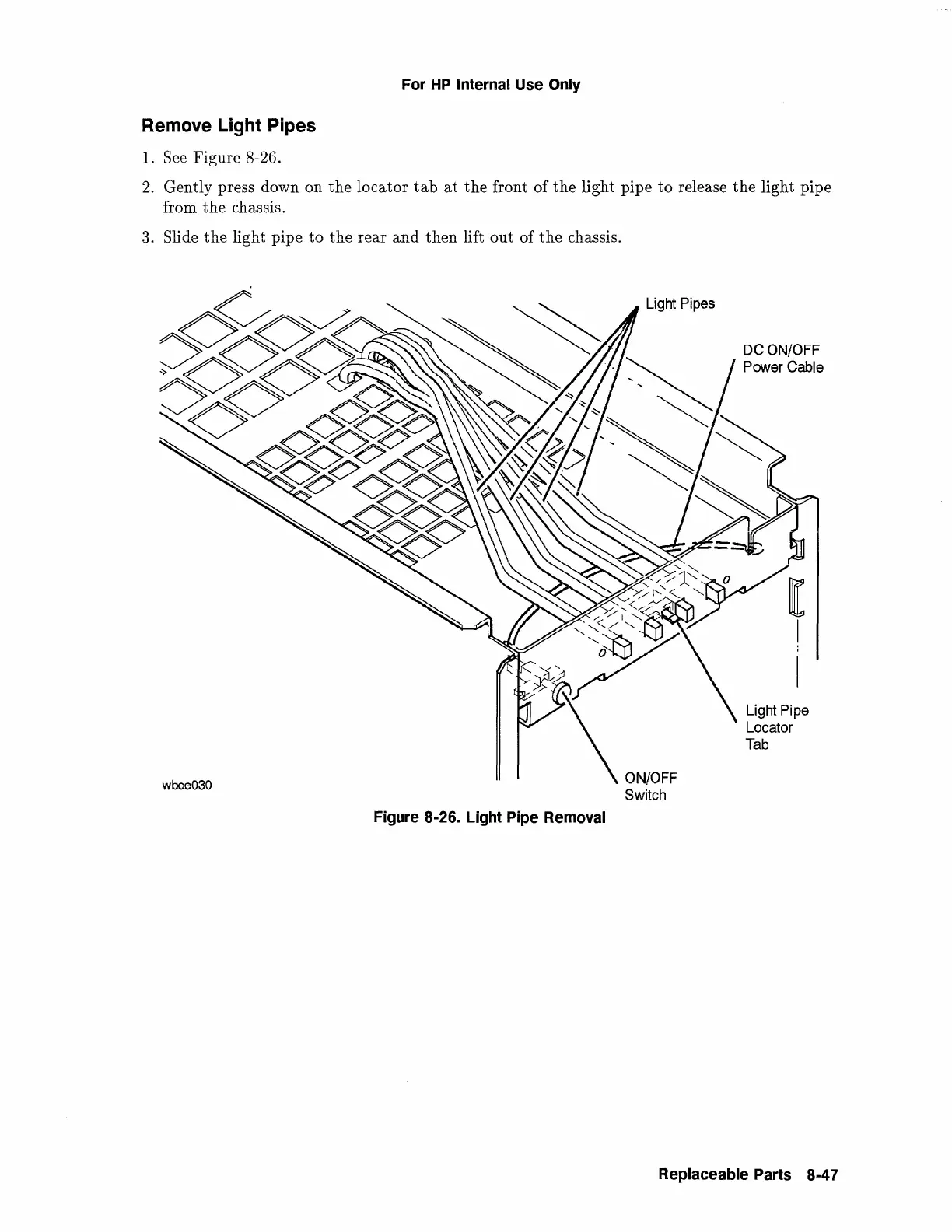

Figure 8-26. Light Pipe Removal
Light Pipes
Light Pipe
Locator
Tab
