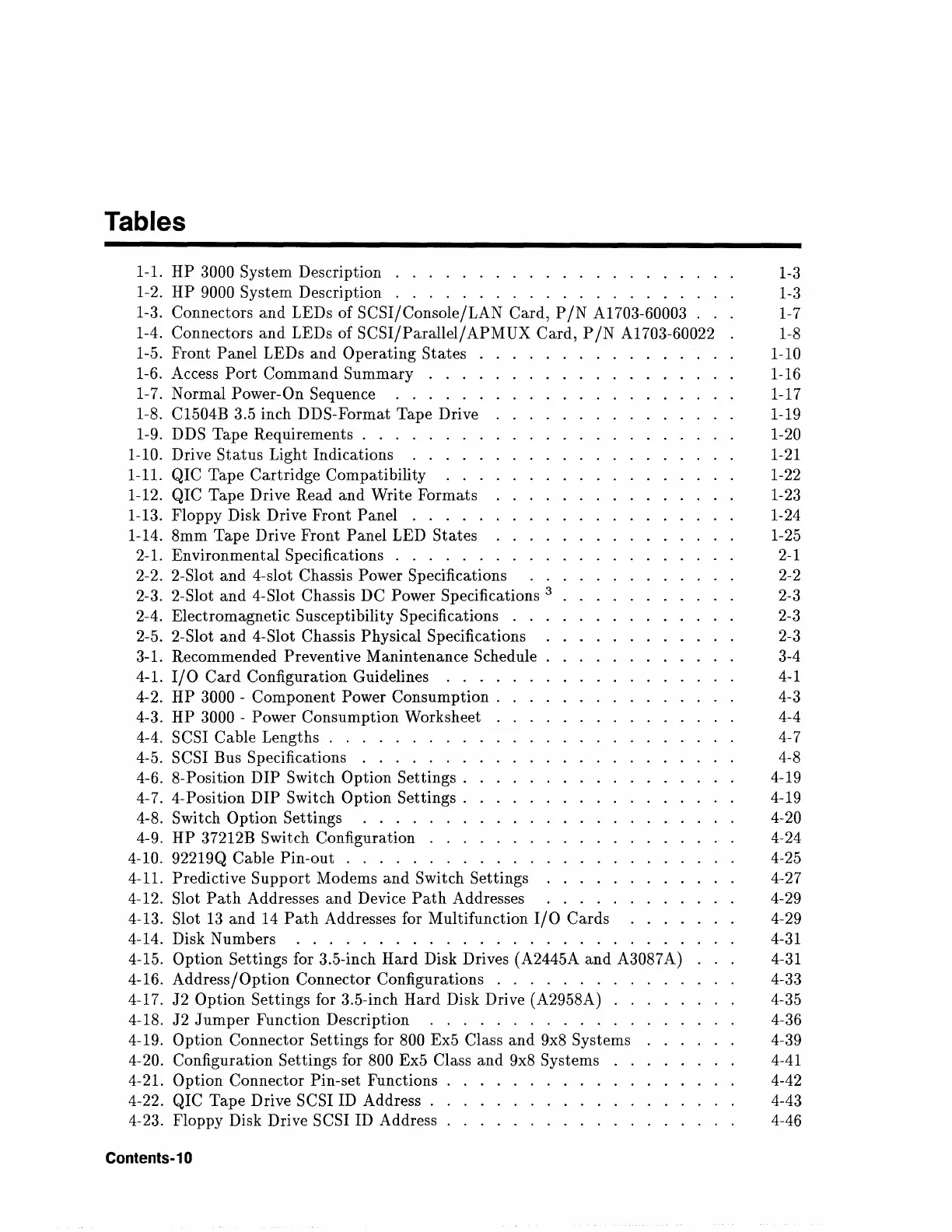

HP 3000 Series Handbook

Tables
1-1. HP 3000 System Description . . . . . . . . . . . . . . . . . . 1-3
1-2. HP 9000 System Description . . . . . . . . . . . . . . . . . . 1-3
1-3. Connectors and LEDs of
SCSI/Console/LAN Card, P /N A1703-60003 1-7
1-4. Connectors
and LEDs of SCSI/Parallel/ APMUX Card, P /N A1703-60022 1-8
1-5. Front
Panel LEDs and Operating States 1-10
1-6. Access Port Command Summary . . . . 1-16
1-7. Normal
Power-On Sequence . . . . . . 1-17
1-8. C1504B 3.5 inch DDS-Format Tape Drive 1-19
1-9. DDS Tape Requirements . . . . . 1-20
1-10.
Drive Status Light Indications . . . . . 1-21
1-11. QIC Tape Cartridge Compatibility 1-22
1-12. QIC Tape Drive Read and Write Formats 1-23
1-13. Floppy Disk Drive Front Panel . . . . . 1-24
1-14. 8mm Tape Drive Front Panel LED States 1-25
2-1. Environmental Specifications . . . . . .
2-1
2-2. 2-Slot and 4-slot Chassis Power Specifications 2-2
2-3. 2-Slot and 4-Slot Chassis DC Power Specifications
3
2-3
2-4. Electromagnetic Susceptibility Specifications . . 2-3
2-5. 2-Slot and 4-Slot Chassis Physical Specifications 2-3
3-1. Recommended Preventive Manintenance Schedule 3-4
4-1.
I/ 0 Card Configuration Guidelines . . . . 4-1
4-2. HP 3000 - Component Power Consumption . 4-3
4-3. HP 3000 - Power Consumption Worksheet 4-4
4-4. SCSI Cable Lengths . . . . . . . . . 4-7
4-5. SCSI Bus Specifications . . . . . . . 4-8
4-6. 8-Position DIP Switch Option Settings . 4-19
4-7.
4-Position DIP Switch Option Settings . 4-19
4-8. Switch Option Settings . . . . 4-20
4-9. HP 37212B Switch Configuration . . . 4-24
4-10. 92219Q Cable Pin-out . . . . . . . . 4-25
4-11. Predictive Support Modems and Switch Settings 4-27
4-12. Slot Path Addresses and Device Path Addresses 4-29
4-13.
Slot 13 and 14 Path Addresses for Multifunction I/0 Cards 4-29
4-14. Disk Numbers . . . . . . . . . . . . . . . . . . . . 4-31
4-15. Option Settings for 3.5-inch Hard Disk Drives (A2445A and A3087 A) 4-31
4-16. Address/Option Connector Configurations . . . . . . . 4-33
4-17. J2 Option Settings for 3.5-inch Hard Disk Drive (A2958A) . . 4-35
4-18. J2 Jumper Function Description . . . . . . . . . . . . . 4-36
4-19.
Option Connector Settings for 800 Ex5 Class and 9x8 Systems 4-39
4-20. Configuration Settings for 800 Ex5 Class and 9x8 Systems 4-41
4-21.
Option Connector Pin-set Functions 4-42
4-22.
QIC Tape Drive SCSI ID Address . 4-43
4-23. Floppy Disk Drive
SCSI ID Address 4-46
Contents-1 0
