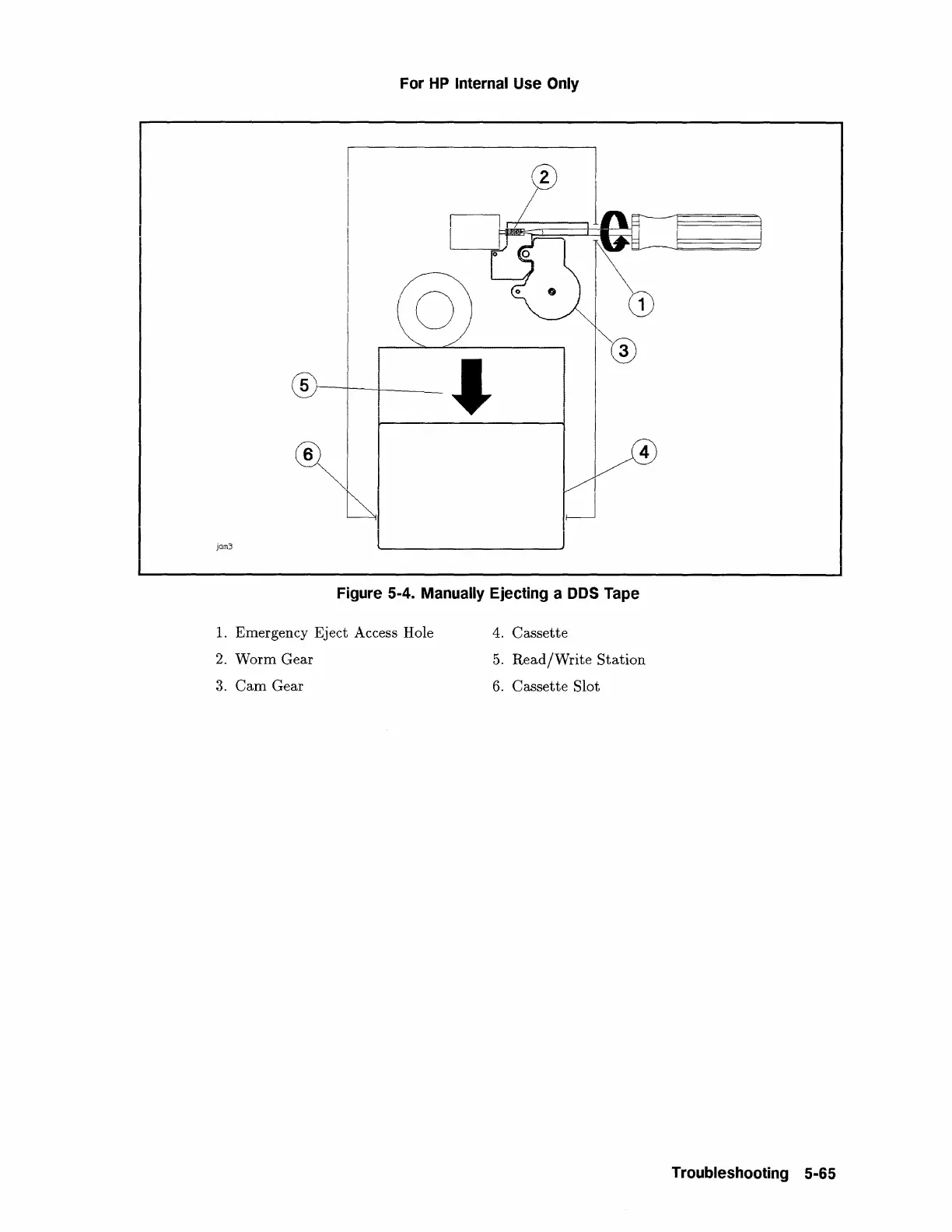

Figure 5-4. Manually Ejecting a DDS Tape
1. Emergency Eject Access Hole
4. Cassette
2. Worm Gear
5. Read/Write Station
3. Cam Gear
6. Cassette Slot
