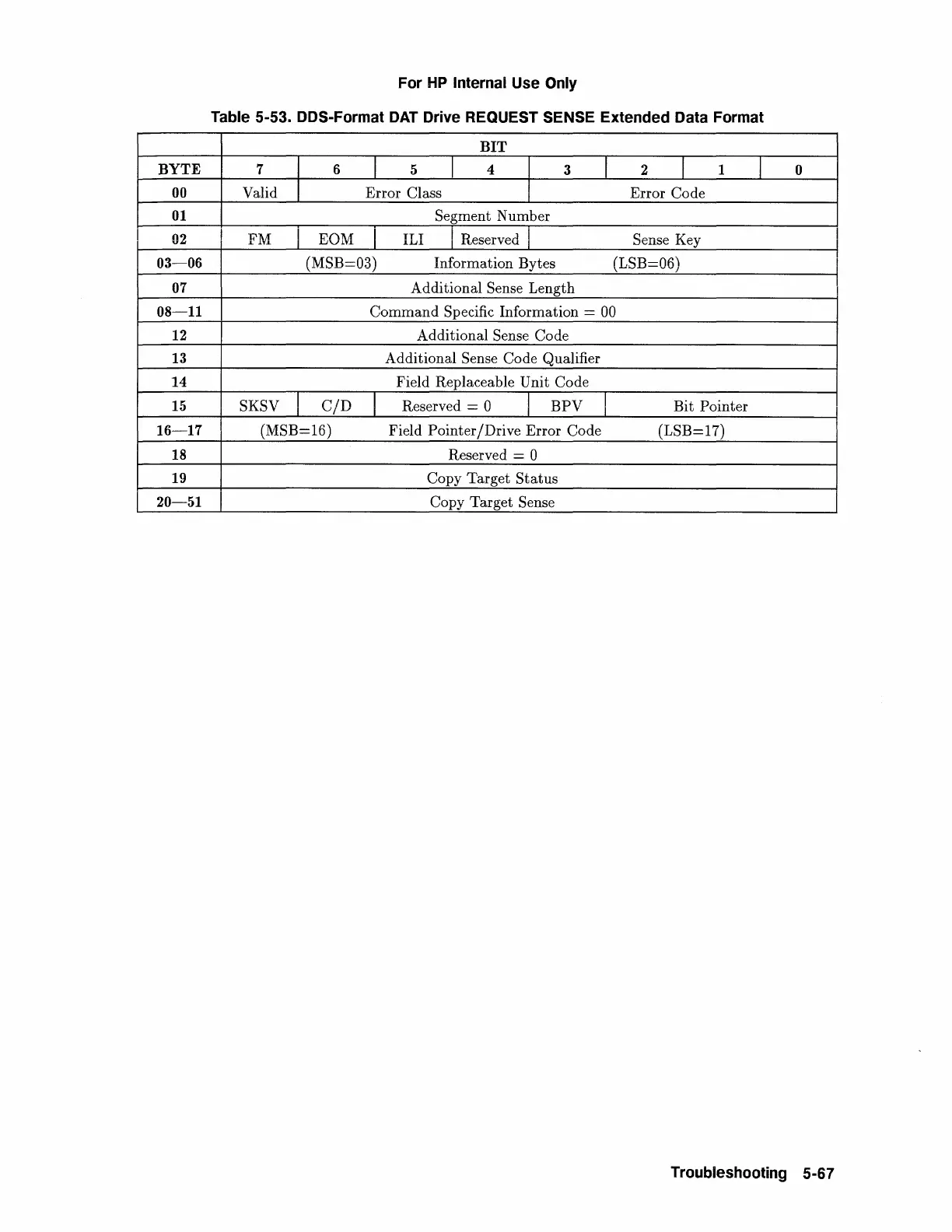

Table 5-53. DDS-Format OAT Drive REQUEST SENSE Extended Data Format
BIT
BYTE
7
6
I
5
I
4
3
I
2
I
1
I
0
00 Valid Error Class
Error Code
01
Segment Number
02
FM EOM
I
ILl I Reserved Sense Key
03-06
(MSB=03)
Information Bytes
(LSB=06)
07
Additional Sense Length
08-11
Command Specific Information = 00
12 Additional Sense Code
13
Additional Sense Code Qualifier
14 Field Replaceable Unit Code
15
SKSV
C/D
I
Reserved= 0 BPV
I
Bit Pointer
16-17
(MSB=16)
Field Pointer /Drive Error
Code
(LSB=17)
18
Reserved= 0
19
Copy Target Status
20-51
Copy Target Sense
