HP 3000 Series Handbook

For HP Internal Use Only
1. Turn off the cabinet power. Refer to the power off procedures in Chapter 5.
2. Open the rear door.
3. disconnect the fan power cord from the PDU.
4. Remove the one mounting screw at the top rear cabinet frame bar.
5. Grasp the fan assembly from the bottom and pull toward the rear of the cabinet.
6. The fan assembly should release from the cabinet, and can be lowered out of the cabinet.
Fan Assembly Replacement:
1. Raise the fan assembly into the rear cabinet frame opening.
2. Slide the fan assembly forward engaging the tabs on the fan assembly into the slots in the
cabinet frame.
3. Insert
the mounting screw. Tighten the screw.
4. Connect the fan power cord from the fan assembly to the PDU.
5. The rear door can now be closed and the system powered up.
Q Q
FAN ASSEMBLY
'\_SCREW. TDRX

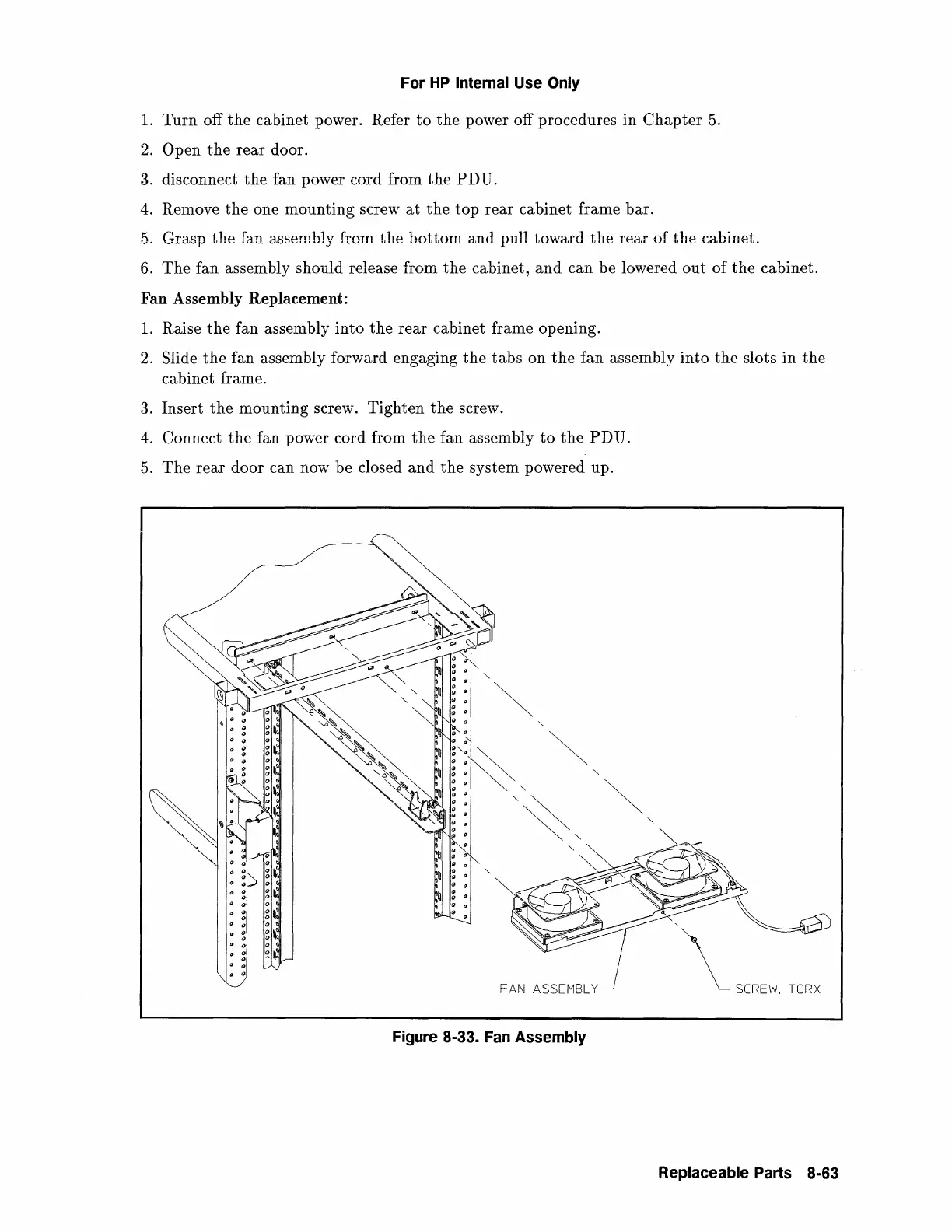

Figure 8-33. Fan Assembly
Replaceable
Parts 8-63
